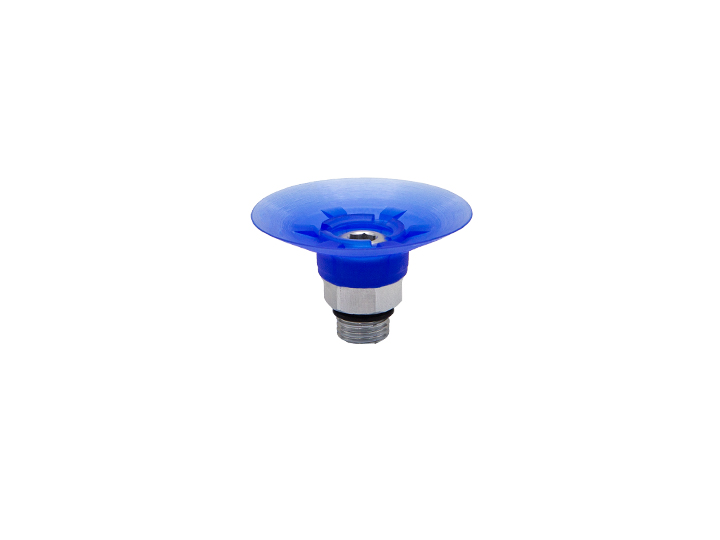

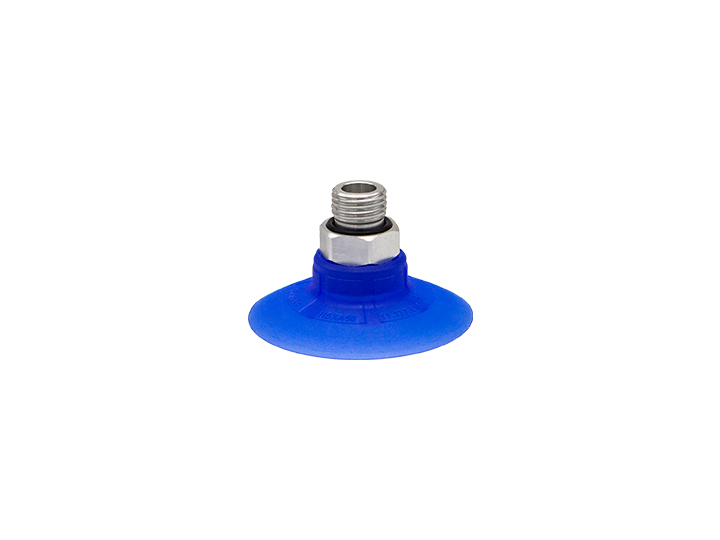

• Flat suction cup (circular)

  • * Circular flat suction cups are suitable for cardboard box handling and packaging machinery.
    * Suitable for handling cardboard boxes and cardboard packaging from the top or side.
    * Suitable for stacking and unstacking.
    * The suction cup is sturdy and wear-resistant, with excellent sealing performance, suitable for high load situations.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Product features
    The highly adaptable sealing lip provides the best sealing for cardboard boxes and hard packaging
    High intrinsic stability of suction cups during dynamic processes
    Due to the high suction of the support ribs in the suction area, the maximum effective diameter can be achieved
    Elastic HX material minimizes wear (service life is about 3 times longer than NBR)

    Product advantages
    Bottom with supporting filter structure
    Complete size specifications
    Handling thin-walled workpieces will not cause permanent deformation
    Suitable for workpieces of various sizes and shapes

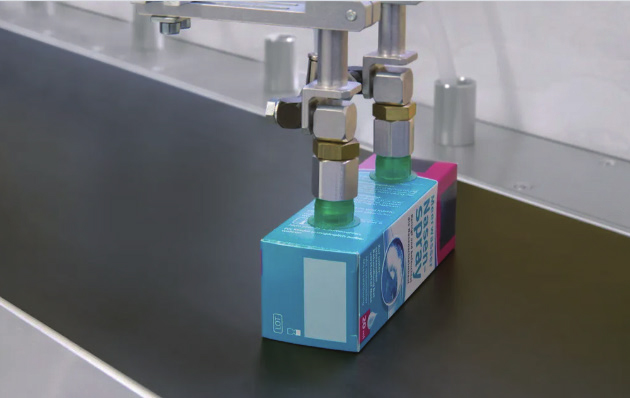

    Example of HSXA suction cup handling and packaging of workpieces

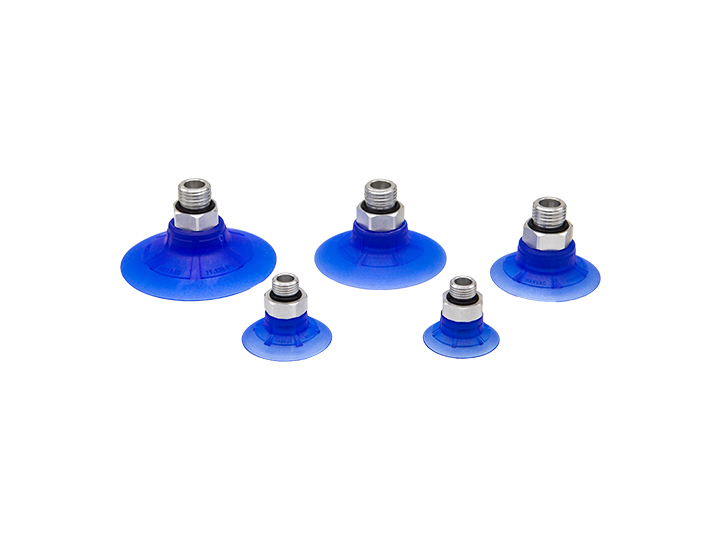

    Product mix

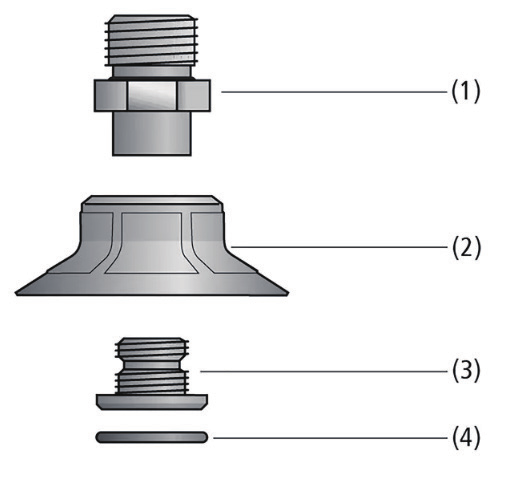

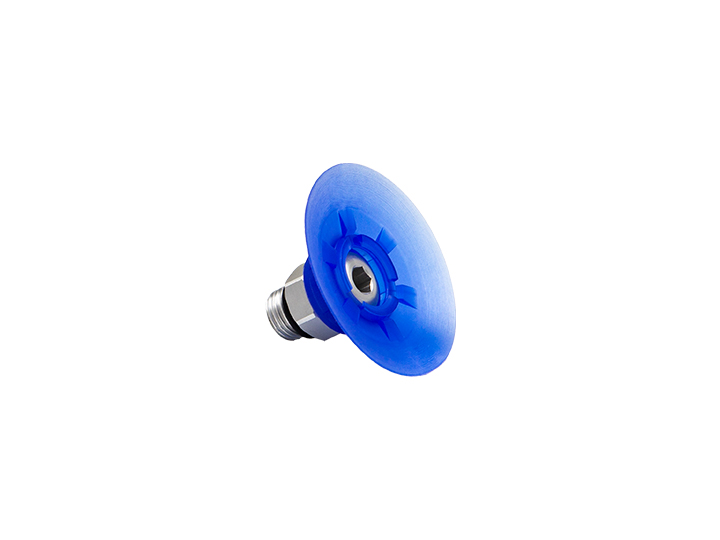

    Circular flat suction cup HSXA (2), with soft and flexible sealing lips and support screws on the suction surface made of wear-resistant material elastomer HX.
    Models with a diameter of up to 30 mm have plug-in connecting elements for quick replacement of suction cups.
    Starting from a diameter of 40 mm, with 2-piece connecting elements: composed of machine side components (1) and suction side components (3).
    Clamp filter (4) serves as a pre filter (filter aperture 250 μ M).
    All connecting components with external threads are equipped with integrated sealing devices on the fastening threads.

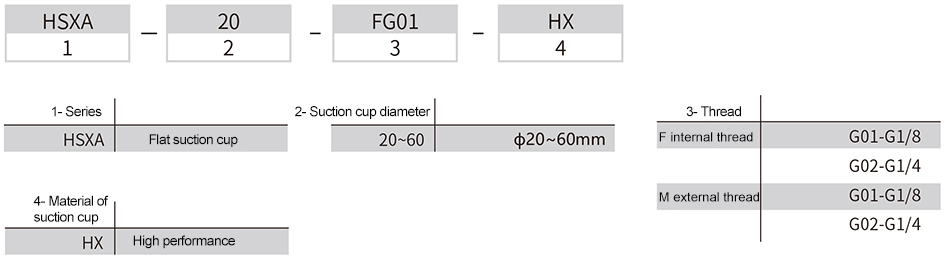

    Ordering no

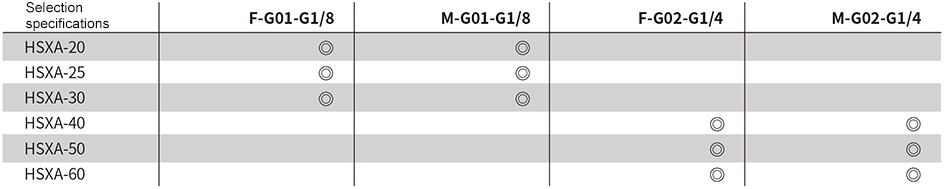

    Model selection

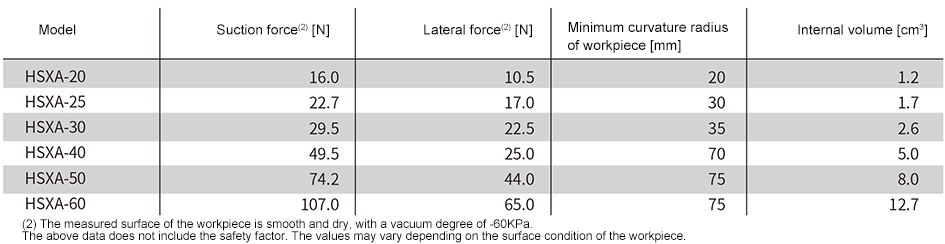

    Technical data

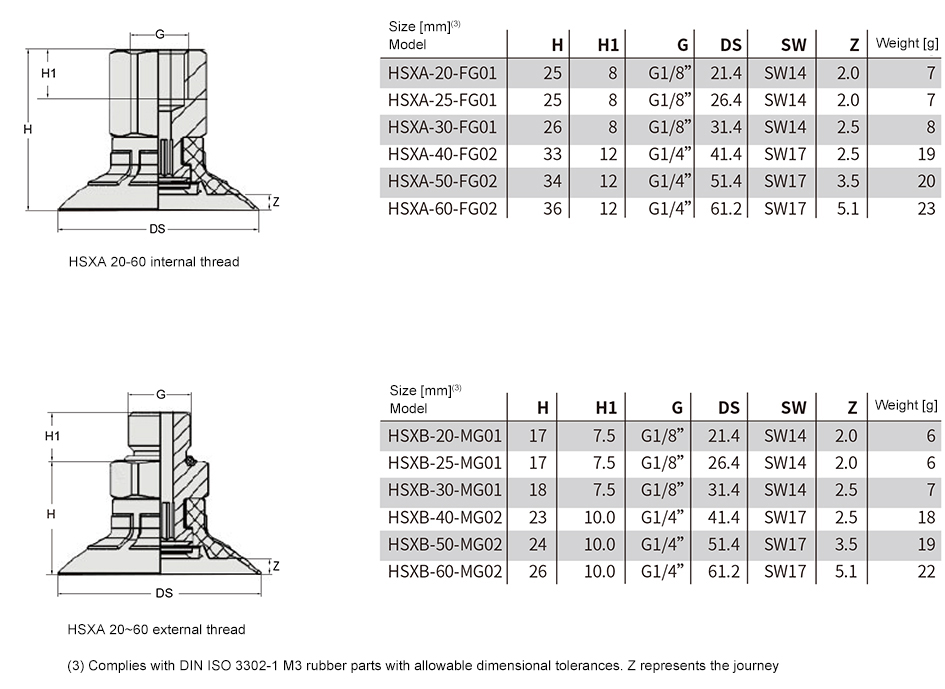

    Design data
