  • HSXB series

  • * Suction cups achieve optimal sealing on cardboard boxes and hard packaging.
    * The high internal stability of suction cups during dynamic processes.
    * The spacing element between the sealing lip and the fold can prevent the suction cup from moving.
    * The effective inhalation area is large.
    * The elastic HX material minimizes wear to the greatest extent possible (with a service life approximately three times longer than NBR).

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Suction cups achieve optimal sealing on cardboard boxes and hard packaging.
    The high internal stability of suction cups during dynamic processes.
    The spacing element between the sealing lip and the fold can prevent the suction cup from moving.
    The effective inhalation area is large.
    The elastic HX material minimizes wear to the greatest extent possible (with a service life approximately three times longer than NBR).

    Product mix
    (1) Aluminum alloy joint
    (2) Ripple suction cup

    Product advantages
    1.5 fold corrugated suction cup.
    Internally equipped with a supporting filtering structure.
    Complete size specifications.
    Easy to adhere to workpieces with uneven surfaces and have a certain buffering effect. Handling thin-walled workpieces can prevent permanent deformation.
    Suitable for workpieces of various sizes and shapes.

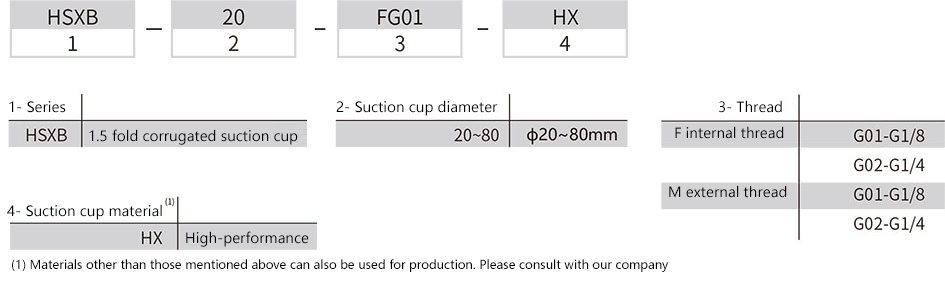

    Ordering no

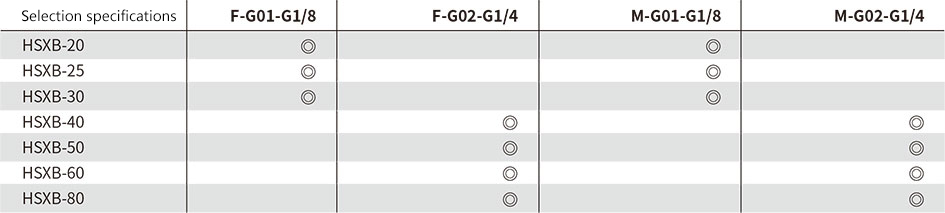

    Selection specifications

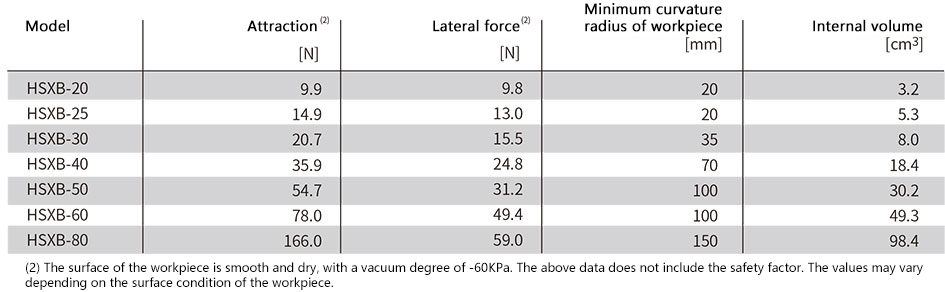

    Technical data

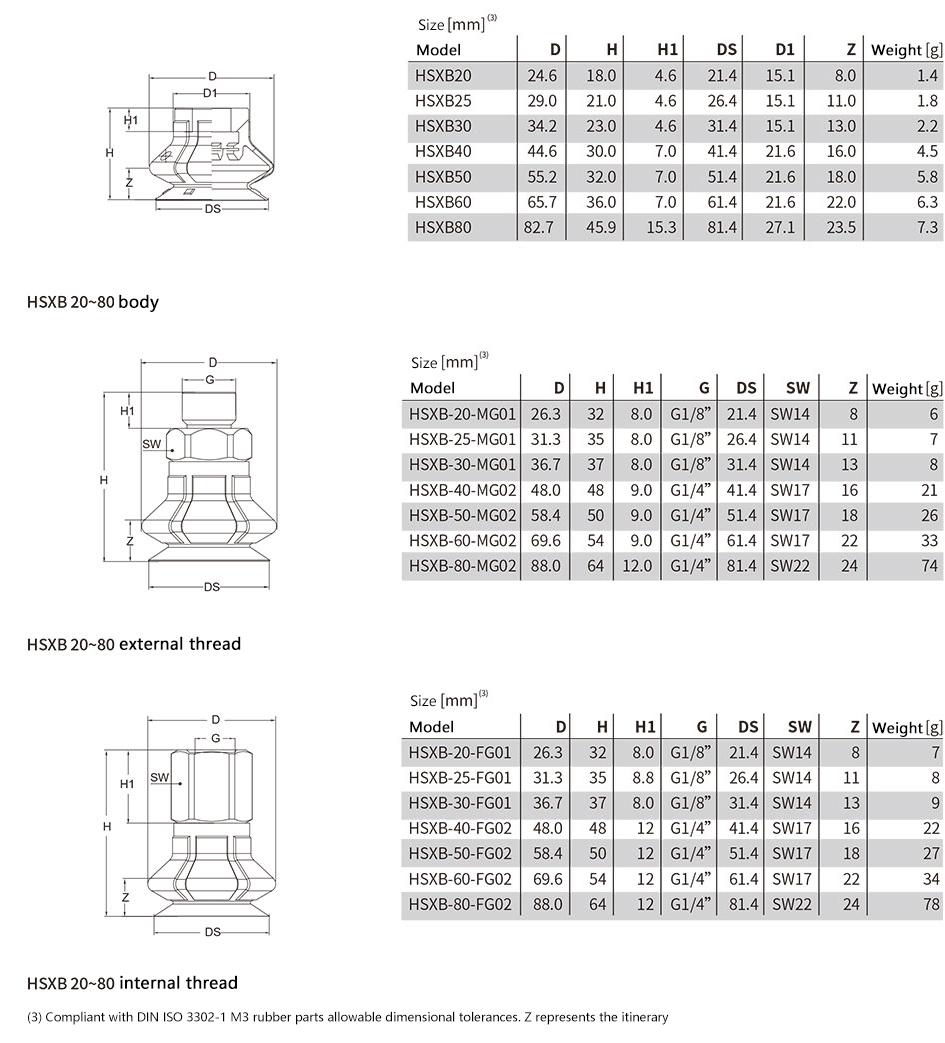

    Design data


Prev：Flat suction cup (circular)
Next：Corrugated suction cup (skirt edge)
