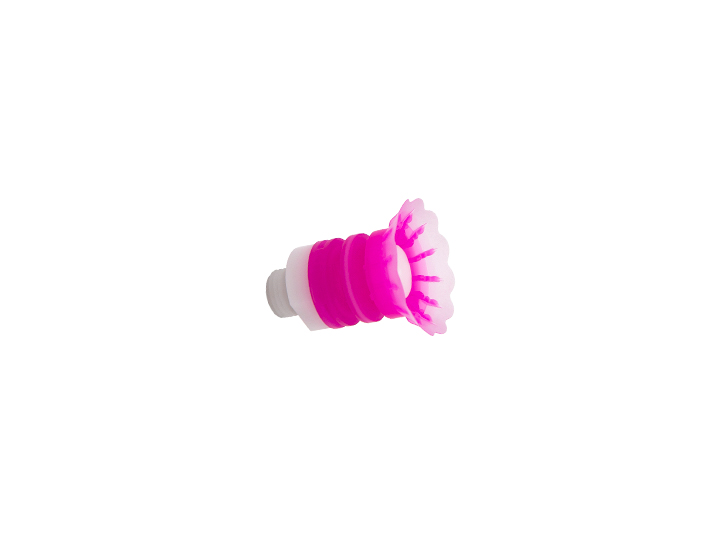

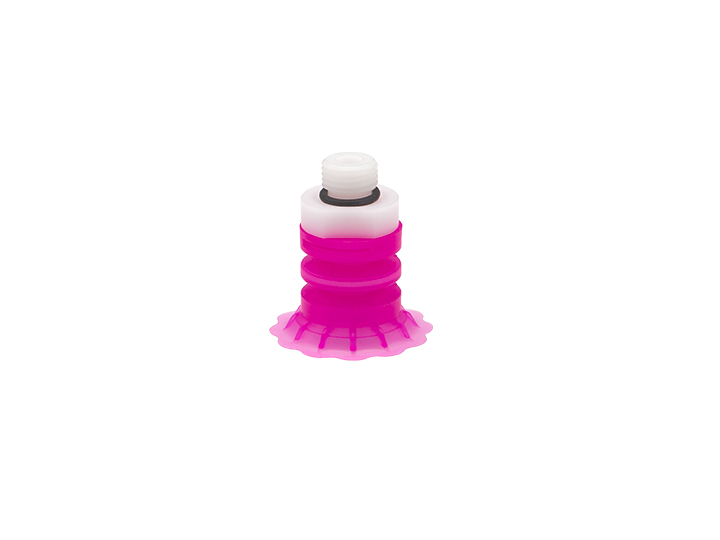

Corrugated suction cup (skirt edge)
* Reinforced main body, 1.5x, can achieve secure hold and stability even at high speeds.
* High rated flow rate can achieve high flow rate and short cycle time.
* Circular corrugated suction cup, 1.5x, very flexible for handling bags and other types of packaging containing liquids, solids or powders, as well as packaging that is not very full.

Contact: +491727628103

Introduce
Design
Parameter

Reinforced main body, 1.5x, can achieve secure hold and stability even at high speeds.
High rated flow rate can achieve high flow rate and short cycle time.
Circular corrugated suction cup, 1.5x, very flexible for handling bags and other types of packaging containing liquids, solids or powders, as well as packaging that is not very full.

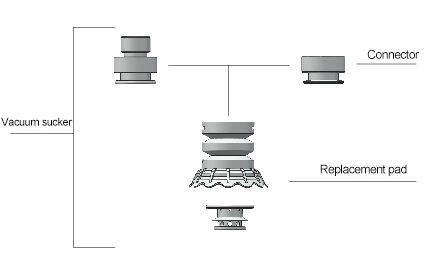

Product mix
1.5 fold skirt edge suction cup, soft and flexible sealing lip, with segmented flow sheets and integrated bag stabilizer.
Install using connecting components; alternatively, all externally threaded connecting components can be directly connected to the pipeline through hose clamps and equipped with integrated sealing rings.
Optional plug-in filter for pre filter.

Product advantages
The shaft diameter is very large and the flow rate is high.
Specially reinforced corrugated pipes enhance stability.
Silicone si that meets fda standards allows direct contact with food.
The integrated bag stabilizer prevents the film and film from being pulled in.

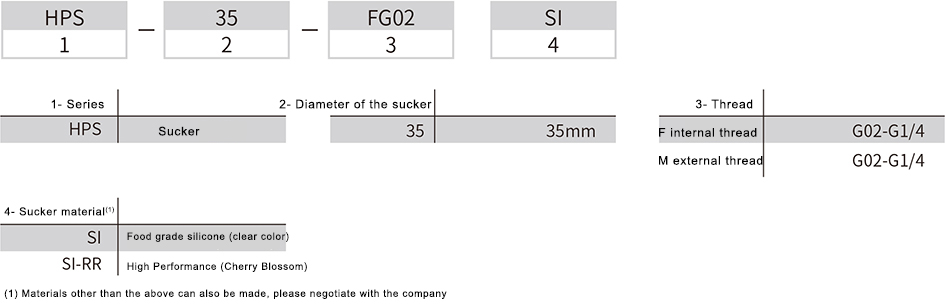

Ordering no

Selection specifications

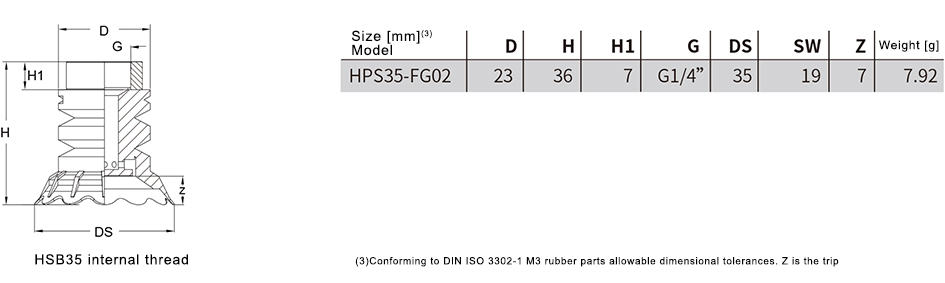

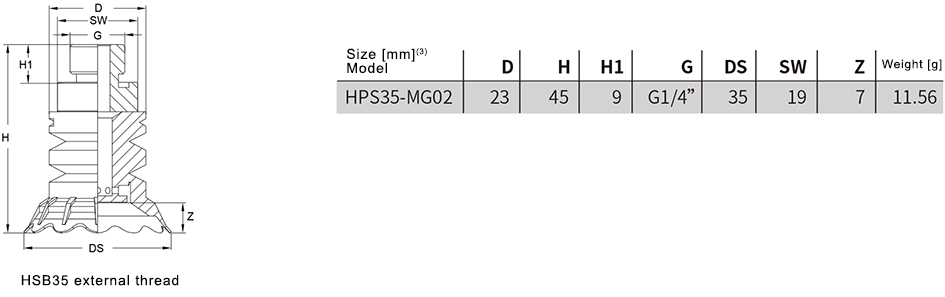

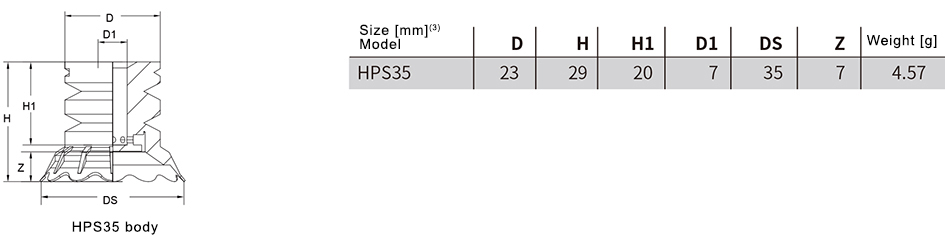

Design data
