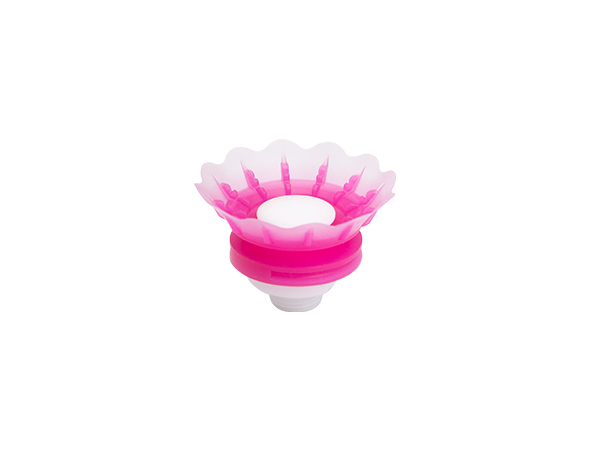

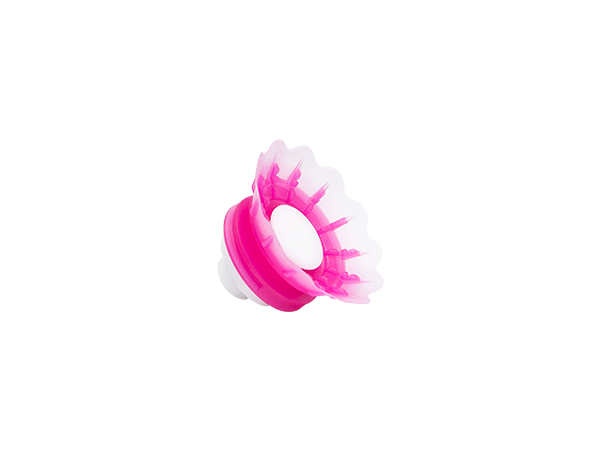

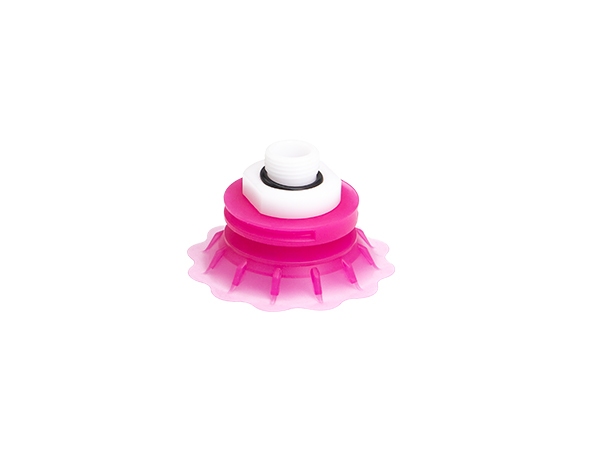

• Corrugated suction cup (skirt edge)

  • * Ripple suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
    * The flat and gradually thinner lip edge safely and reliably picks up packaging bags containing solids, powders or liquids and has exceptional sealing performance for flexible operations such as grabbing packaging bags.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Ripple suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
    The flat and gradually thinner lip edge safely and reliably picks up packaging bags containing solids, powders or liquids and has exceptional sealing performance for flexible operations such as grabbing packaging bags.
    Produktmix
    1.5 pleated skirt edge suction cup, soft and flexible sealing lip, with segmented flow sheets and integrated bag stabilizer.

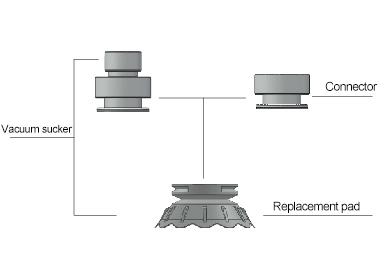

    installation with connection components; Alternatively, all externally threaded connection components can be connected directly to the pipeline via hose clamps and equipped with integrated sealing rings.
    Optional plug-in filter for pre-filters.

    Produktvorteile
    The suction cup does not crease or stick when the film is absorbed.
    Suitable for use with vacuum pumps, vacuum blowers and multi-stage vacuum generators.
    Food grade silicone material, can come into direct contact with food.

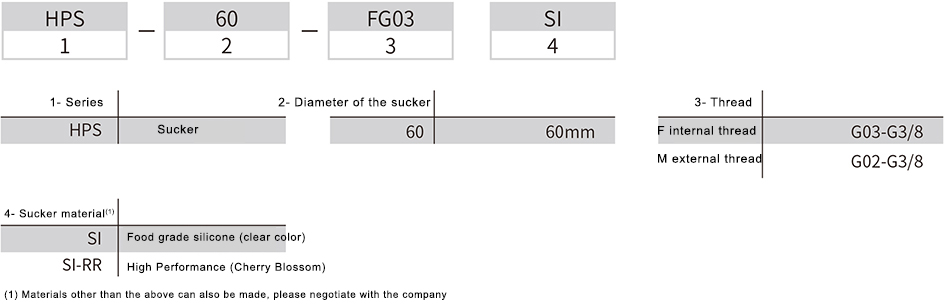

    Ordering no



    Selection specifications



    Technische daten

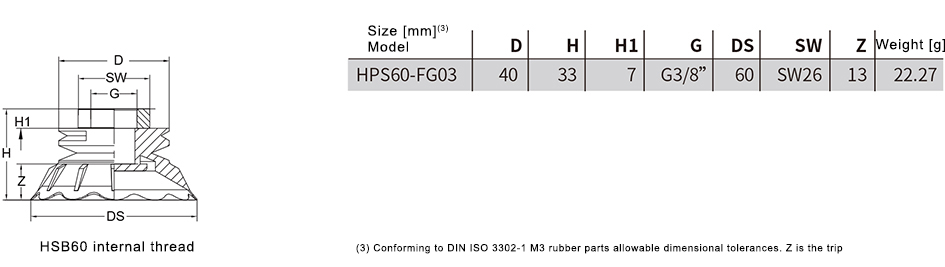

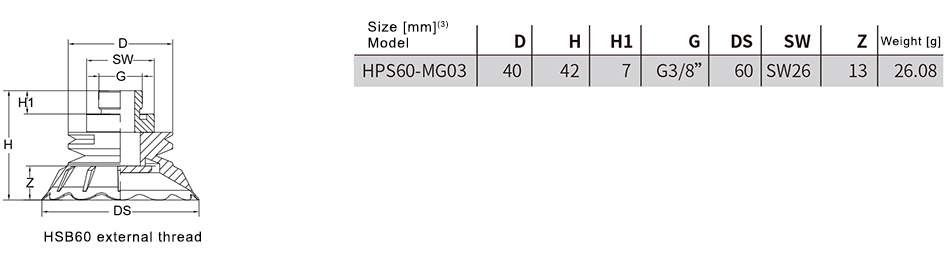

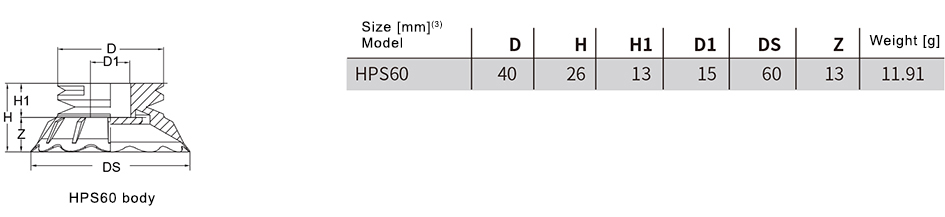

    Design data






    (3) Corresponds to the rubber parts din iso 3302-1 m3 with permissible dimensional tolerances. Z stands for the journey.
