• Corrugated suction cup (skirt edge)

  • * Thin, large taper, skirt edge corrugated suction cup with splitter blades.
    * Extremely soft and flexible skirt edge sealing.
    * Body and corrugated reinforcement design.
    * Larger diameter increases vacuum flow rate.
    * Made of silicone that meets FDA standards and equipped with suction cup fixing pads.
    * Built in suction cup fixing gasket (yellow).

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Thin, large taper, skirt edge corrugated suction cup with splitter blades.
    Extremely soft and flexible skirt edge sealing.
    Body and corrugated reinforcement design.
    Larger diameter increases vacuum flow rate.
    Made of silicone that meets FDA standards and equipped with suction cup fixing pads.
    Built in suction cup fixing gasket (yellow).


    Product mix

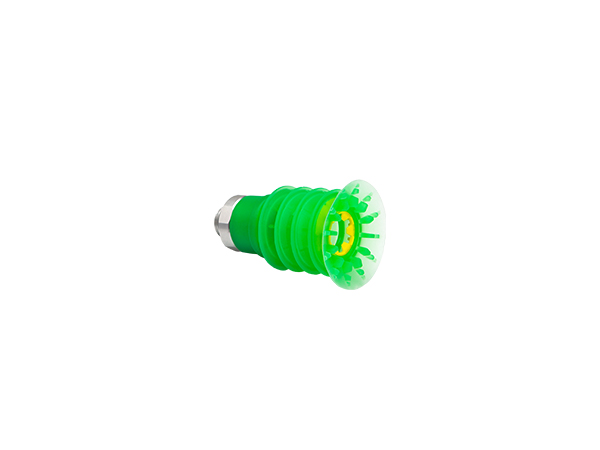

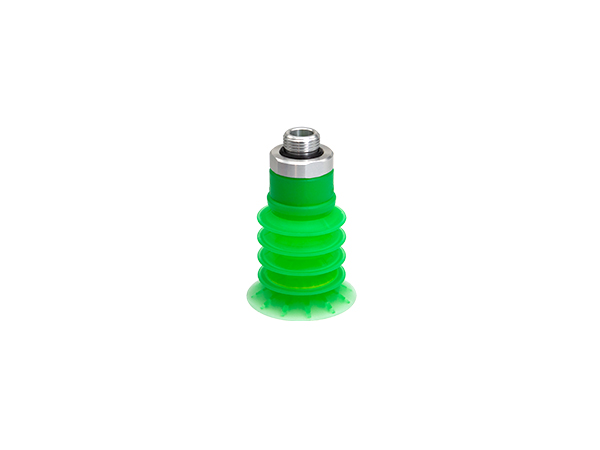

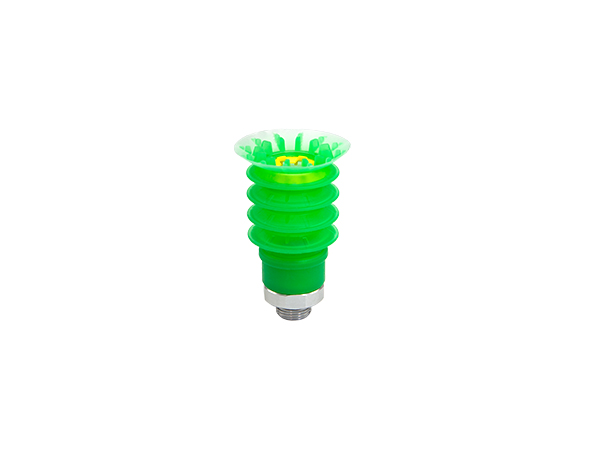

    The corrugated suction cup HPE4 comes with a 4.5 fold (1) and a soft and flexible sealing lip, with segmented flow sheets and integrated bag stabilizers.
    Very large shaft diameter, suitable for high volume flow.
    Specially reinforced suction bellows for increased stability (2).
    Install by connecting components (3); Alternatively, connect directly to the 3/8 "- or 1/4" pipe on the machine side and install using a hose clamp.

    Product advantages
    It has extraordinary sealing performance in grasping flexible workpieces such as packaging bags.
    The suction effect of the bag is excellent, even in cases of large wrinkles, low filling rate, or rotational motion.
    Even under high-speed working conditions, it can be reliably absorbed and exceptionally stable; The workpiece has no shaking.
    Suitable for use with vacuum pumps, vacuum blowers, and multi-stage vacuum generators.
    Can come into direct contact with food and be used in the food industry.
    Suction cup fixing gasket; Even soft plastic film (LDPE) will not be sucked into the suction cup.
    Reliable absorption of ultra-thin PE and PP films with a thickness as thin as 30μm.

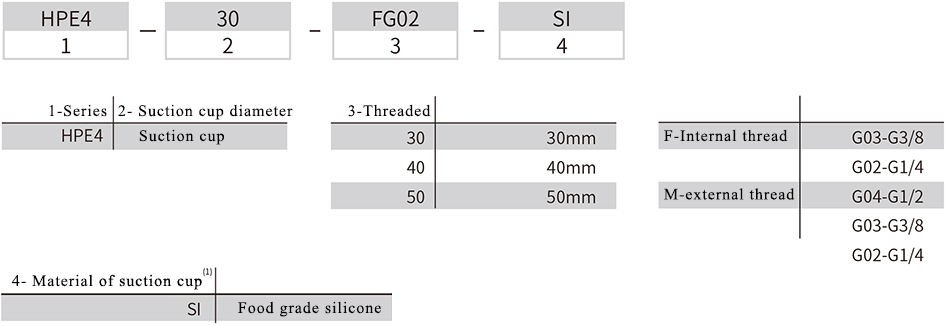

    Ordering no
    (1) Materials other than the above can also be produced. Please negotiate with our company

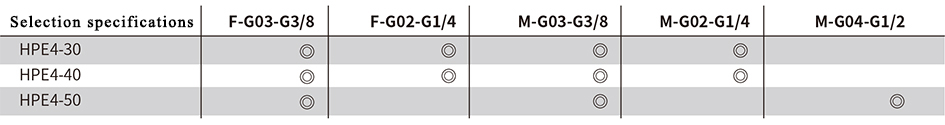

    Selection specifications

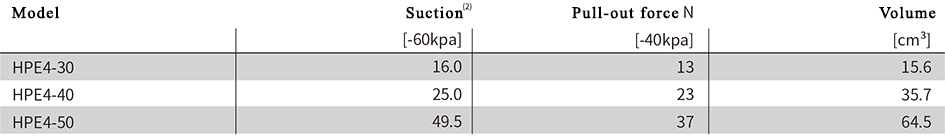

    Technical data
    (2) The vacuum degree is -60KPa, and the above data does not include the safety factor. The values may vary depending on the surface condition of the workpiece.

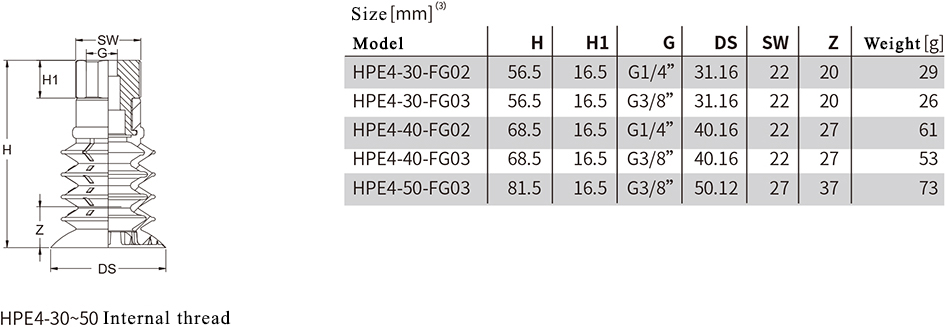

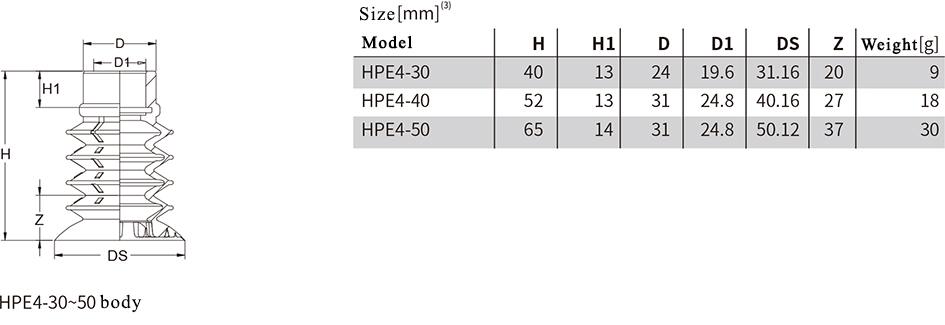

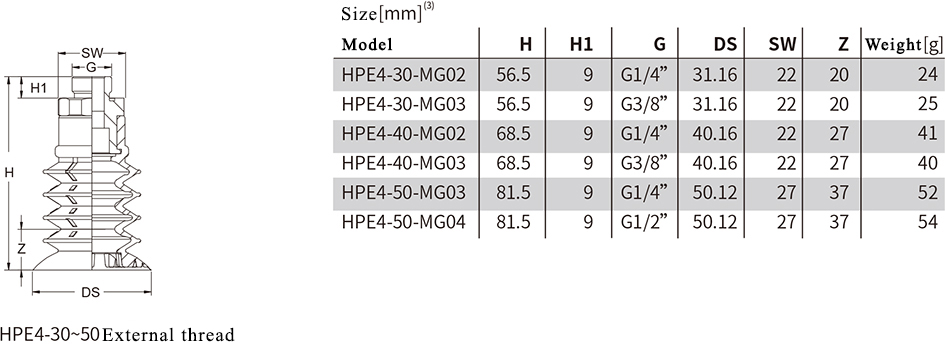

    Design data






    (3) Complies with DIN ISO 3302-1 M3 rubber parts with allowable dimensional tolerances. Z represents the journey
