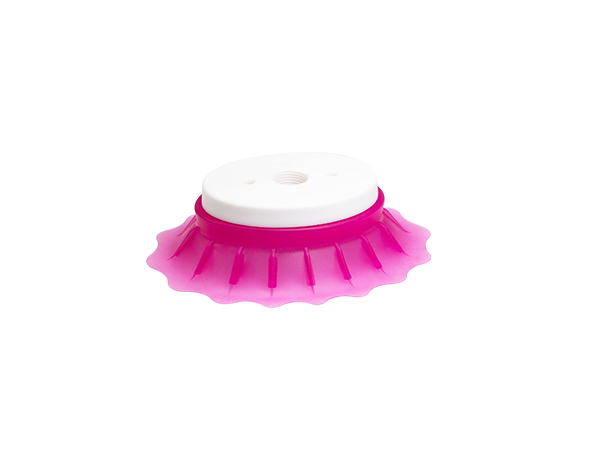

Corrugated suction cup (skirt edge)
* Ripple suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
* Good buffering performance and strong suction when in contact with workpieces.
* The contraction stroke of the suction cup is long.

Contact: +491727628103

Introduce
Design
Parameter

Ripple suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
Good buffering performance and strong suction when in contact with workpieces.
The contraction stroke of the suction cup is long.

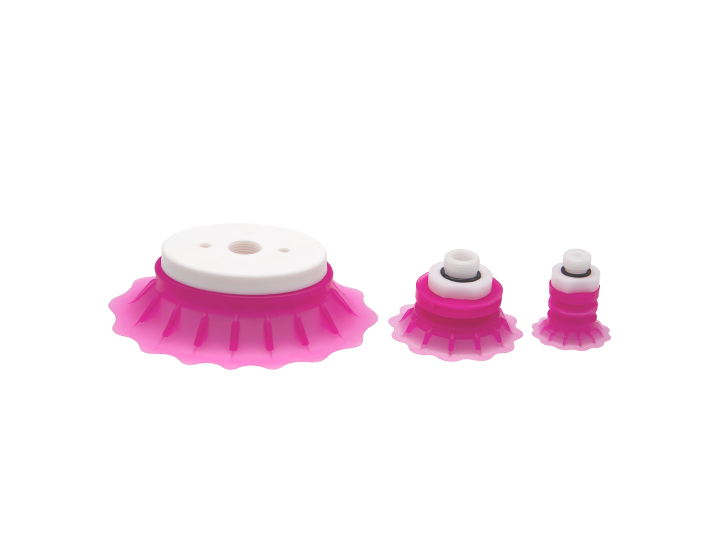

Product mix
Ripple suction cups seal thin lips with flexibility and flexibility.
The specially developed corrugated board structure has a stronger stability.
Installation by plug connectors. It can also be installed on a 3/8 "gas pipe", and all external threaded connections are equipped with o-rings fixed with pipe clamps.

Product advantages
Has strong adaptability to curved surfaces and uneven workpieces.
Handling thin-walled workpieces does not cause permanent deformation.
The wavy is flexible and flexible, and the tight lip is soft and tapered.
Waterproof, heat resistant and low temperature resistant are the unique advantages of the product.

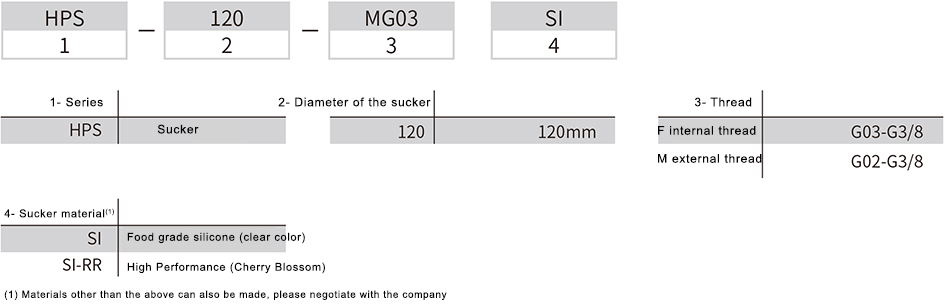

Ordering no

Selection specifications

Technical data

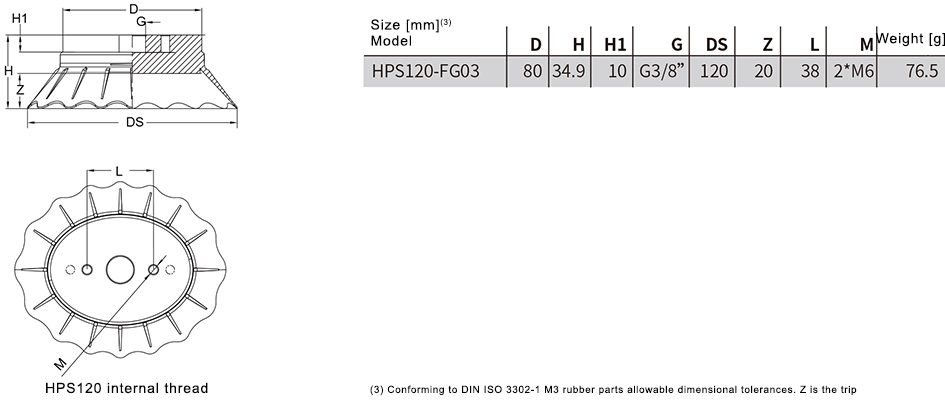

Design data
