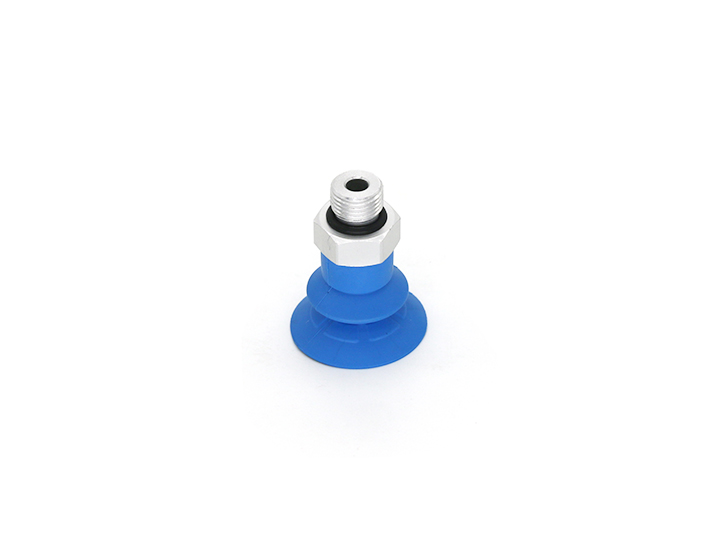

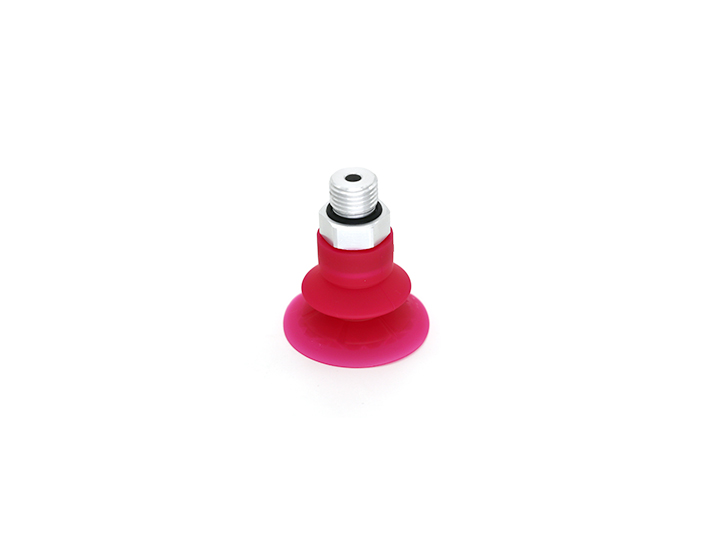

Corrugated suction cup (circular)
* Flexible, thin sealing lip and stable support surface, suitable for particularly unstable working parts.
* Due to good vacuum distribution, safety components are handled.
* Choose a large number of materials to meet various requirements (food safety, chemical resistance, temperature resistance)

Contact: +491727628103

Introduce
Design
Parameter

Product advantages
Flexible, thin sealing lip and stable support surface, suitable for particularly unstable work parts.
Due to good vacuum distribution, safe handling of components.
Choose a large number of materials to meet different requirements (food safety, chemical resistance, temperature resistance).

Product mix
The suction cup and the thin and flexible sealing lip comprise a flat suction cup hfa (1) or a corrugated suction cup hfb1.5 fold (2) and a connecting element (3).

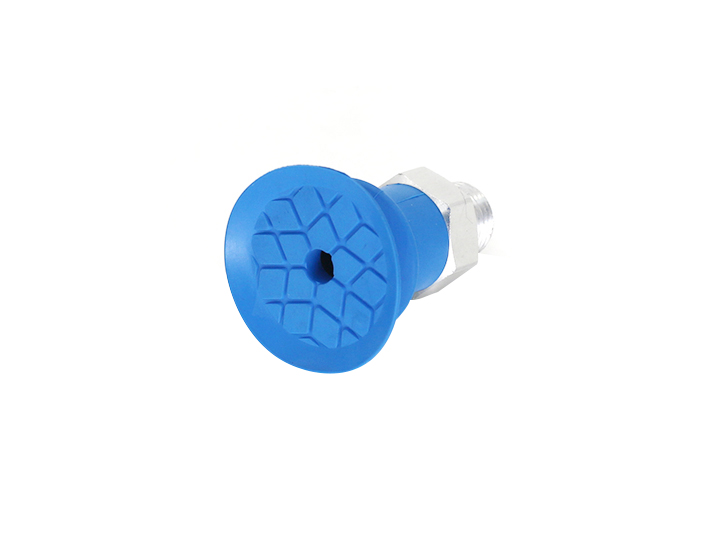

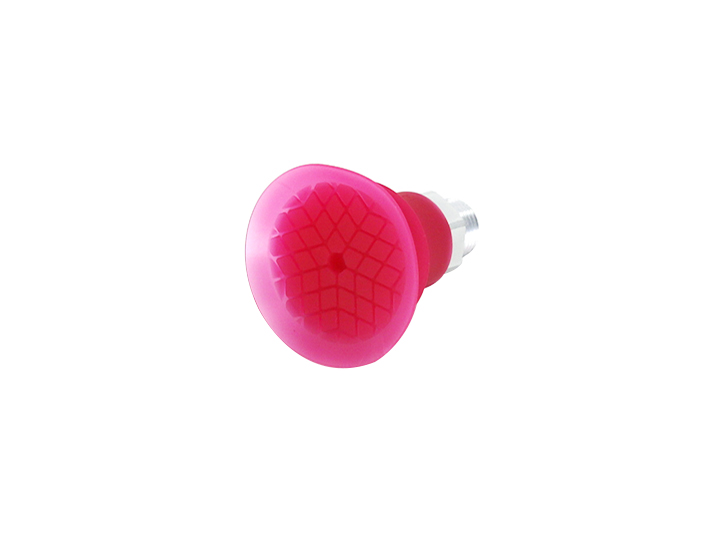

The inner support surface has a honeycomb structure and excellent vacuum distribution.
The suction area (+) ranges from 10 millimeters to 40 millimeters.

Produktvorteile
Balance the internal and external pressure of the vacuum gripper and release the product quickly.
When handling non-breathable workpieces, an energy-saving effect is created.
Any installation position, suitable for tight spaces.

Hfb suction cup that handles the foil surface of the mobile phone.

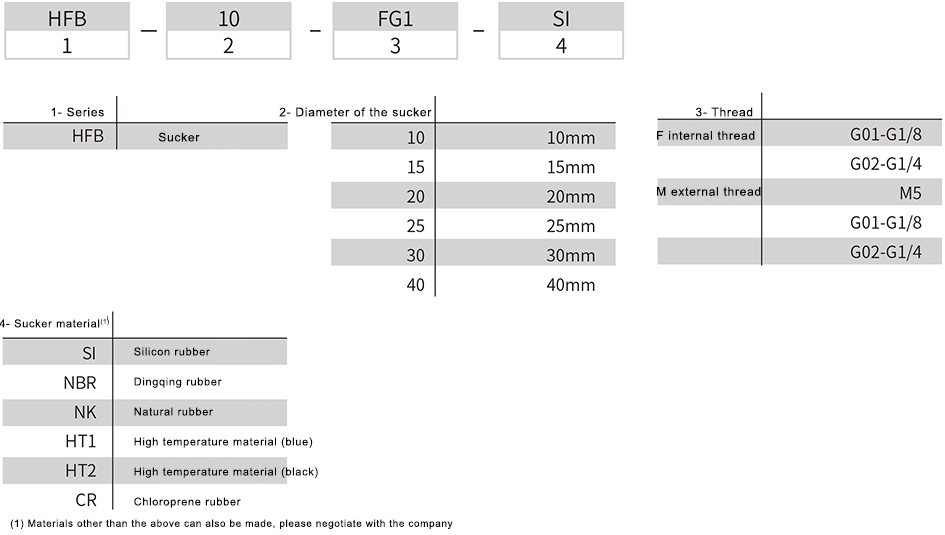

Ordering no

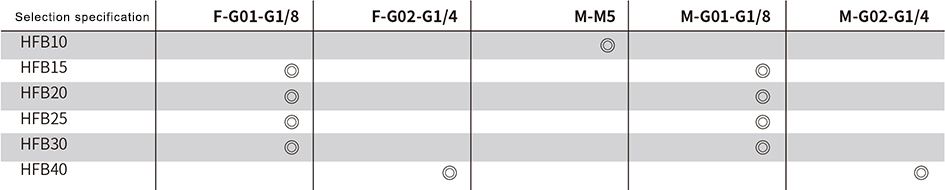

Selection specifications

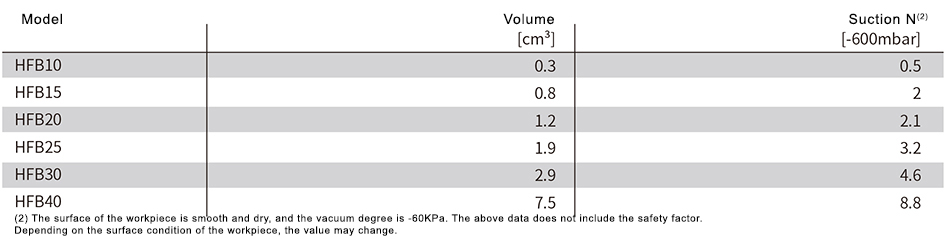

Technical data

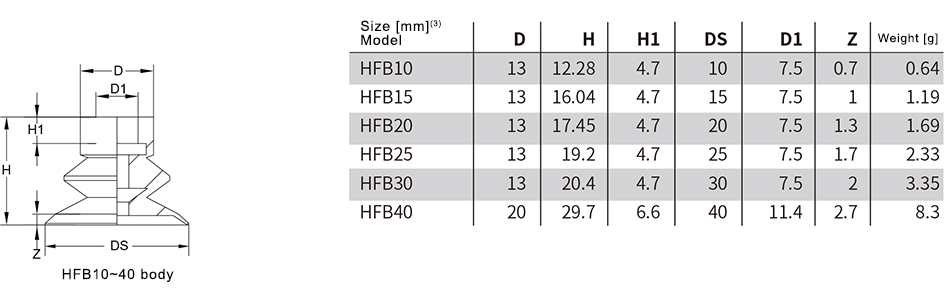

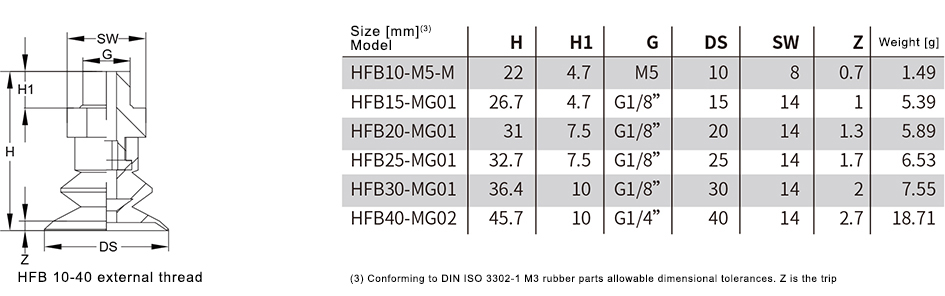

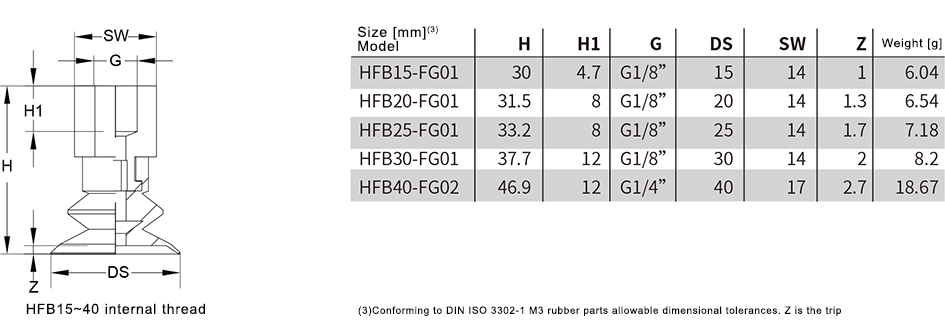

Design data
