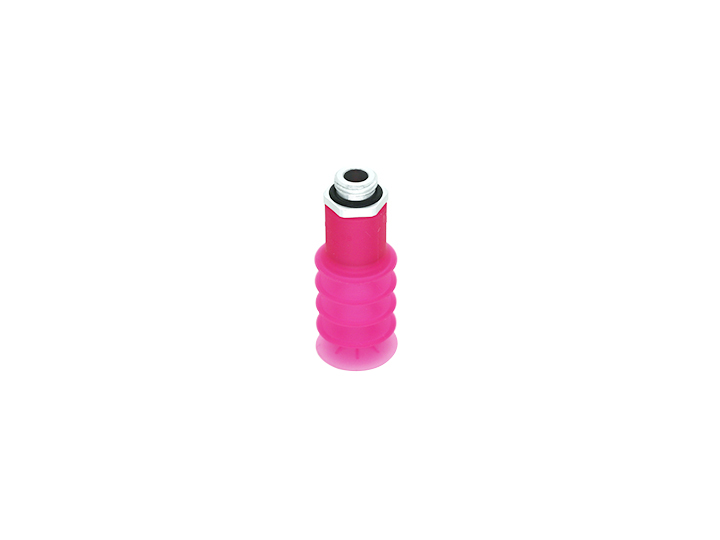

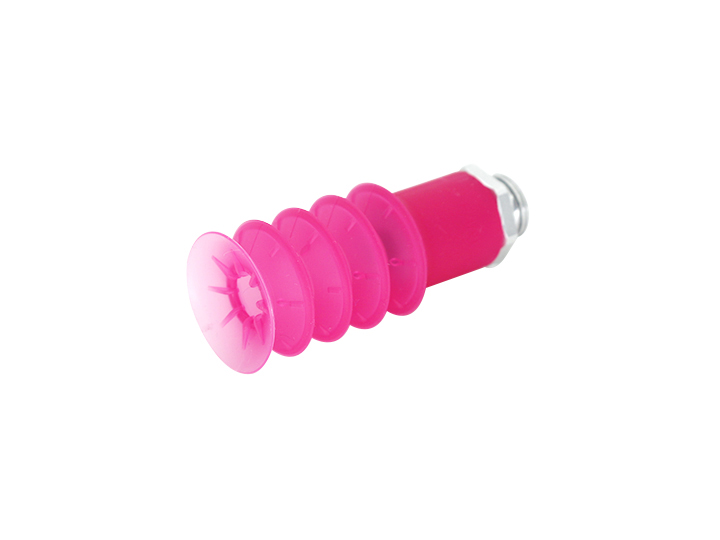

  • Bellows suction cup (circular)

  • * Round corrugated suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
    * Grab packaging bags containing solids, powders or liquids safely and reliably.
    * Suitable for high-speed sports occasions, perfectly matched with high-speed robots.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Round corrugated suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
    Grab packaging bags containing solids, powders or liquids safely and reliably.
    Suitable for high-speed sports events, perfectly matched to high-speed robots.
    Product mix
    (1) 4.5 fold corrugated suction cup HSD sealing lip is flexible and flexible
    (2) Optional accessories: connectors
    The specially designed corrugated structure has stronger stability

    Product advantages
    It has exceptional sealing performance when gripping flexible workpieces such as packaging bags.
    The sealing lip does not crease and does not adhere when the film is absorbed.
    Suitable for use with vacuum pumps, vacuum blowers and multi-stage vacuum generators.
    May come into direct contact with food.

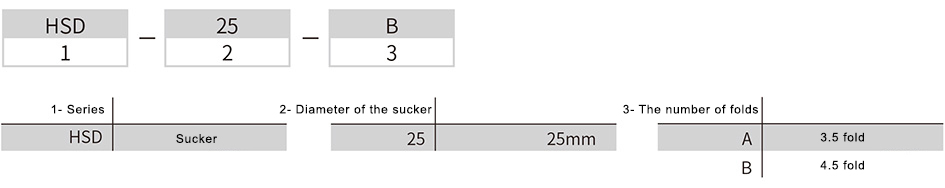

    Ordering no

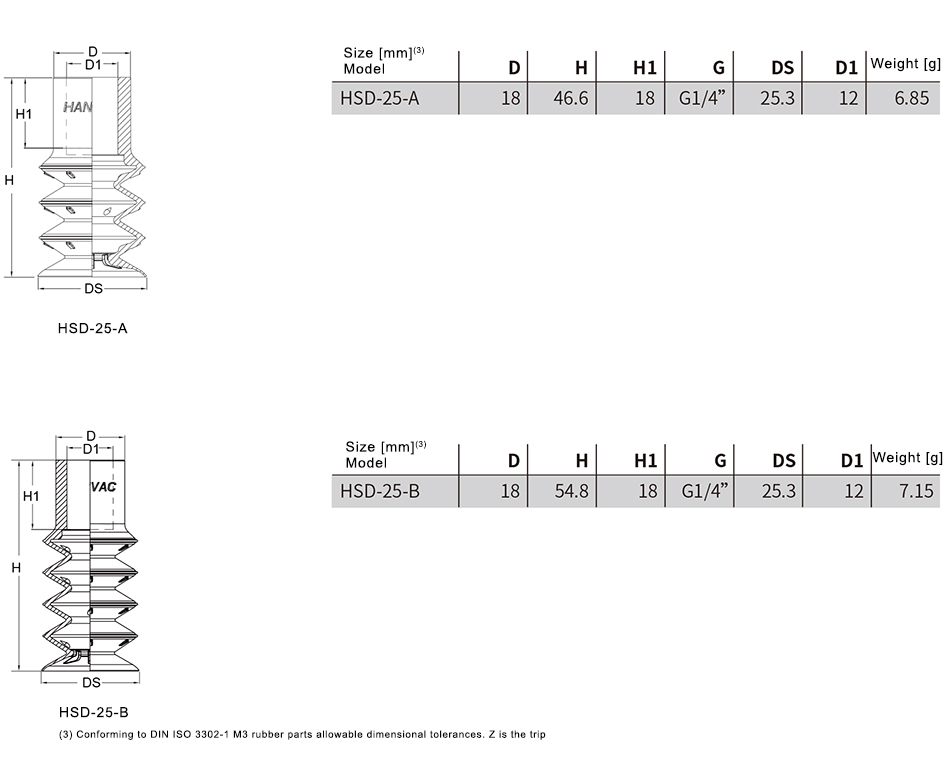

    Design data

Prev：Corrugated suction cup (skirt edge)
Next：Corrugated suction cup (circular)
