Corrugated suction cup (circular)
* Handling fragile and vulnerable workpieces such as electronic components, injection molded parts, etc.
* Handling of workpieces with flat or uneven surfaces, such as cartons, tubes, etc.
* Wide range of dimensions.
* The top of the suction cup has a reinforced rib structure.
* The suction cup is soft and can be customized with several materials.

Contact: +491727628103

Introduce
Design
Parameter

Handling fragile and vulnerable workpieces such as electronic components, injection molded parts, etc.
Handling of workpieces with flat or uneven surfaces, such as cartons, tubes, etc.
Wide range of dimensions.
The top of the suction cup has a reinforced rib structure.
The suction cup is soft and can be customized with several materials.

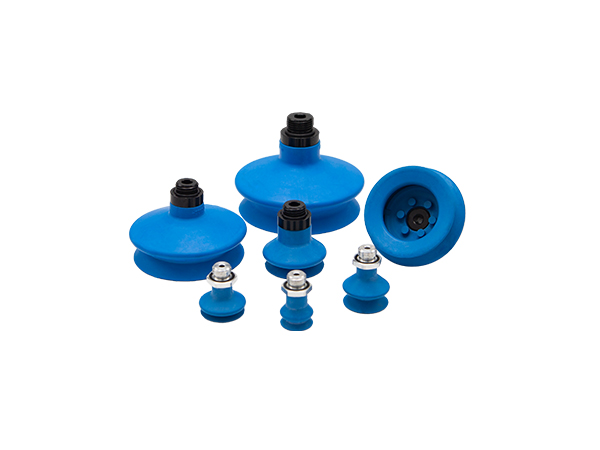

Product mix
Durable and wear-resistant 1.5-fold corrugated suction cup hsb (3), with special grooves and internal support structure.
The suction cup has several connection forms to choose from (1).
Several sizes and materials of suction cups are available (2).

Product advantages
Suitable for workpieces of different shapes and sizes.
Has strong adaptability to uneven surface workpieces.
Compensate for the height difference of the workpiece and ensure good buffer performance when in contact with the workpiece.
Handling thin-walled workpieces does not cause permanent deformation.

Example of HSB suction cup handling automotive glass.

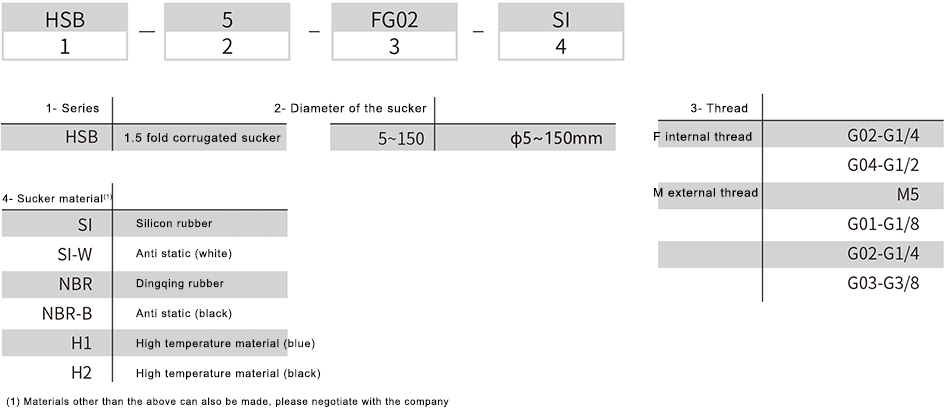

Ordering no

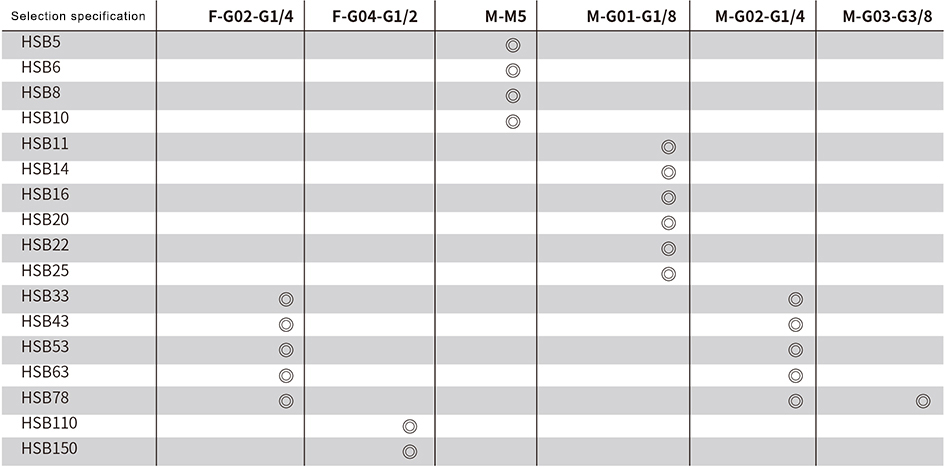

Selection specifications

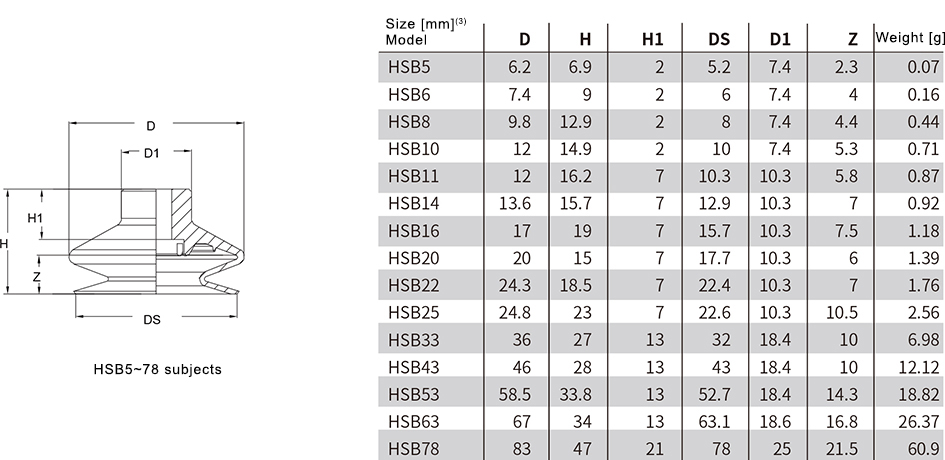

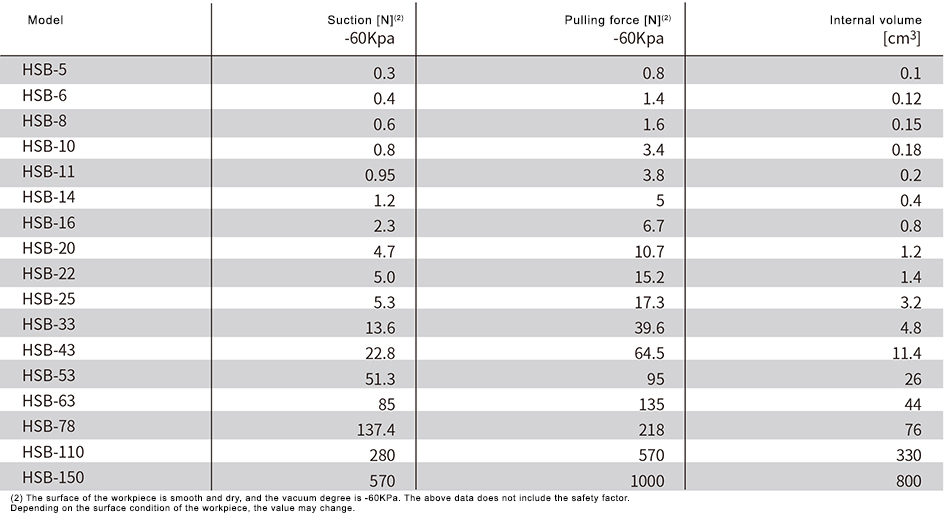

Technical data

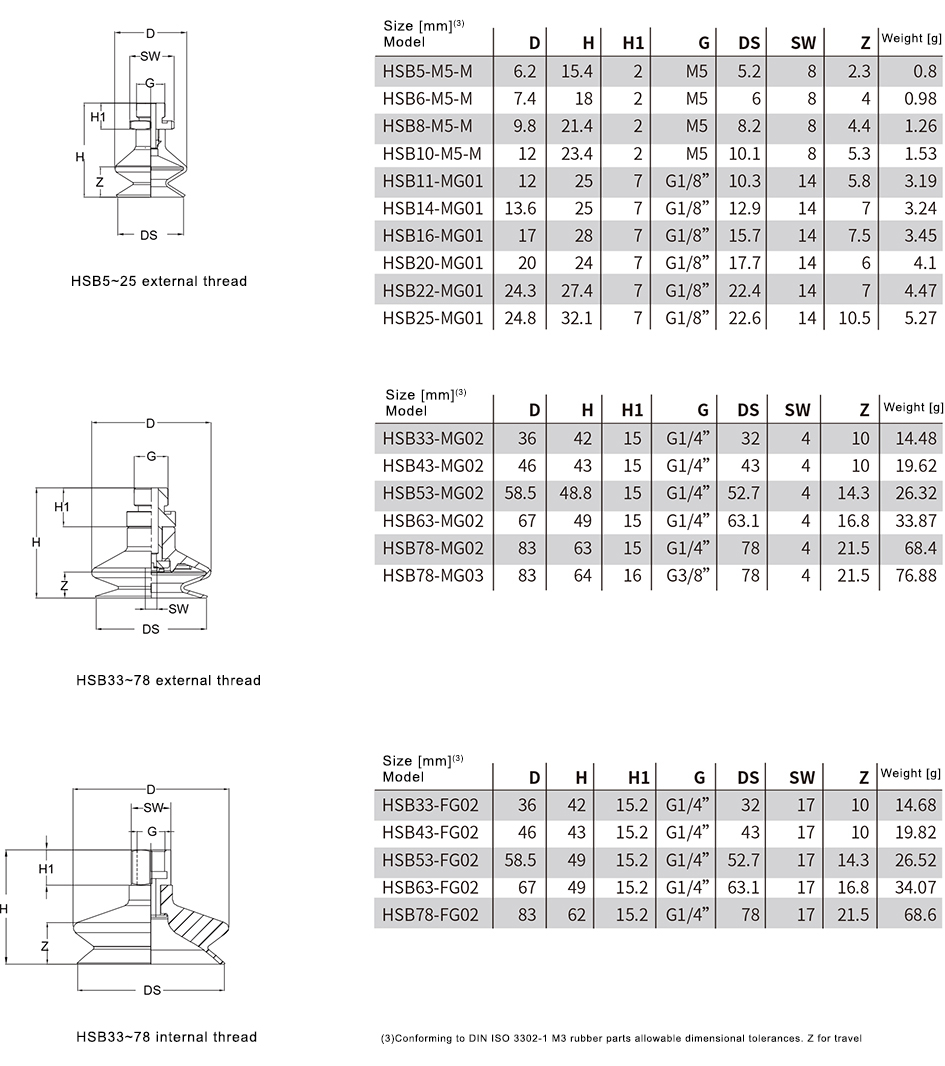

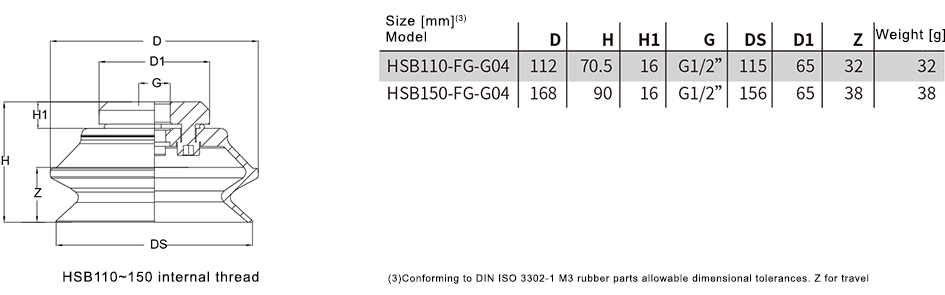

Design data
