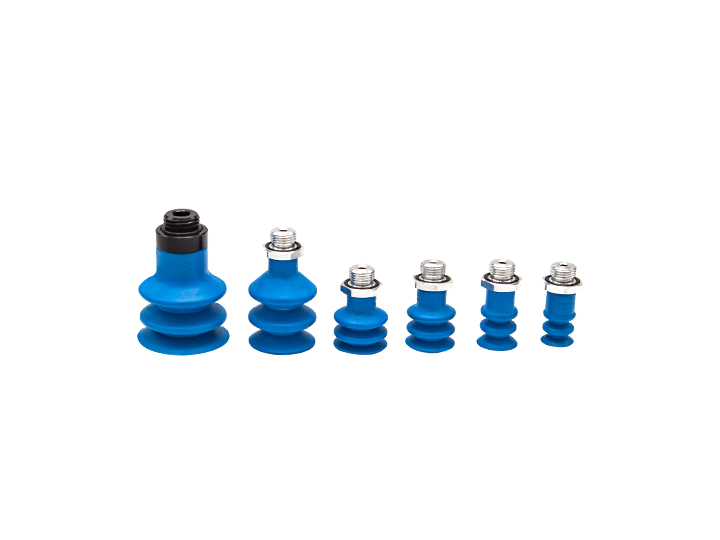

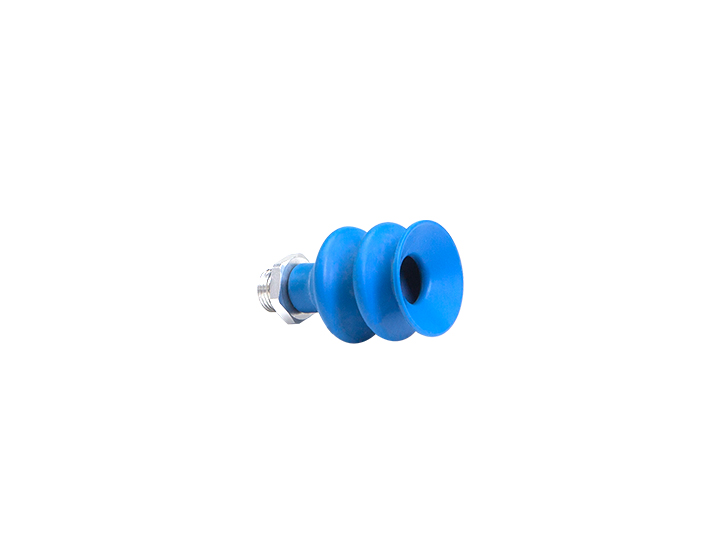

Corrugated suction cup (circular)
* Handling fragile and vulnerable workpieces such as electronic components, injection molded parts, etc.
* Ideally suited for handling workpieces with flat or uneven surfaces such as cardboard, pipes, etc.
* Wide range of dimensions.
* The suction cups with a diameter of 52mm and above are equipped with a supporting structure inside to prevent suction of the workpiece.
* The suction cup is soft and can be customized with several materials.

Contact: +491727628103

Introduce
Design
Parameter

Handling fragile and vulnerable workpieces such as electronic components, injection molded parts, etc.
Ideally suited for handling workpieces with flat or uneven surfaces such as cardboard, pipes, etc.
Wide range of dimensions.
The suction cups with a diameter of 52mm and above are equipped with a supporting structure inside to prevent suction of the workpiece.
The suction cup is soft and can be customized with several materials.

Product mix

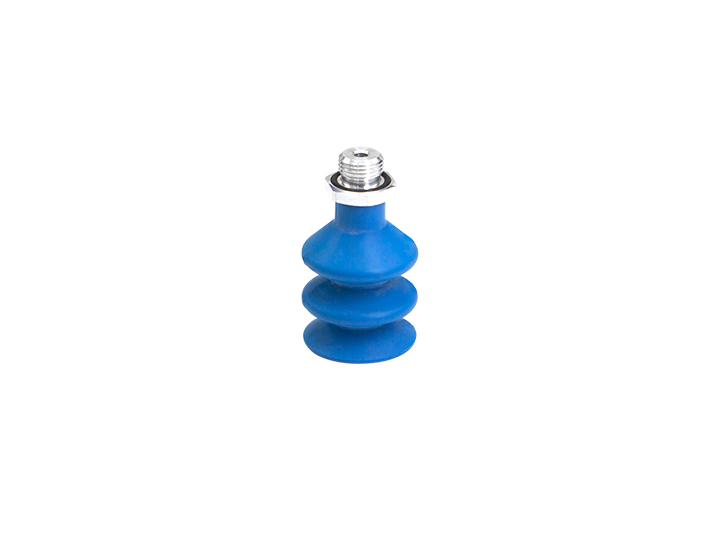

Robust and wear-resistant 2.5-fold corrugated suction cup hsc (3), with special grooves and internal support structure.
The suction cup has several connection forms to choose from (1).

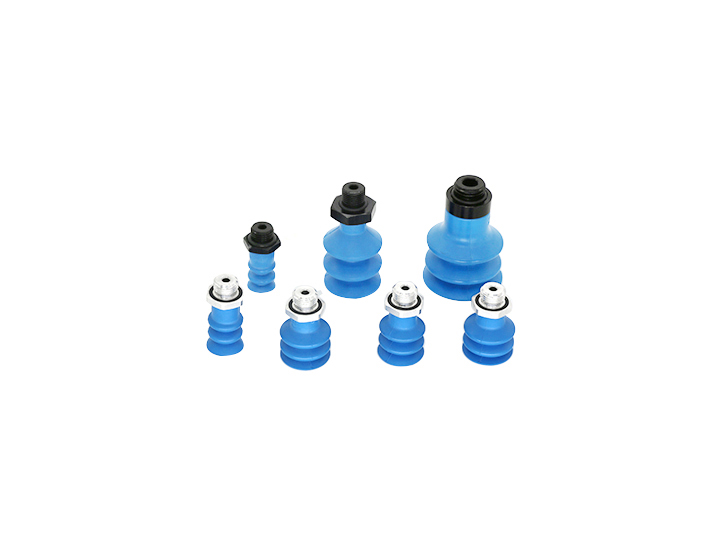

Several sizes and materials of suction cups are available (2).

Product advantages
Suitable for workpieces of different shapes and sizes.
Has strong adaptability to uneven surface workpieces.
Compensate for the height difference of the workpiece and ensure good buffer performance when in contact with the workpiece.
Handling thin-walled workpieces does not cause permanent deformation.

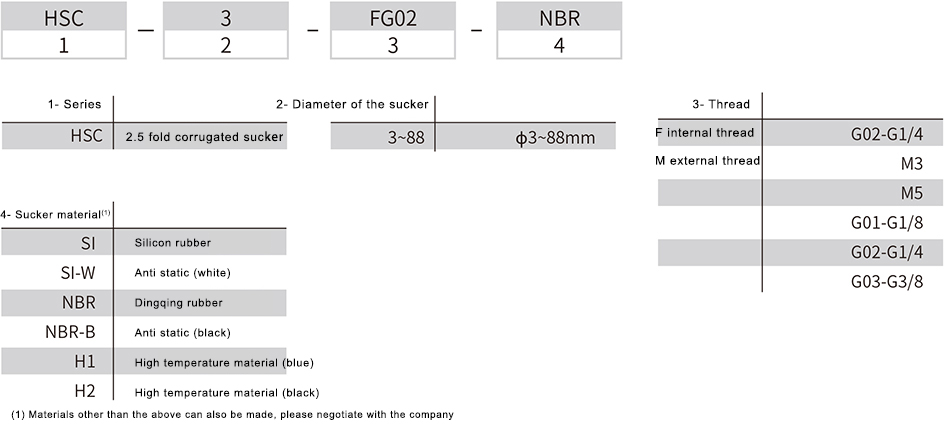

Ordering no

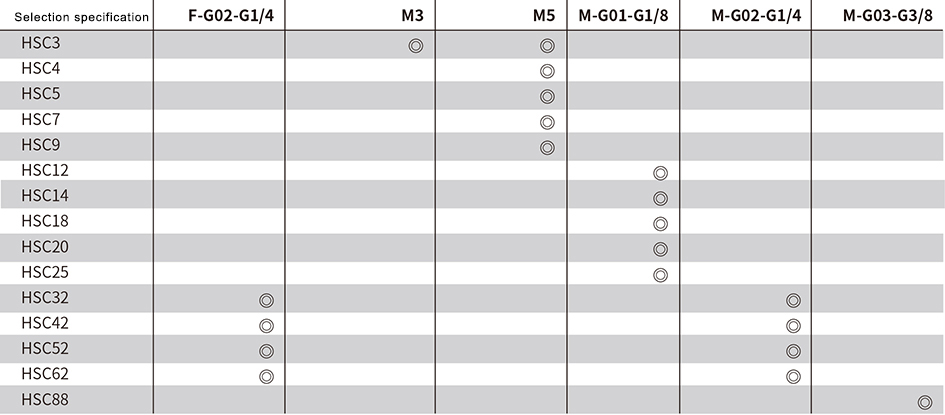

Selection specifications

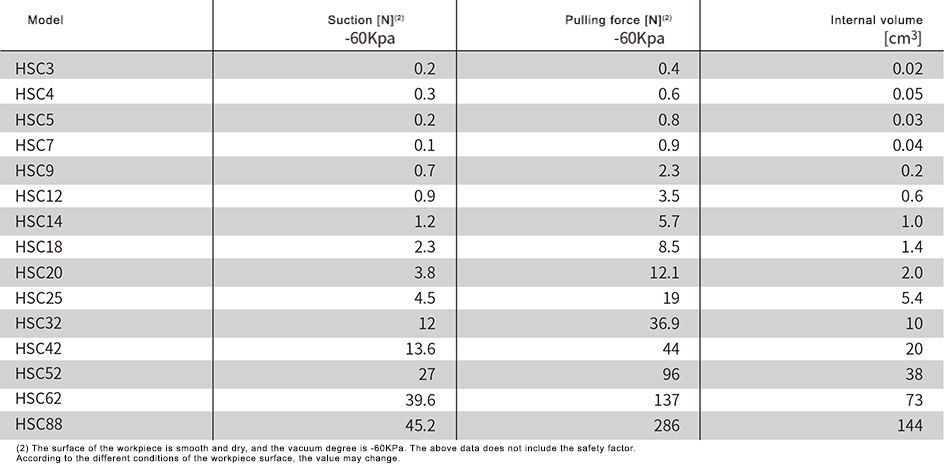

Technical data

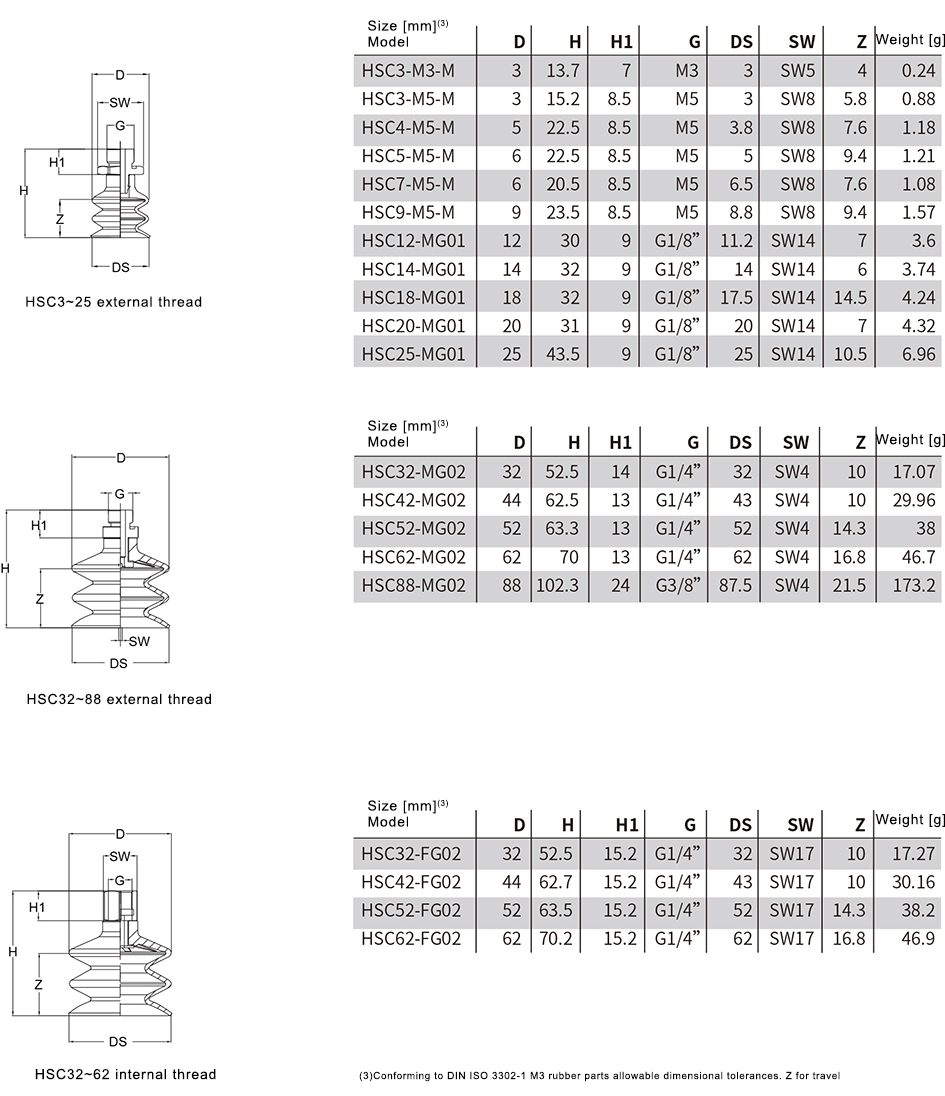

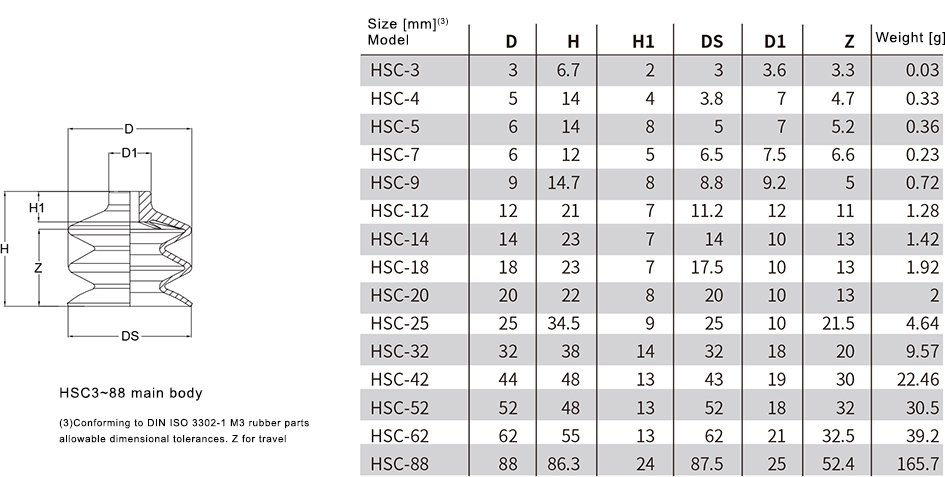

Design data
