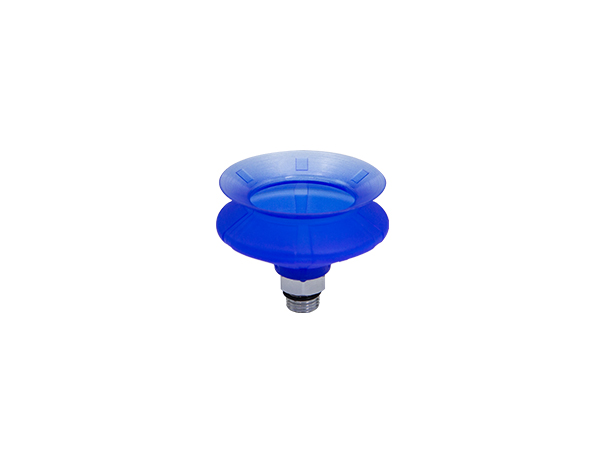

• Corrugated suction cup (circular)

  • * The suction cup achieves optimal sealing on cardboard boxes and hard packaging.
    * High intrinsic stability of suction cups during dynamic processes.
    * The spacing element between the sealing lip and the folding prevents the suction cup from moving.
    * Large effective suction area, low suction force, low suction force.
    * Elastic HX material minimizes wear (service life is about 3 times longer than NBR).

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Product advantages
    1.5 fold corrugated suction cup.
    Internally equipped with supporting filtering structure.
    Complete size specifications.
    Easy to adhere to workpieces with uneven surfaces and has a certain buffering effect. Handling thin-walled workpieces can prevent permanent deformation.
    Suitable for workpieces of various sizes and shapes.

    HSXB suction cup installation example
    Product mix

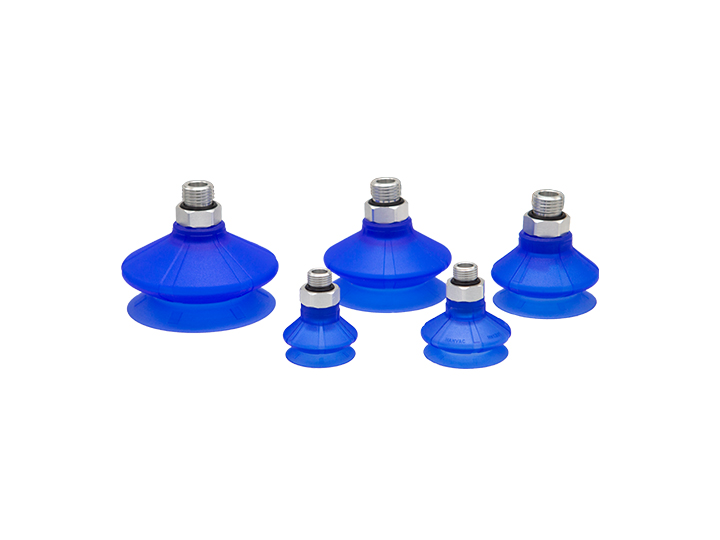

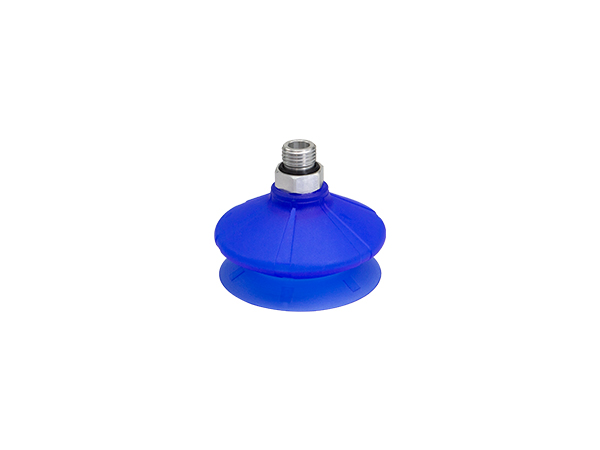

    Circular corrugated suction cup HSXB (1) with 1.5 fold and soft, flexible sealing lip.
    Made of wear-resistant material elastomer HX.
    Models with a diameter of up to 30 mm have plug-in connection components.
    Starting from a diameter of 40 mm, with two-piece connecting elements: composed of machine side components (2) and suction side components (3).
    Clamp filter (4) as a pre filter.
    All connecting components with external threads are equipped with integrated sealing devices on the fastening threads.
    Ordering no

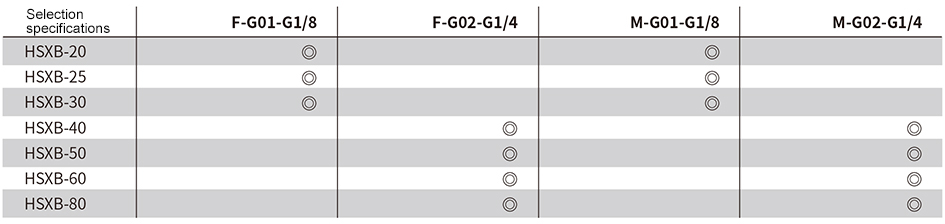

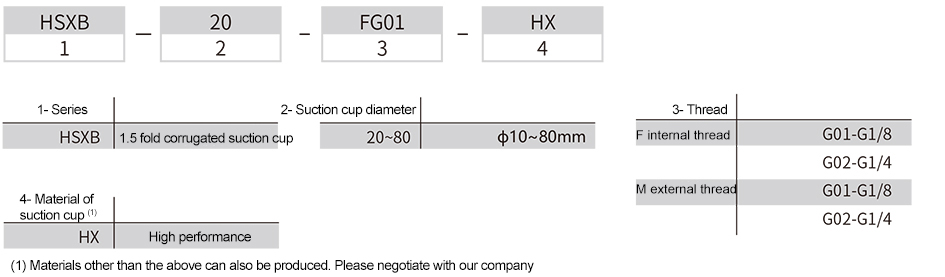

    Model selection

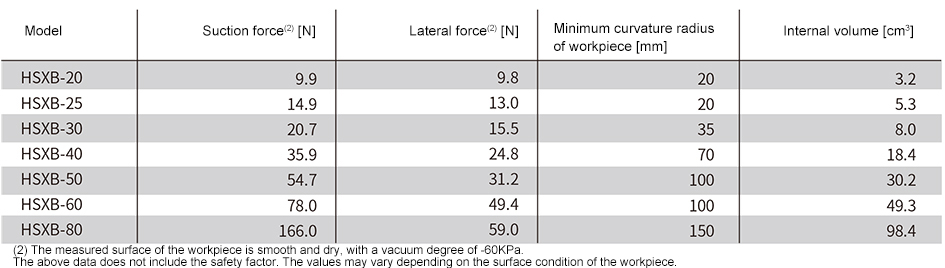

    Technical data

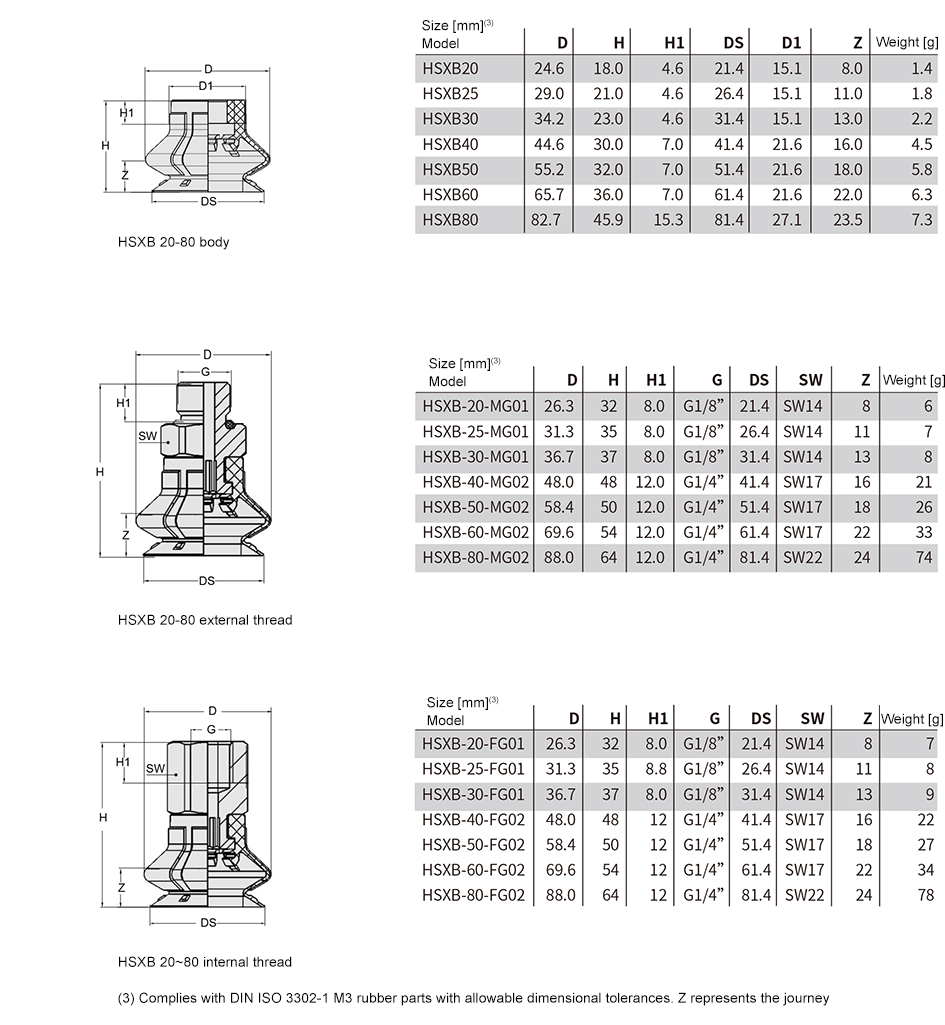

    Design data
