• Needle sucker

  • * Needle suction cups (mainly textiles) for handling non-rigid and porous materials.
    * Materials that are difficult to capture by vacuum, such as composite fiber, fluff fabric, filter material, thermal insulation and foams, are treated.
    * The small needle can be inserted deep and released quickly.
    * Adjustable needle stroke.
    * Even in the event of a power failure, it can prevent the workpiece from falling off.
    * Absorbs firmly high breathability and difficult to transport workpieces under vacuum.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Needle suction cups (mainly textiles) for handling non-rigid and porous materials.
    Materials that are difficult to capture by vacuum, such as composite fiber, fluff fabric, filter material, thermal insulation and foams, are treated.
    The small needle can be inserted deep and released quickly.
    Adjustable needle stroke.
    Even in the event of a power failure, it can prevent the workpiece from falling off.
    Absorbs firmly high breathability and difficult to transport workpieces under vacuum.

    Product mix
    Main body: Made of aluminum alloy, small in size and light in weight.
    (1) Connection connector: Used for compressed air connection to control the ejection of steel needles.
    (2) Connection connector: Used for compressed air connection to control the ejection of steel needles.
    (3) mounting screw: M5x2.
    (4) Steel needle: The insertion angle of the steel needle is 30°.

    Product advantages
    Without pwis (water-based color interference), it can withstand high temperatures up to 250℃ for a long time.
    Perfect for sealing curved workpieces, with excellent damping effect.
    High soft sealing lip.
    Internal large-scale support structure.
    The suction cup and the joint are fixed by vulcanization.
    The sizes are complete.

    Example of handling hsn suction cups of composite materials

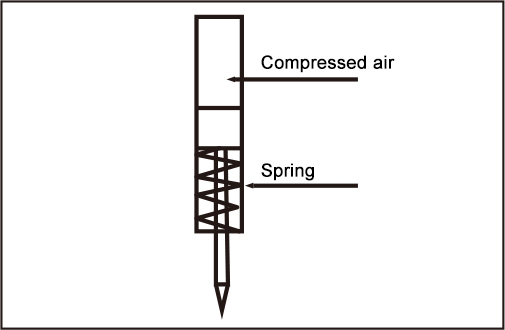

    Pneumatic diagram

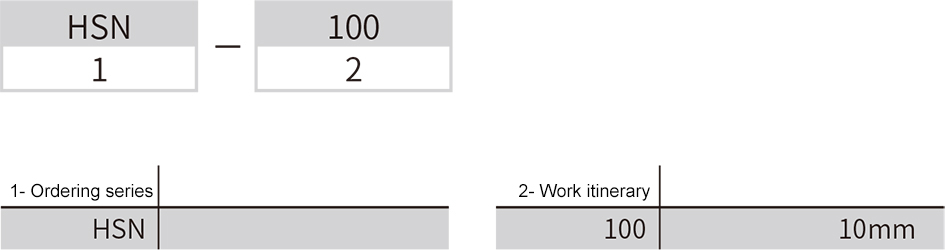

    Ordering no



    Technical data

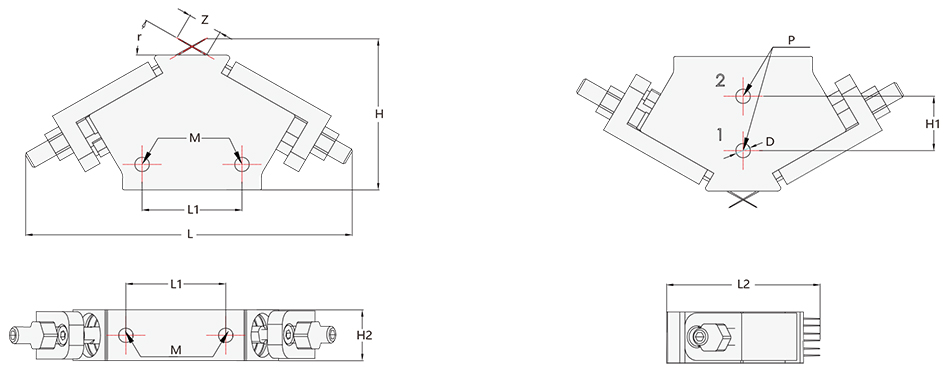

    Design data
