Corrugated suction cup (circular)
* The suction cup does not crease or stick when the film is absorbed.
* Suitable for use with vacuum pumps, vacuum blowers and multi-stage vacuum generators.
* Food grade silicone material, can come into direct contact with food.

Contact: +491727628103

Introduce
Design
Parameter

The suction cup does not crease or stick when the film is absorbed.
Suitable for use with vacuum pumps, vacuum blowers and multi-stage vacuum generators.
Food grade silicone material, can come into direct contact with food.

Product mix

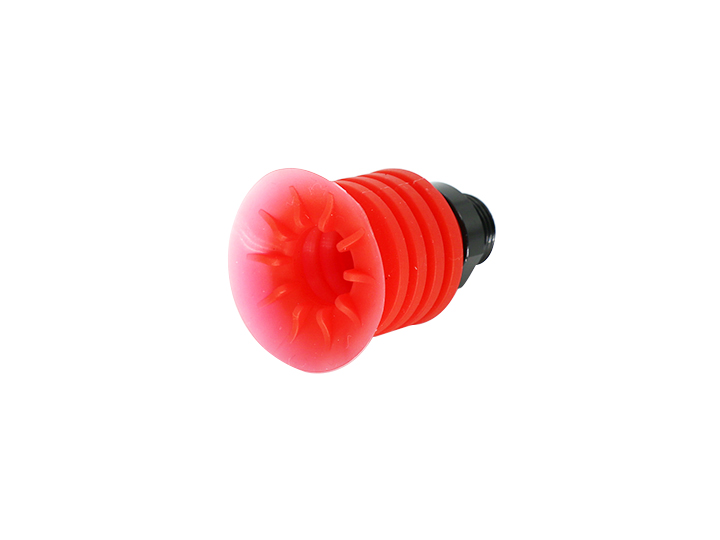

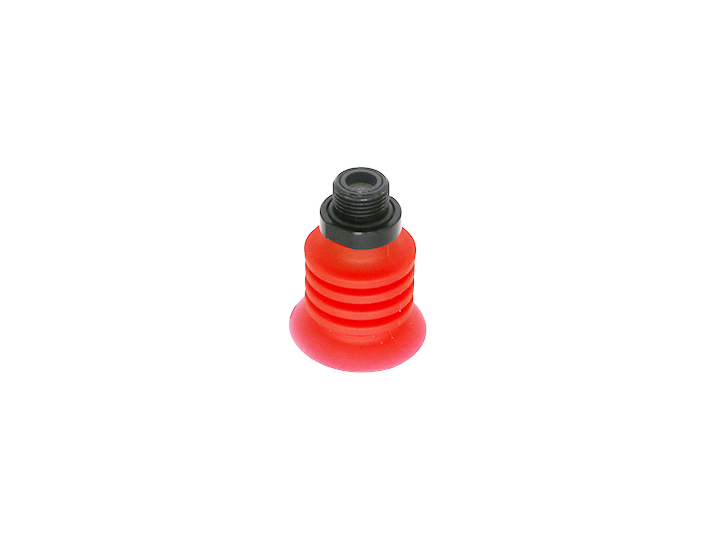

4.5 fold corrugated suction cup(1) with thin sealing lip, flexible and flexible.
The specially developed corrugated board structure has a stronger stability.
Mounting by plug (3). It can also be installed on a 1/2 "or 3/8" trachea and secured with a tube clamp.
All external threaded connections are equipped with o-rings.
Annex: Filter (2).

Product advantages
Circular 4.5 fold corrugated suction cups are used for handling very flexible products, such as plastic bags, aluminum foil bags and other soft bag packaging.
The flat and gradually thinner lip edge safely and reliably picks up packaging bags containing solids, powders or liquids and has exceptional sealing performance for flexible operations such as grabbing packaging bags.

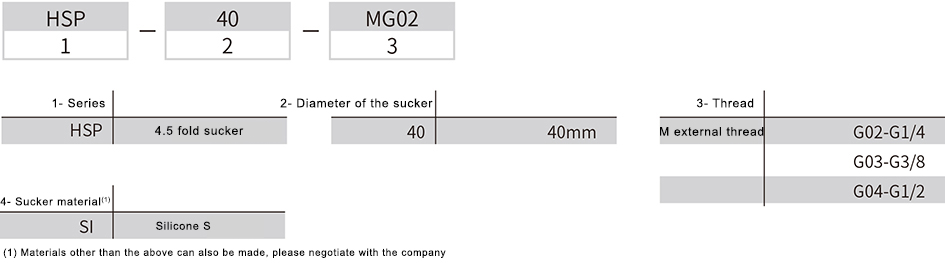

Ordering no

Selection specifications

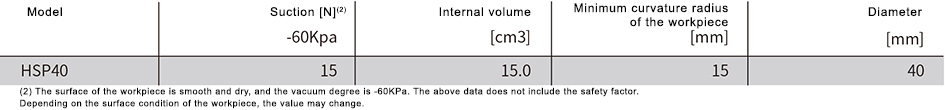

Technical data

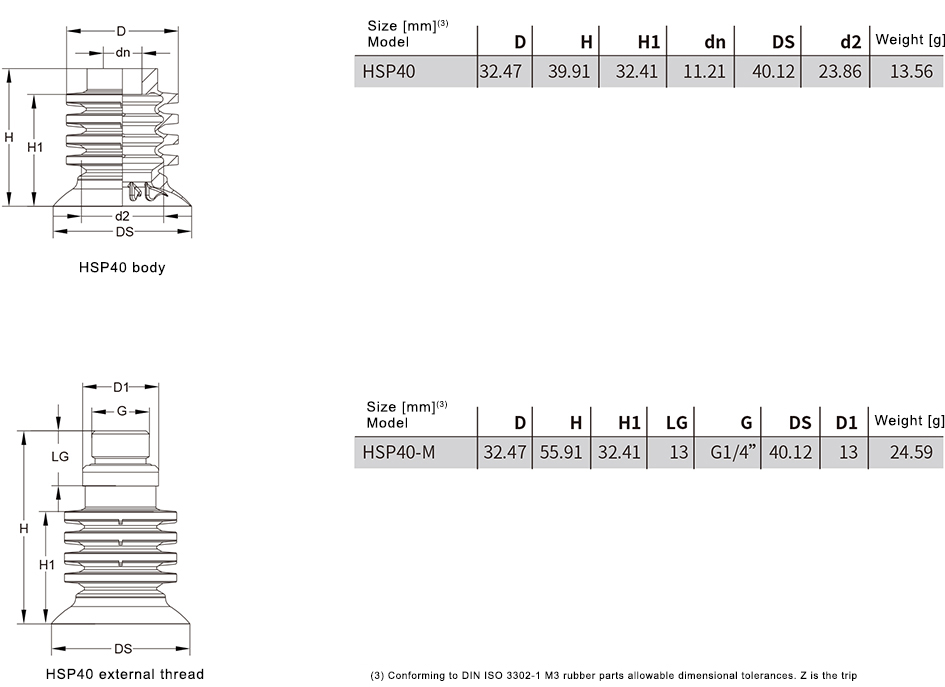

Design data
