  • HVGP80-SA

  • * Medium sized standardized design.
    * Convenient and simple maintenance.
    * Using lightweight and tough high-strength aluminum profiles.
    * Built in multi-stage vacuum generator module.
    * Adopting HANWHA's unique valve body technology.
    * Different suction cup specifications are suitable for a wider range of workpiece applications.
    * High performance imported materials have a longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter

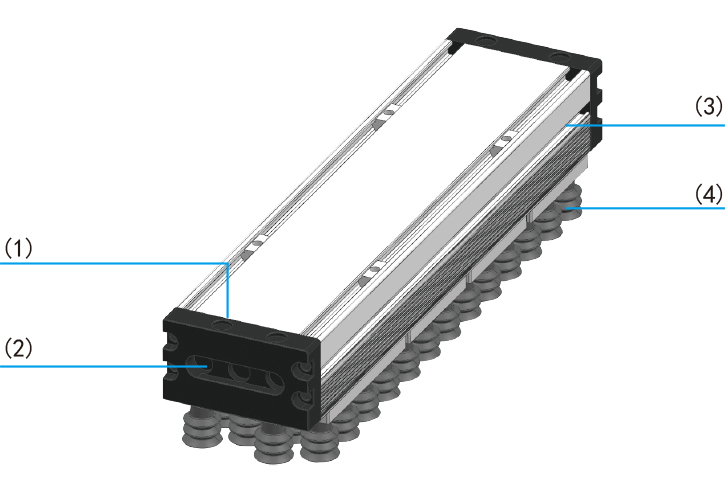

    Product mix
    (1) Compressed air intake.
    (2) Exhaust hole with noise reduction function.
    (3) Aluminum profiles, customizable.
    (4) The sturdy and wear-resistant 2.5-fold suction cup is made of flexible and flexible material, making it easy to fit the workpiece.

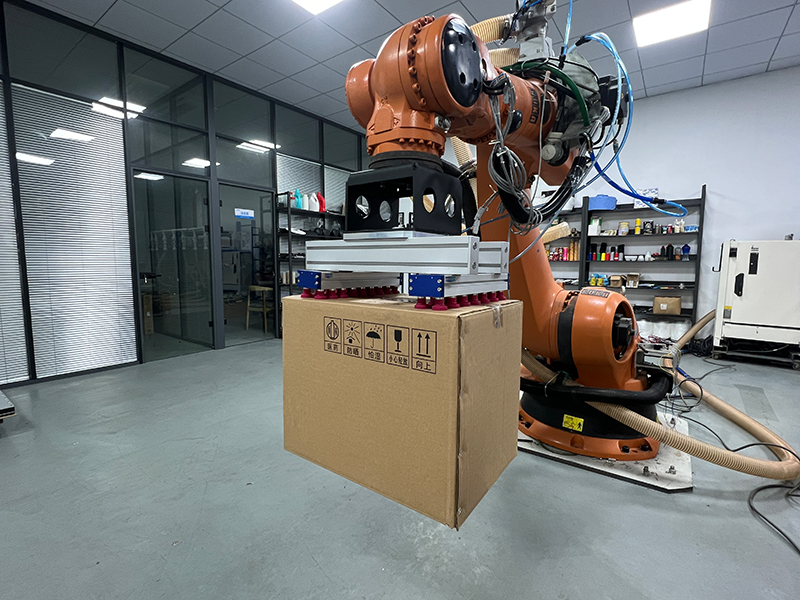

    Product advantages
    Handling wooden boards, cardboard boxes, metal sheets, glass, plastics, etc.
    Handling uneven and perforated parts.
    Transport and pick workpieces without fixed positions.
    Handling sensitive parts such as display screen glass.

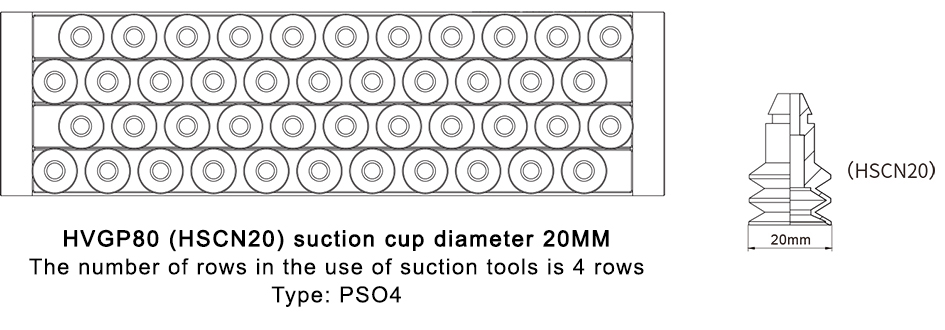

    Example of HVGP suction box packaging with suction cups and suction tools

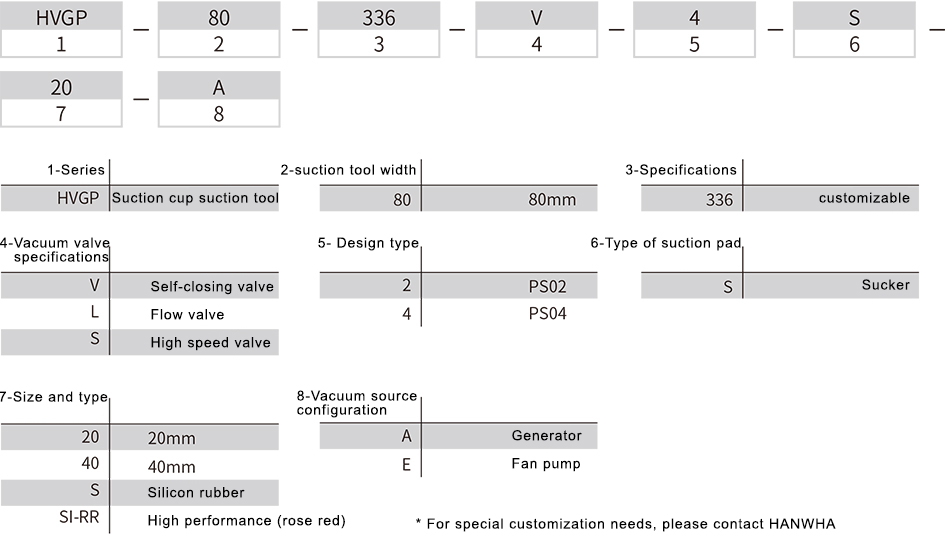

    Ordering no



    Auswahlspezifikationen

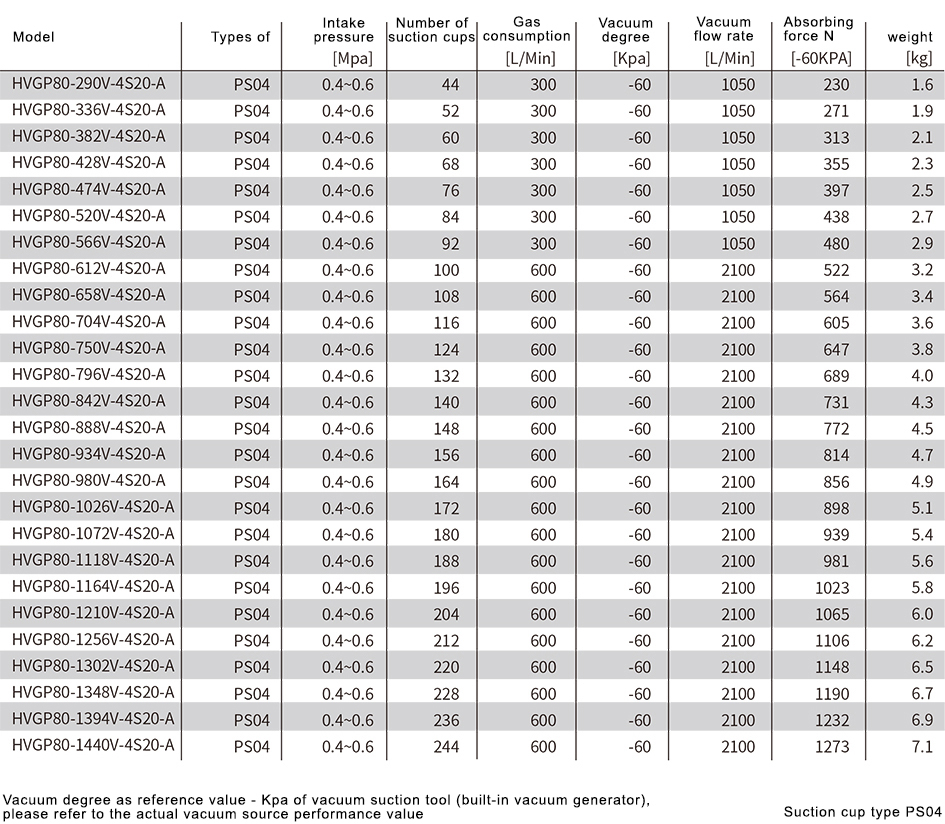

    Technical data

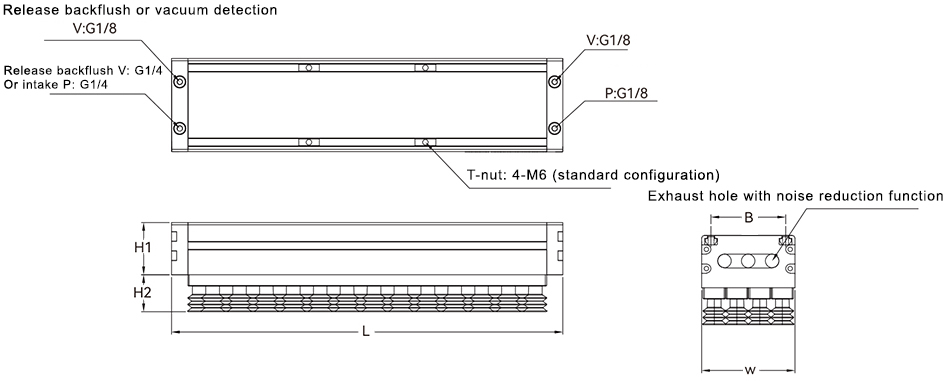

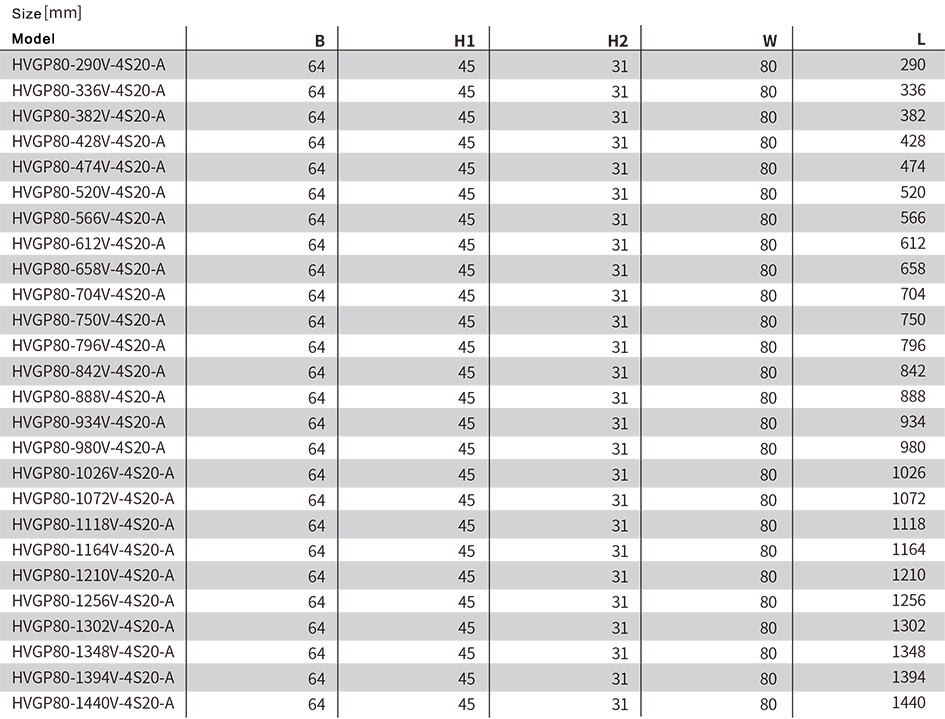

    Design data

Prev：HVGP60-SA
Next：HVGP130-SA
