Product

HVGP130-SA
* Medium sized standardized design.
* Convenient and simple maintenance.
* Adopting lightweight and tough high-strength aluminum profiles.
* Built-in multi-stage vacuum generator module.

Contact: +491727628103

Introduce
Design
Parameter

Adopting HANWHA's unique valve body technology.
Different suction cup specifications are suitable for a wider range of workpiece applications.
High performance imported materials with longer service life.
Suitable for corrugated cardboard, plywood, iron sheet, and other general workpieces.

Product mix
(1) Compressed air intake.
(2) Exhaust hole with noise reduction function.
(3) Aluminum profiles, customizable.
(4) A sturdy and wear-resistant 2.5-fold suction cup made of flexible and flexible material, which is easy to fit the workpiece.

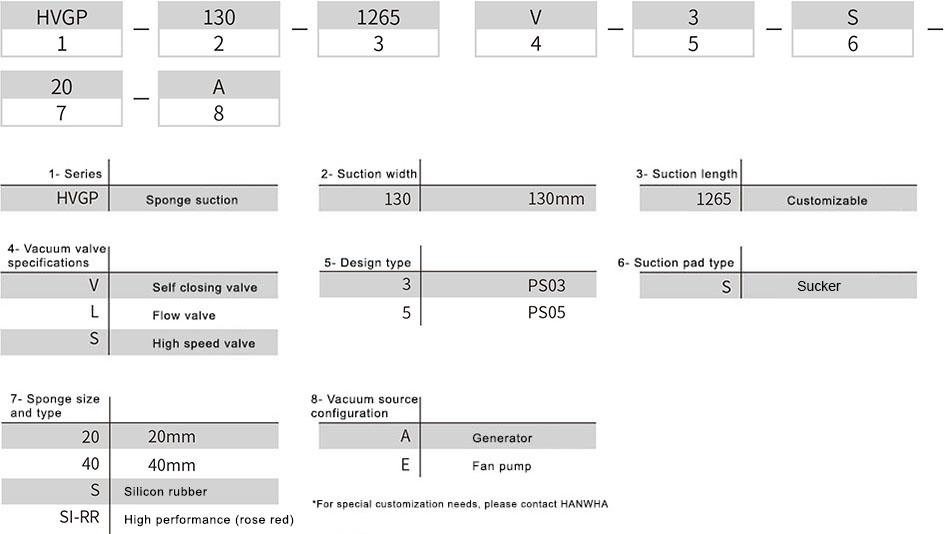

Ordering no

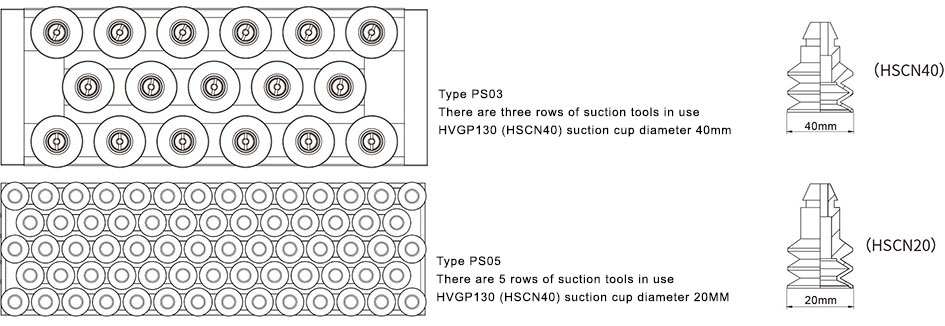

Selection specifications

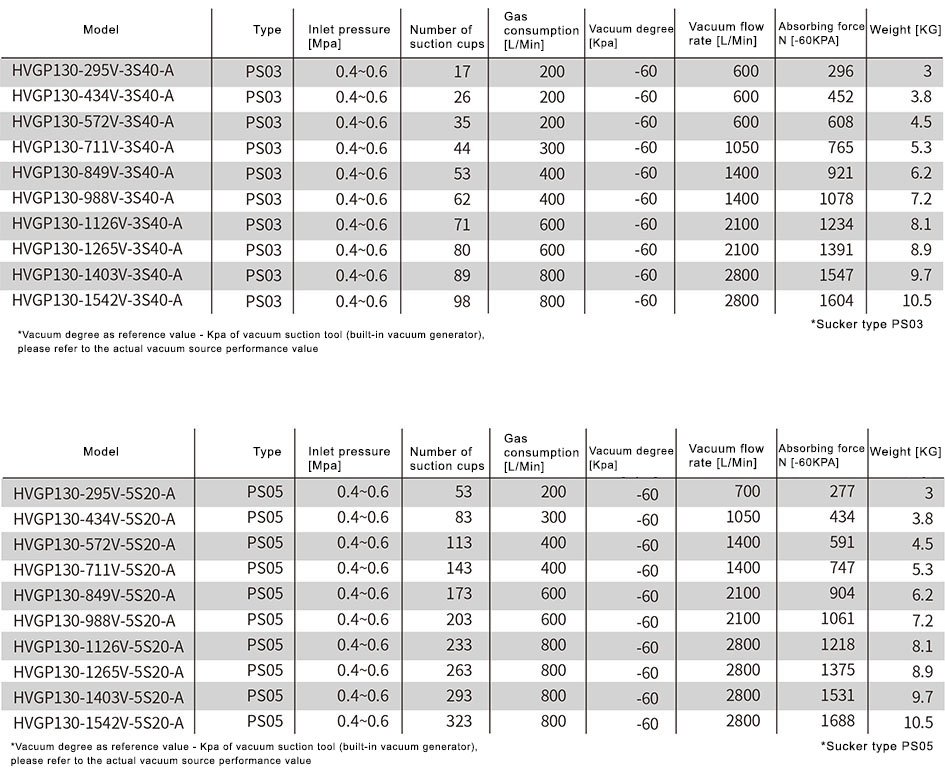

Technical data

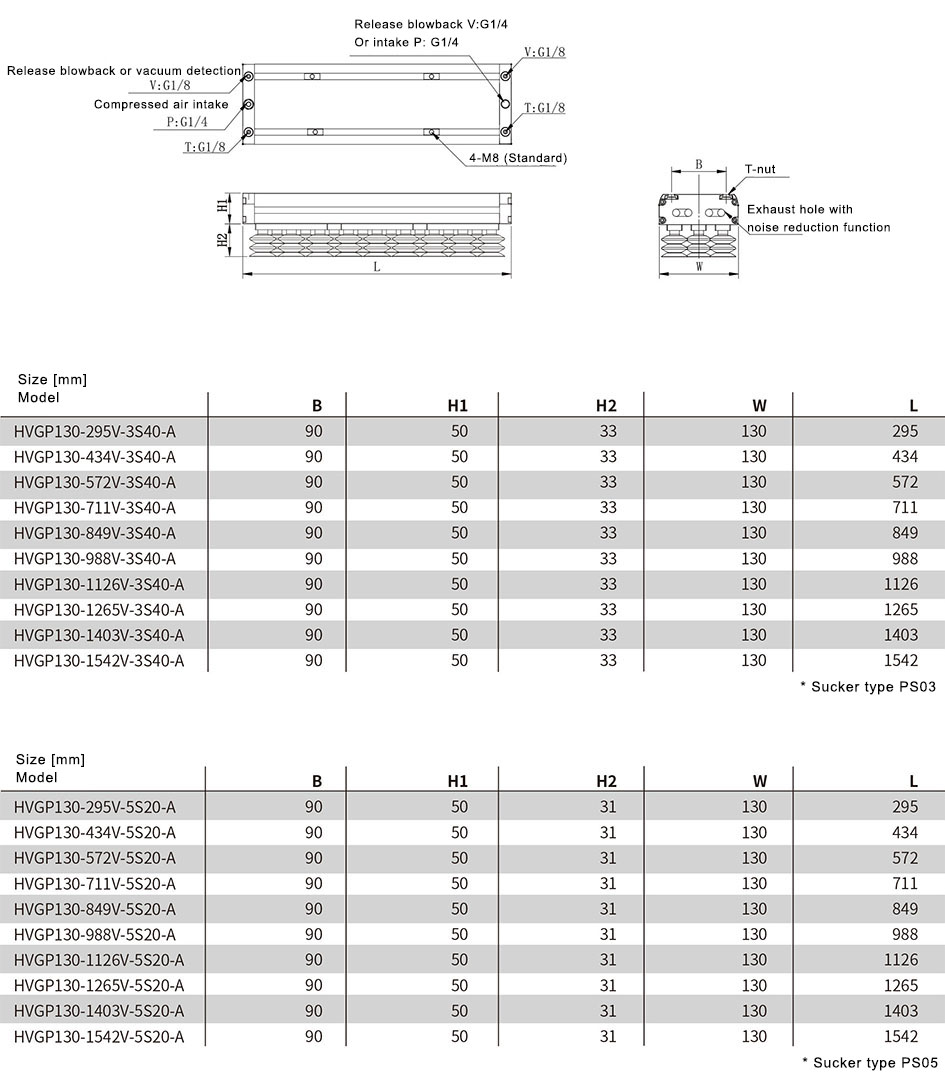

Design data

Prev：HVGP80-SA

Next：HVGP200-SA
