  • ECO-200M

  • * Durable aluminum alloy body with multiple installation designs.
    * Integrated modular vacuum generator supporting custom configuration to meet specific system control requirements.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Durable aluminum alloy body with multiple installation designs.
    Integrated modular vacuum generator supporting custom configuration to meet specific system control requirements.


    Product mix
    Housing: Made of plastic, small and light in weight
    (1) Plug: compressed air connection for blowing
    (2) Vacuum connection
    (3) 4 mounting holes for mounting and fixing
    (4) V: Vacuum detection g1/8
    (5) The air outlet is made of aluminum oxide

    Product advantages
    Reduce energy consumption by more than 50%, and release them quickly and precisely without consuming compressed air.
    No maintenance required and reduces maintenance and spare part costs.

    Example of vacuum generator eco directly installing sponge suction products

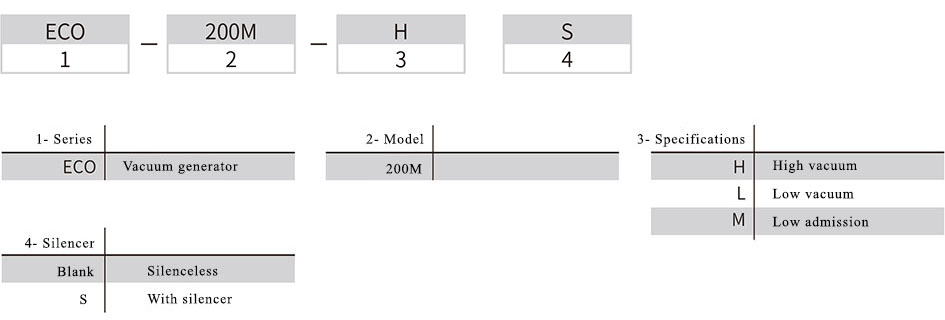

    Ordering no


    Technical data

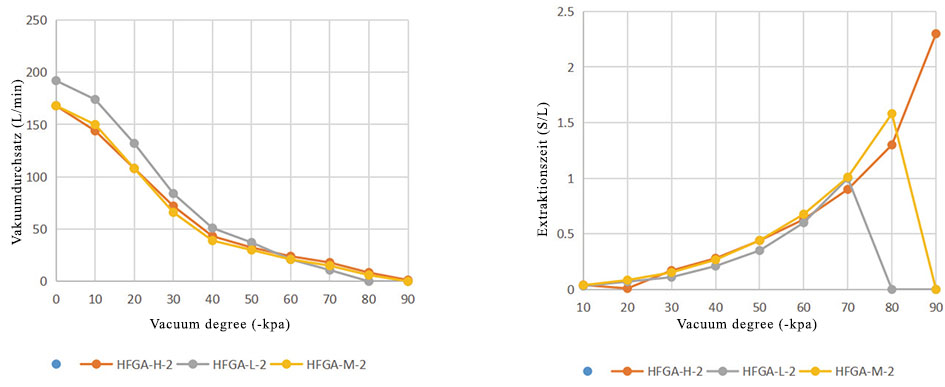

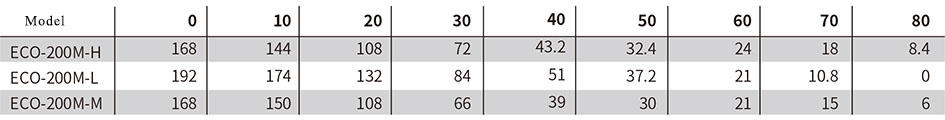

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

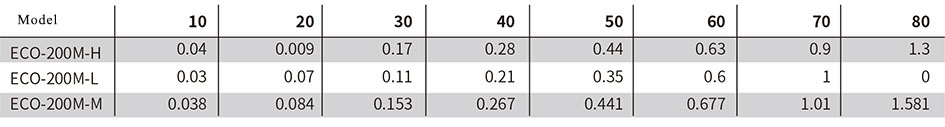

    Suction time (S/L) for different vacuum degrees (-kpa)

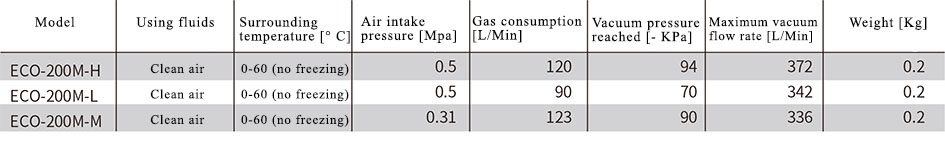

    Performance parameter

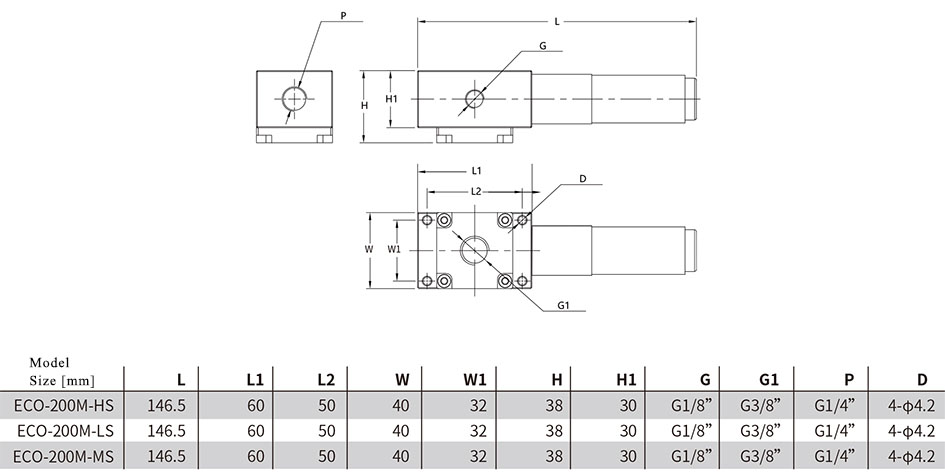

    Design data
