• ECO-350M

  • * Durable aluminum alloy body with multiple installation designs.
    * Integrated modular vacuum generator that supports custom configuration to meet specific system control requirements.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Durable aluminum alloy body with multiple installation designs.
    Integrated modular vacuum generator that supports custom configuration to meet specific system control requirements.

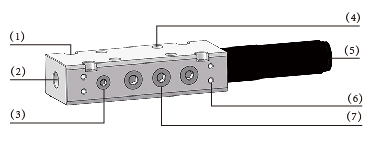

    Product mix
    Body: Made of aluminum alloy, small in size and light in weight
    (1) 4-φ 4.5 installation interface
    (2) Connector: Air inlet connector for blowing
    (3) 2-pole vacuum detection connector
    (4) 4-- φ 4.2 installation interface
    (5) the air outlet is made of aluminum oxide
    (6) 4 mounting holes for mounting and fixing
    (7) 6-pole vacuum connection

    Product advantages
    Reduce energy consumption by more than 50%, and release them quickly and precisely without consuming compressed air.
    No maintenance required and reduces maintenance and spare part costs.

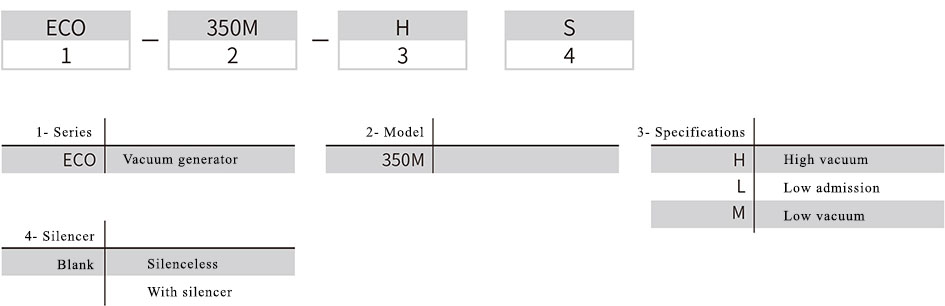

    Ordering no

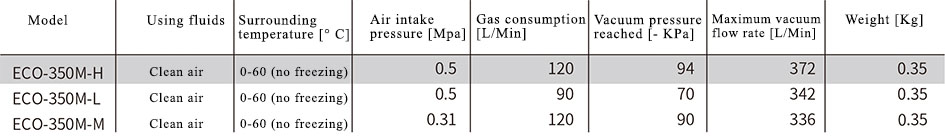

    Technical data

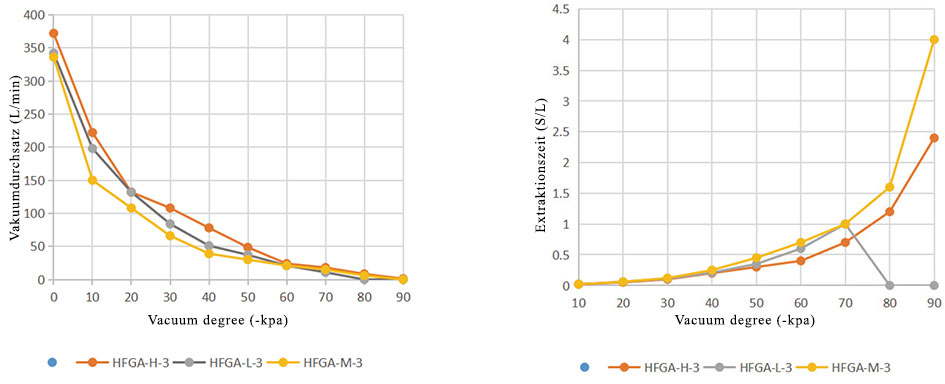

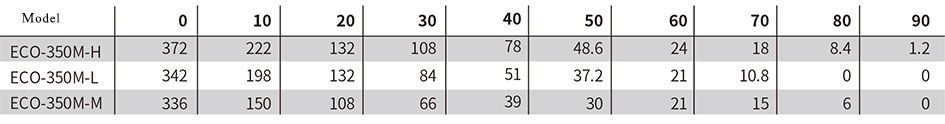

    Vacuum throughput (L/min) for different vacuum degrees (-kpa)

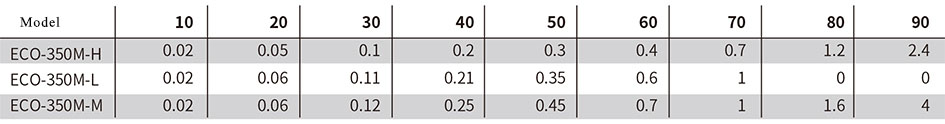

    Suction time (S/L) for different vacuum degrees (-kpa)


    Performance parameter

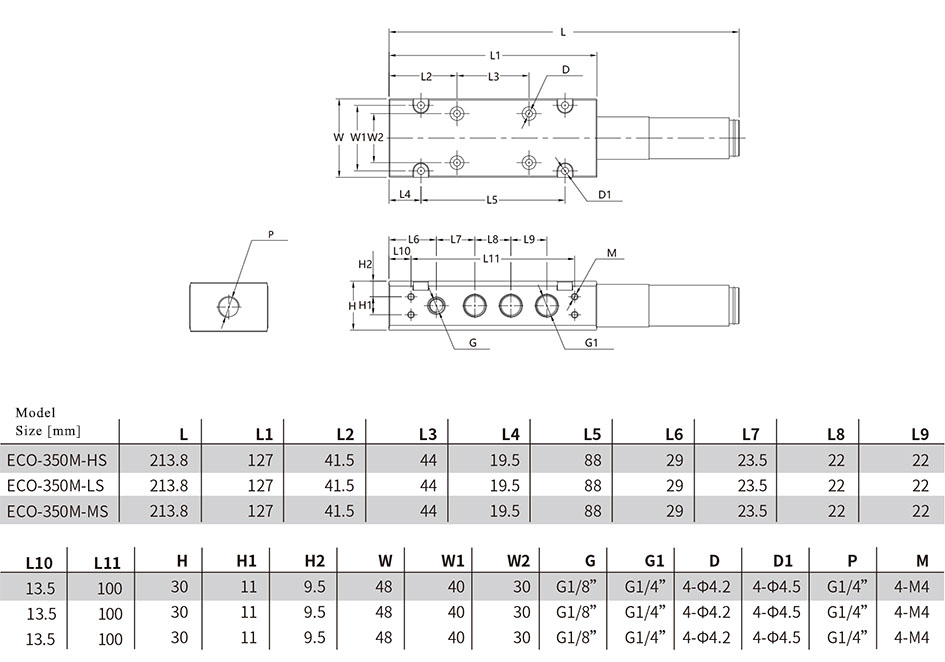

    Design data
