• ECO-H6010

  • * The vacuum generator body is made of aluminum oxide.
    * Multi-stage vacuum tubes can meet the vacuum flow rate in different situations, thereby improving the vacuum degree.The vacuum interface is g3/4 threaded.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The vacuum generator body is made of aluminum oxide.
    Multi-stage vacuum tubes can meet the vacuum flow rate in different situations, thereby improving the vacuum degree.The vacuum interface is g3/4 threaded.

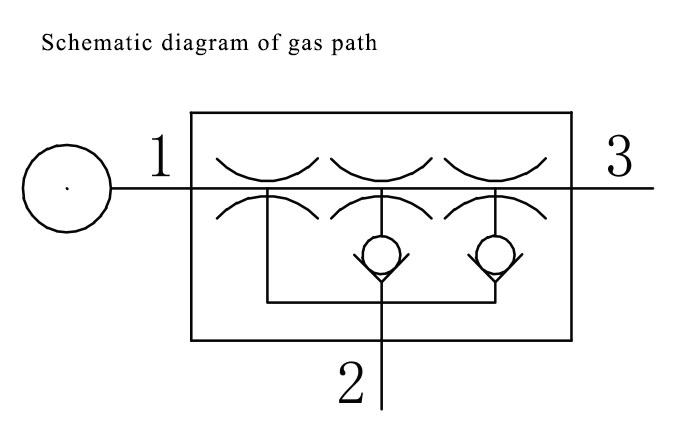

    Product mix
    Main body: made of aluminum, small in size and light in weight
    (1) Silencer: of anodized aluminium oxide
    (2) V: G1/8 vacuum detection port
    (3) P: G1/4 compressed air inlet
    (4) V: G1 vacuum connection


    Product advantages
    Modular, fast and convenient installation design, vacuum system with advantages such as economy and reliable operation, can greatly simplify the selection and work of vacuum systems. Provide more comfort for customers.

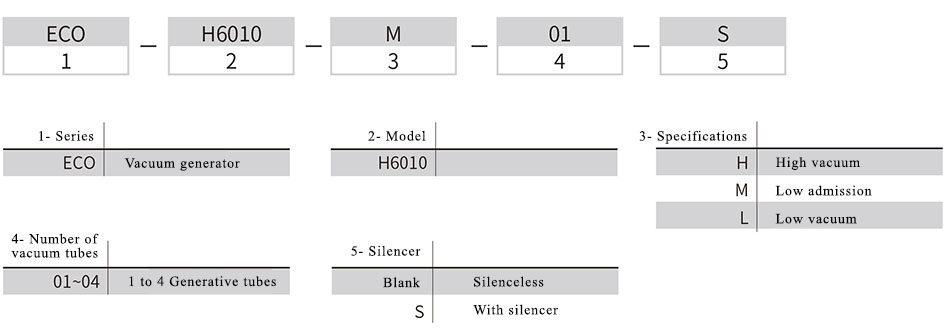

    Ordering no

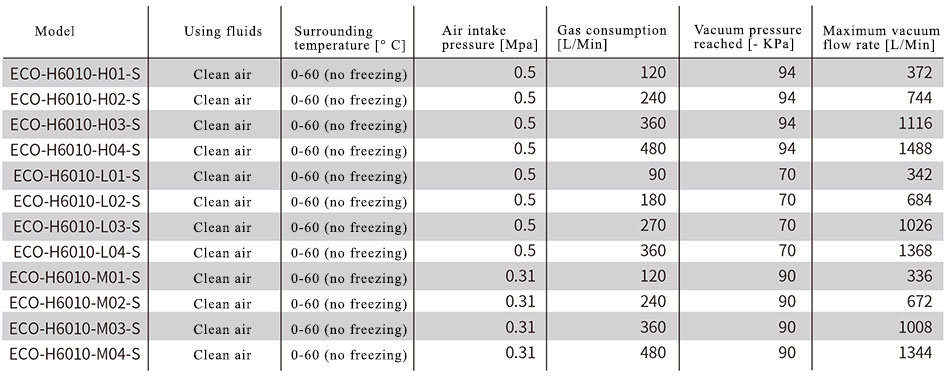

    Technical data

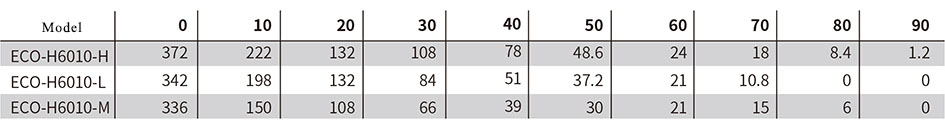

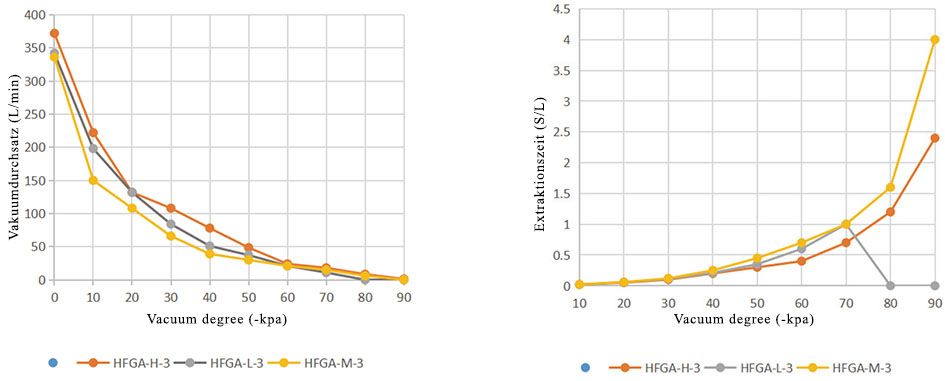

    Vacuum flow rate (L/min) for different vacuum degrees (- kpa)

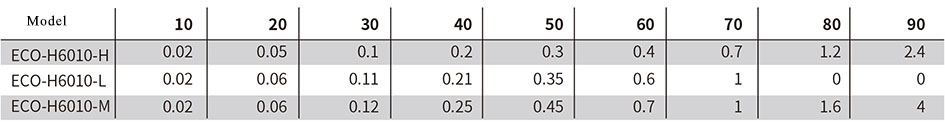

    Extraction time (S/L) for different vacuum degrees (- kpa)

    Performance parameter

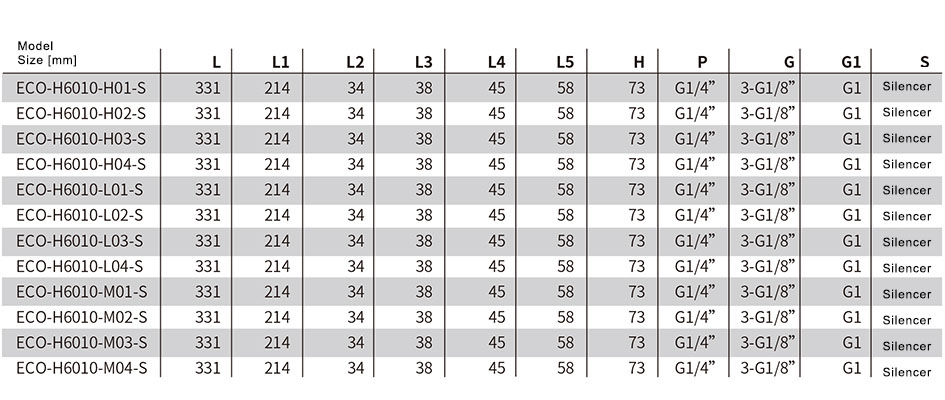

    Design data
