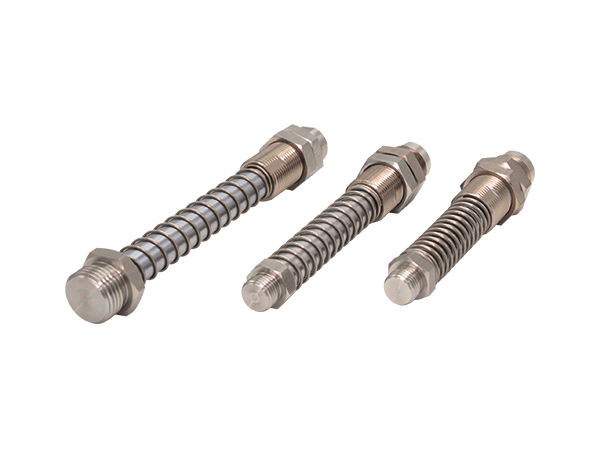

• Spring buffer rod

  • * The bottom is equipped with a buffer spring rod.
    * The spring buffer rod consists of high-strength stainless steel rods and high-quality plain bearings.
    * When handling workpieces with height differences in the suction level, lateral suction units can also be used.
    * Attack pressure-sensitive workpieces (such as glass) to ensure flexible contact.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The bottom is equipped with a buffer spring rod.
    The spring buffer rod consists of high-strength stainless steel rods and high-quality plain bearings.
    When handling workpieces with height differences in the suction level, lateral suction units can also be used.
    Attack pressure-sensitive workpieces (such as glass) to ensure flexible contact.

    Product mix
    The spring buffer support consists of high strength stainless steel rod, bearing sleeve (1) and lower buffer spring (3).
    The thread(4) connecting the suction cup usually has different specifications for external thread fittings.
    Two locking nuts (2) are used for reinforcement.

    Product advantages
    Flexible contact with sensitive workpieces, compensation and adjustment of the height difference of workpieces.
    Basically suitable for all sizes of suction cups, with a wide range of applications.
    Optional anti-rotation function.

    The fixed external spring buffer rod is installed on the flange to provide buffer effect

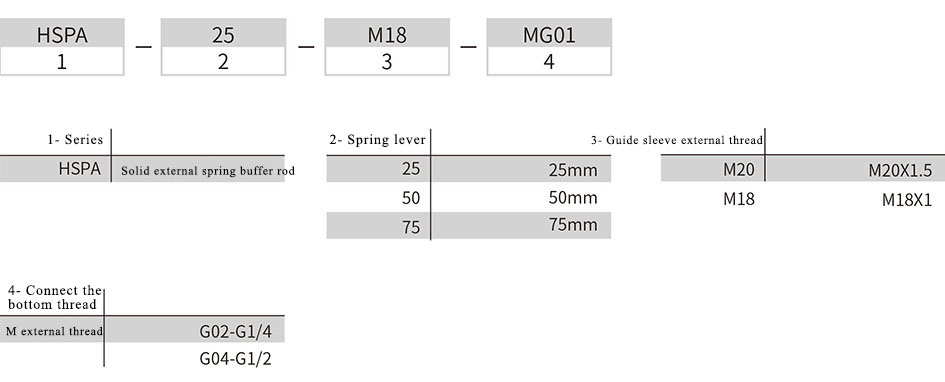

    Ordering no

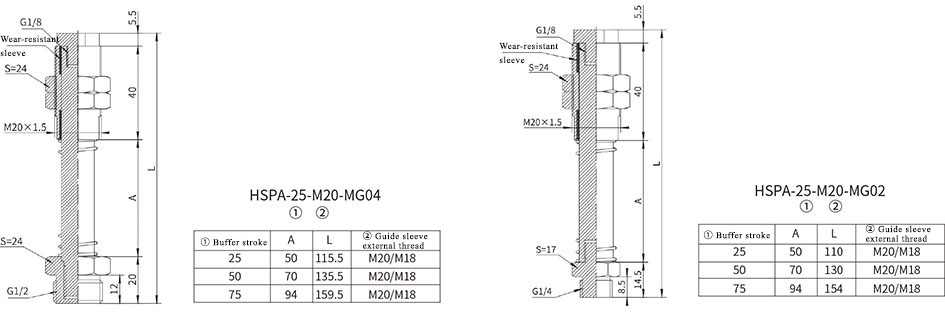

    Design data
