Spring buffer rod
* The bottom is equipped with a buffer spring rod.
* The spring buffer rod consists of high-strength stainless steel rods and high-quality plain bearings.
* When handling workpieces with height differences in the suction level, lateral suction units can also be used.
* Attack pressure-sensitive workpieces (such as glass) to ensure flexible contact.

Contact: +491727628103

Introduce
Design
Parameter

The bottom is equipped with a buffer spring rod.
The spring buffer rod consists of high-strength stainless steel rods and high-quality plain bearings.
When handling workpieces with height differences in the suction level, lateral suction units can also be used.
Attack pressure-sensitive workpieces (such as glass) to ensure flexible contact.

Product mix

The spring buffer support consists of high-strength stainless steel rod, bearing sleeve (2) and lower buffer spring (4).
The vacuum channel at the upper end of the support rod is equipped with an internal threaded connection (1).
The thread (5) connecting the suction cup usually has a maximum specification of m5 for internal threaded connections, while there are different specifications for external threaded connections.
Two locking nuts (3) are used for reinforcement.

Product advantages
Flexible contact with sensitive workpieces, compensation and adjustment of the height difference of workpieces.
Basically suitable for all sizes of suction cups, with a wide range of applications.

Several rows of through holes with external spring buffer rods, an example of a suction box.

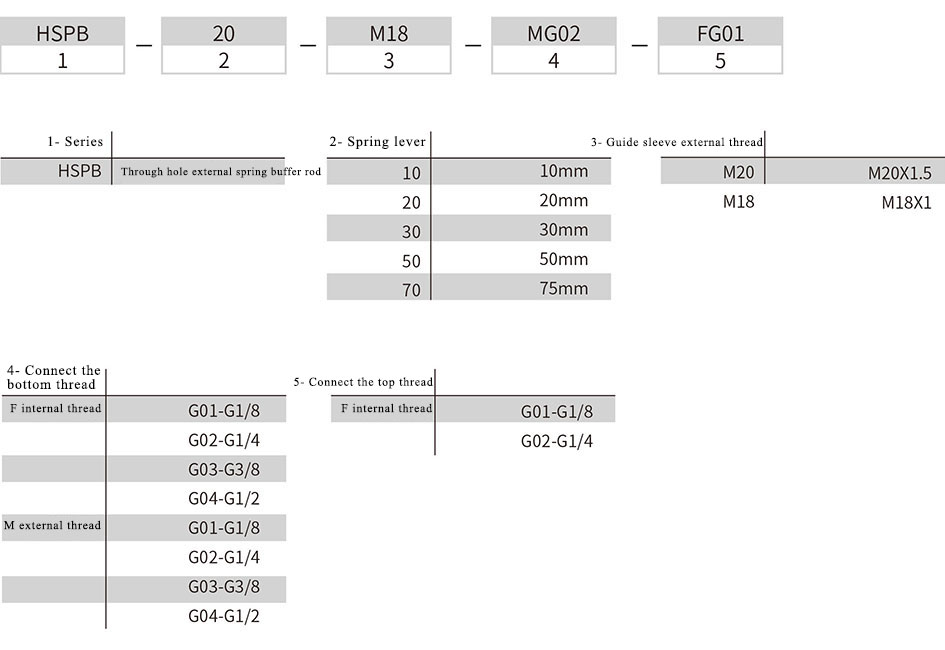

Ordering no

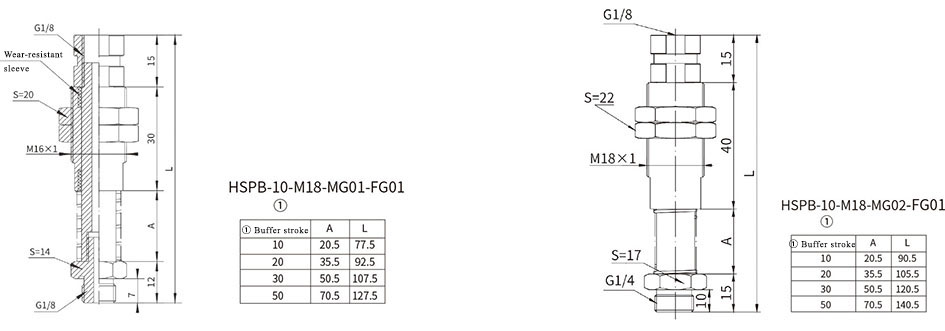

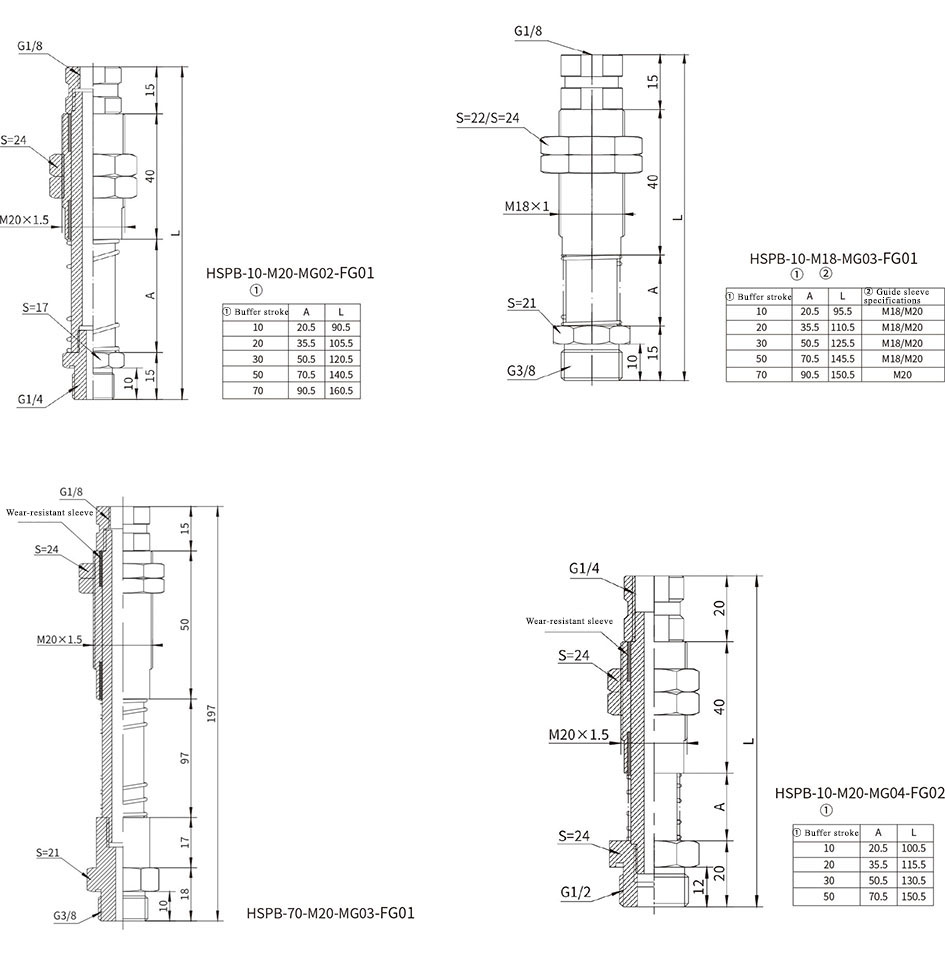

Design data
