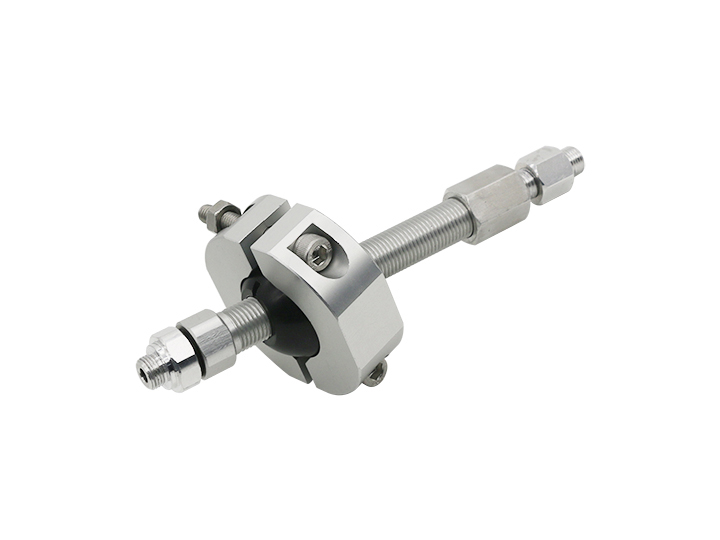

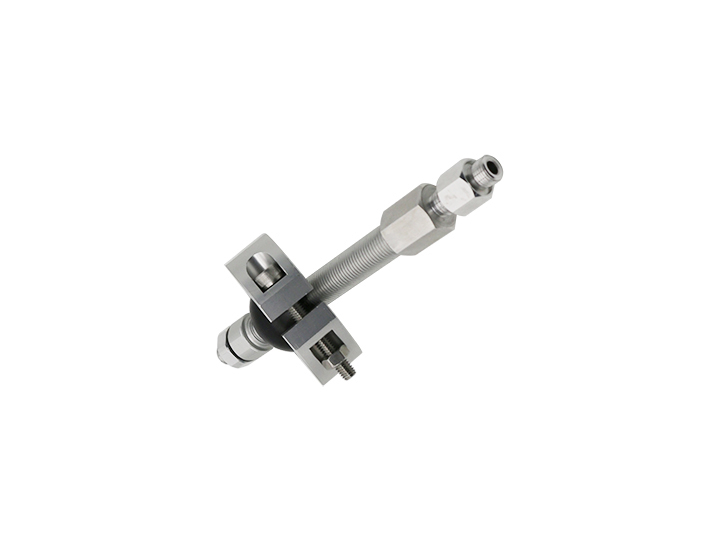

  • HHTR (Ball joint fixing clamp)

  • * Universal mounting clip for mounting vacuum components on existing square or circular tube cross beams, in conjunction with various adapter accessories.
    * Adjustable height and angle, flexible adaptation to workpieces, quick replacement and short adjustment time.
    * The vacuum cleaner with universal attachment clip is flexible and suitable for handling workpieces such as bent sheets.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Universal mounting clip for mounting vacuum components on existing square or circular tube cross beams, in conjunction with various adapter accessories.
    Adjustable height and angle, flexible adaptation to workpieces, quick replacement and short adjustment time.
    The vacuum cleaner with universal attachment clip is flexible and suitable for handling workpieces such as bent sheets.

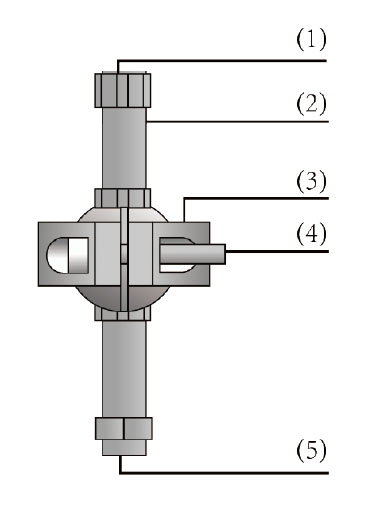

    Product mix
    High strength anodized aluminum oxide fastening clip, including fastening clip fittings(2), spherical clips(3), and can be matched and installed on various square and circular pipes.
    The g1/4 "thread on the lower part of the screw (5) is used to connect the suction cup, and the g1/4" thread on the upper part (1) is used to connect the vacuum line or linear vacuum generator.
    Including fixing screws (4).

    Product advantages
    Spherical clamping structure, quick and easy adjustment and fixation
    Adjustable height and inclination
    Applicable for the installation of square and round pipes
    The vacuum cleaner can be mounted directly on the connection thread

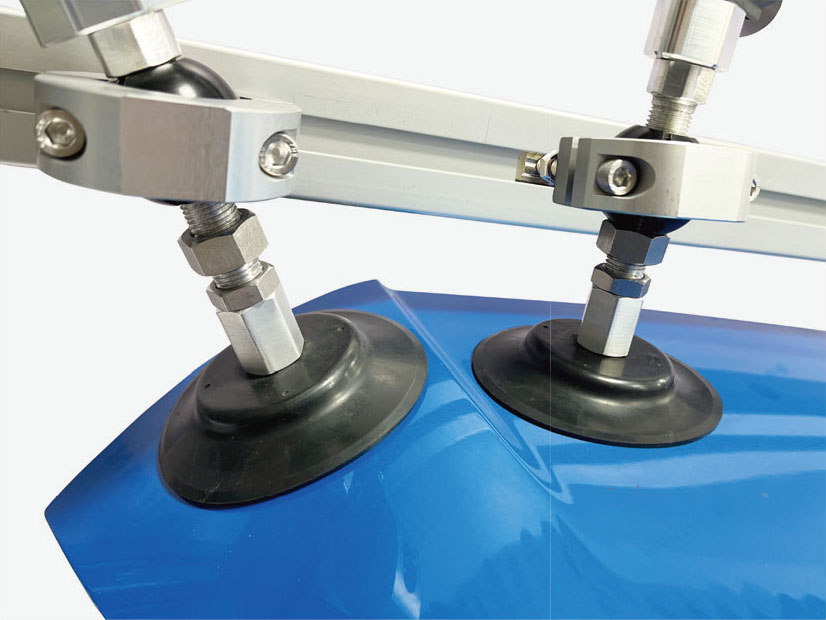

    Vacuum suction cups with universal attachment clip HHTR-G02 should be used for handling sheet metal

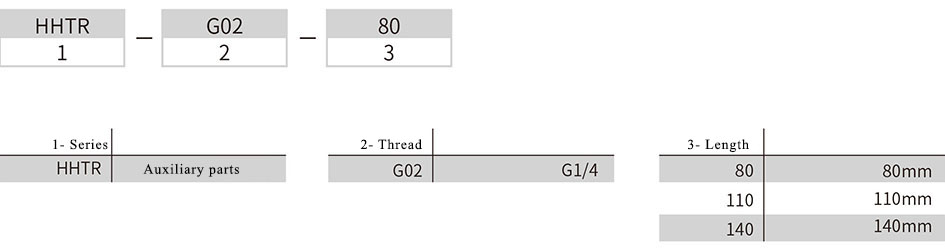

    Ordering no

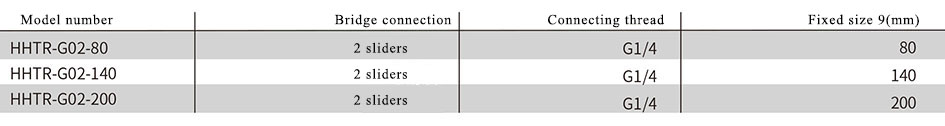

    Technical data

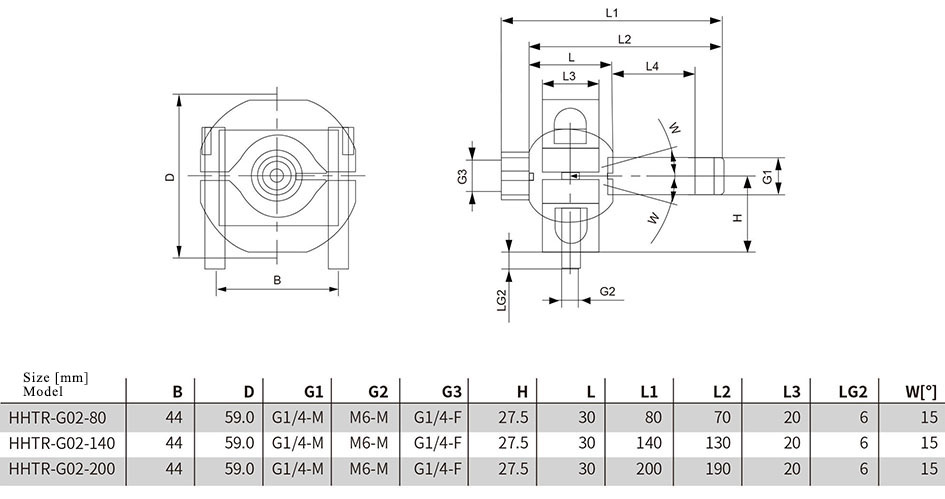

    Design data
