• Check valve

  • * For applications with multiple suction cups in vacuum systems, it can prevent suction cups that do not come into contact with the workpiece or suddenly detach from the workpiece from affecting the system.
    * Insulate the suction cups of the unabsorbed workpiece from the vacuum system and maintain the system vacuum level.
    * The same gripping system can process workpieces of different shapes and sizes, making the gripping system repeatable for different occasions.
    * Several nominal sizes.
    * Provide the external thread versions above (svk) or below (svkg).

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    For applications with multiple suction cups in vacuum systems, it can prevent suction cups that do not come into contact with the workpiece or suddenly detach from the workpiece from affecting the system.
    Insulate the suction cups of the unabsorbed workpiece from the vacuum system and maintain the system vacuum level.
    The same gripping system can process workpieces of different shapes and sizes, making the gripping system repeatable for different occasions.
    Several nominal sizes.
    Provide the external thread versions above (svk) or below (svkg).

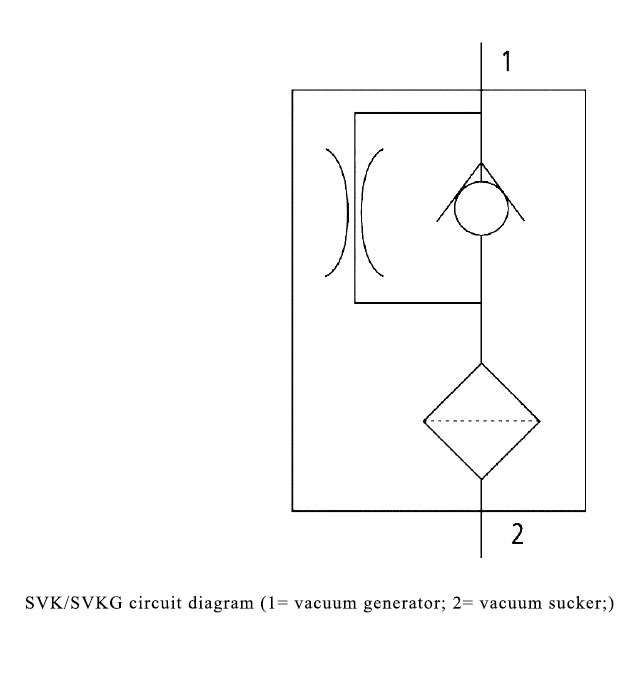

    Product mix
    1. Opposite F
    2. Ball valve
    3. Filter screen

    Product advantages
    Close the unused suction cup vacuum circuit to maintain the system vacuum
    Low leakage, can be compensated by bypass
    Can also be used in applications with high rated current
    Can be connected to all common suction cups and plates

    Ordering no

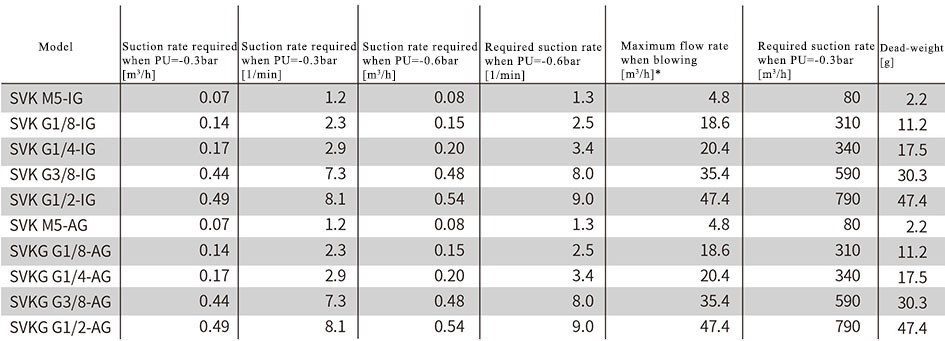

    Technical data

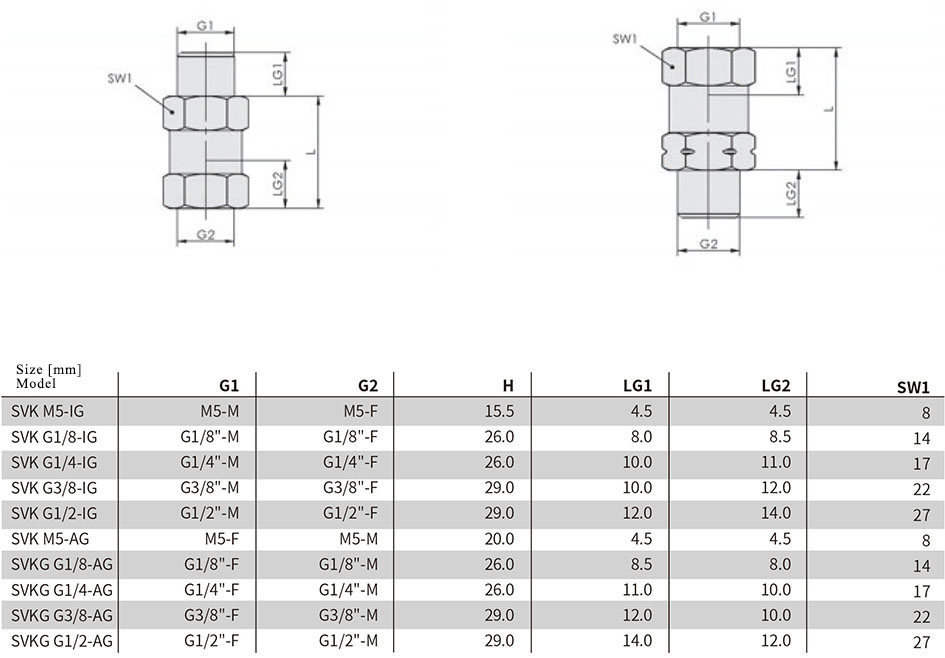

    Design data
