  • Valve body (manual)

  • * Maximum effective cross-sectional area 2.0-17.5mm²
    * The minimum distance of the operating torque is 0.004~0.1N. m
    * Outer diameter of pipeline Φ 4 incidents

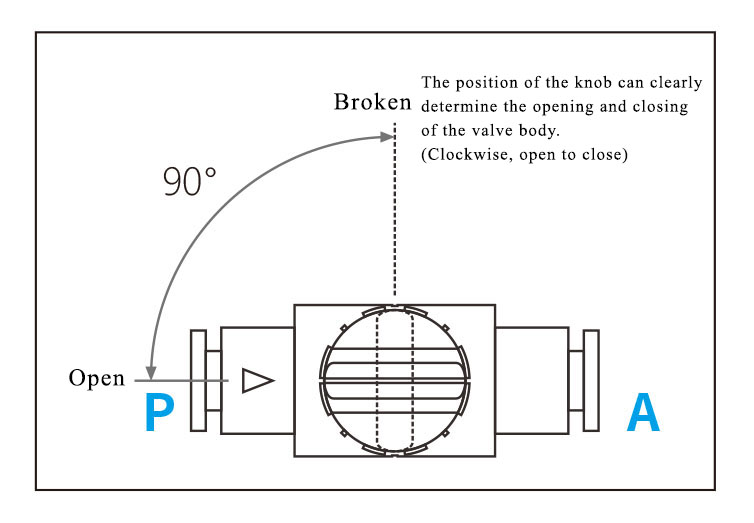

    * When the rotary knob of the 3-way valve is closed, residual gas is discharged from side A (there is no exhaust port in the valve body, and it is discharged along the knob structure)

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Maximum effective cross-sectional area 2.0-17.5mm²
    The minimum distance of the operating torque is 0.004~0.1N. m
    Outer diameter of pipeline Φ 4 incidents
    When the rotary knob of the 3-way valve is closed, residual gas is discharged from side A (there is no exhaust port in the valve body, and it is discharged along the knob structure)

    Product mix
    As accessories for vacuum sensors
    Button (1) Material POM
    Main body (2) Material PBT
    Release sleeve (3)

    Product advantages
    Suitable for many industrial automation fields, installed on the gas circuit to act as a switch.
    Using high quality pbt material, it has good pressure resistance and sealing performance, and is durable.

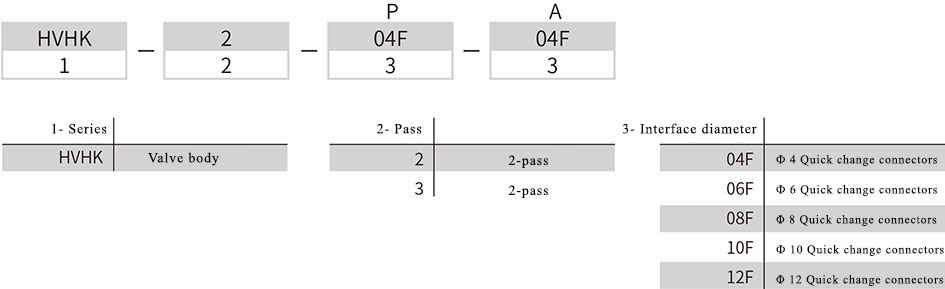

    Ordering no

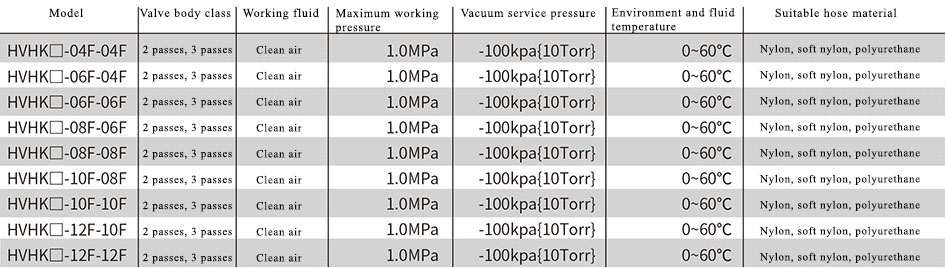

    Technical data

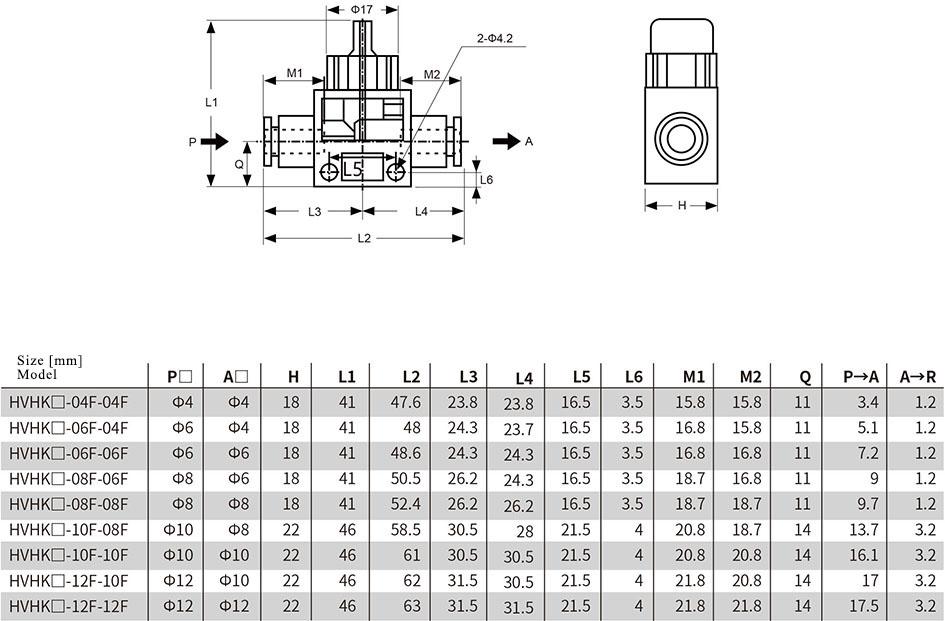

    Design data
