  • HGX series

  • *Very suitable for picking up fragile bags.
    *Even at lower vacuum levels, thin lips can achieve excellent sealing effects.
    *The integrated suction cup can securely and stably fix products in fast/semi fast robot applications.
    *The multi corrugated tube design can compensate for height differences and uneven surfaces.
    *Organic silicon materials comply with FDA 21 CFR 177.2600 and EU 1935/2004.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Very suitable for picking up fragile bags.
    Even at lower vacuum levels, thin lips can achieve excellent sealing effects.
    The integrated suction cup can securely and stably fix products in fast/semi fast robot applications.
    The multi corrugated tube design can compensate for height differences and uneven surfaces.
    Organic silicon materials comply with FDA 21 CFR 177.2600 and EU 1935/2004.

    Within the same series, replacement suction cups and suction cup connectors can be combined according to requirements

    Product mix
    Suction cups with thin and flexible sealing lips include flat suction cup HFA (1) or corrugated suction cup HFB1.5 fold (2) and connecting elements (3).
    The inner support surface has a honeycomb structure and excellent vacuum distribution.
    Suction area (+) ranging from 10mm to 40mm.

    Product advantages
    Suitable for high and low temperature applications.
    It can be configured for personalized applications in industries such as e-commerce, fast-moving consumer goods, secondary food pickup, and fashion.

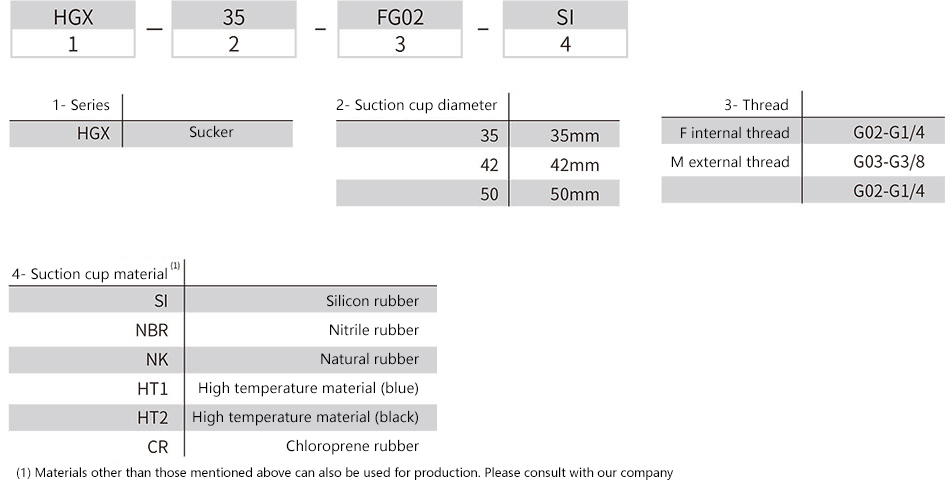

    Ordering no

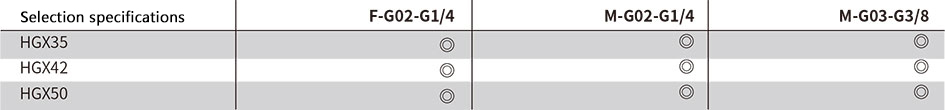

    Selection specifications

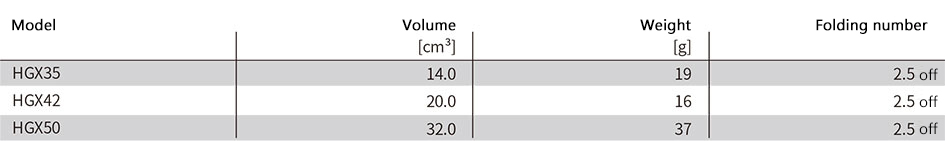

    Technical data

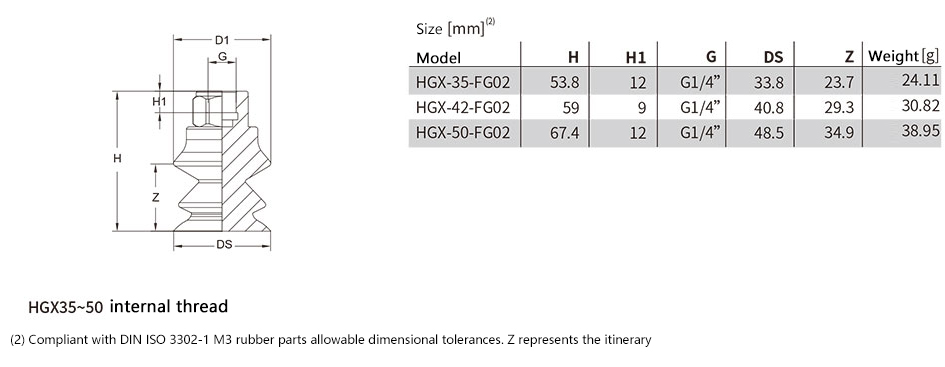

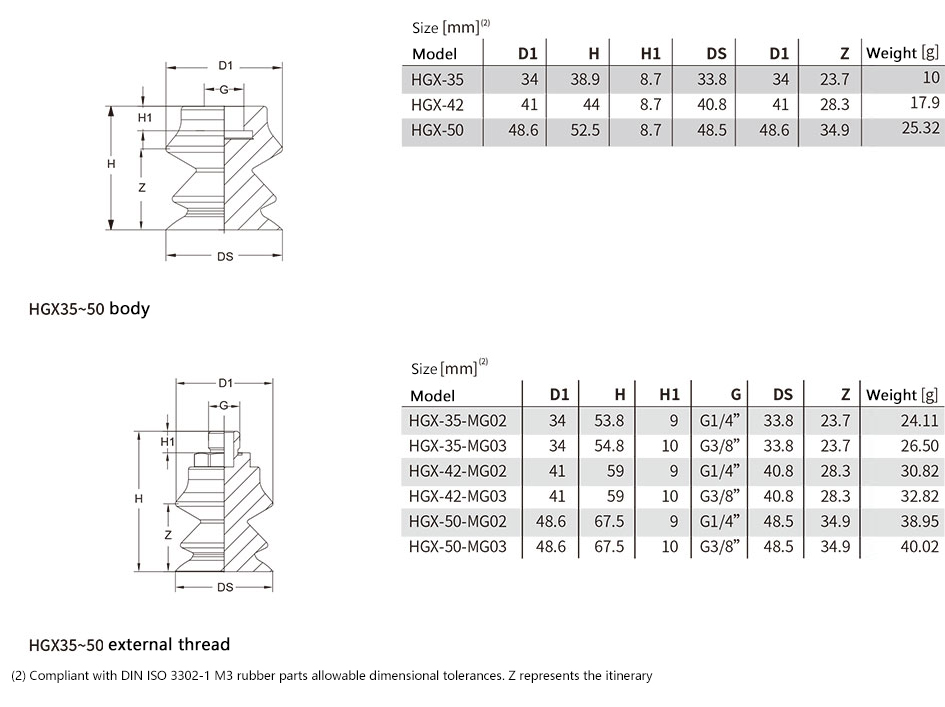

    Design data



Prev：HBG series
Next：HP series
