  • HP series

  • *Provide strong adsorption force to ensure stability and reliability of suction.
    *Rubber and metal skeleton are pressed together to provide necessary support.
    *Multiple rubber material characteristics, high temperature resistance, wear resistance, and aging resistance.
    *Special anti-static materials are suitable for the 3C electronics industry.
    *Suitable for transporting packaging paper boxes, small semiconductors, spherical objects, food, etc.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Provide strong adsorption force to ensure stability and reliability of suction.
    Rubber and metal skeleton are pressed together to provide necessary support.
    Multiple rubber material characteristics, high temperature resistance, wear resistance, and aging resistance.
    Special anti-static materials are suitable for the 3C electronics industry.
    Suitable for transporting packaging paper boxes, small semiconductors, spherical objects, food, etc.

    Product mix
    Adapter (1) (2)
    Suction cup body (3)

    Product advantages
    Applied to various situations that require precise grasping and movement of objects.
    Through panel installation, it is easy to fix suction cups in specific positions.

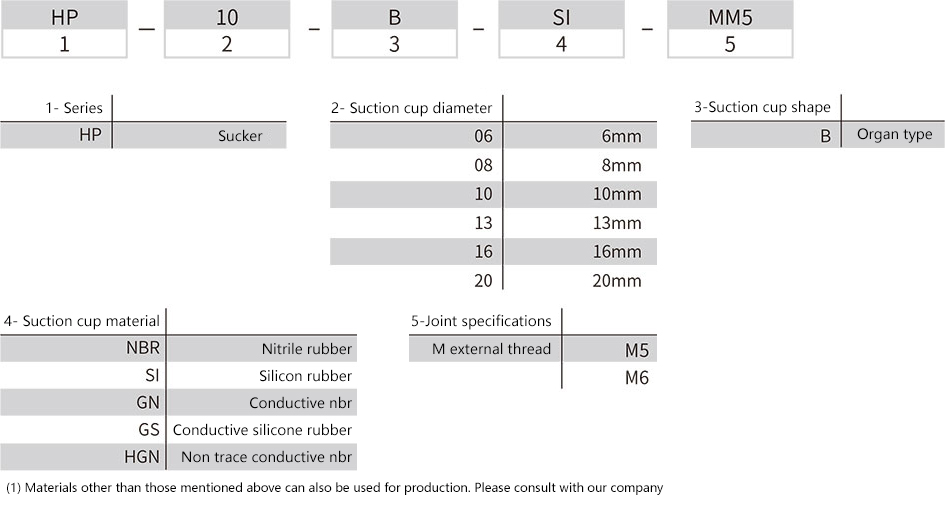

    Ordering no

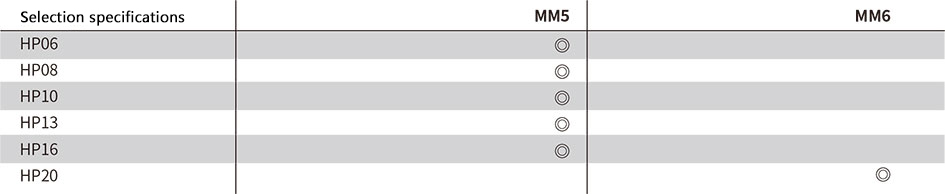

    Selection specifications

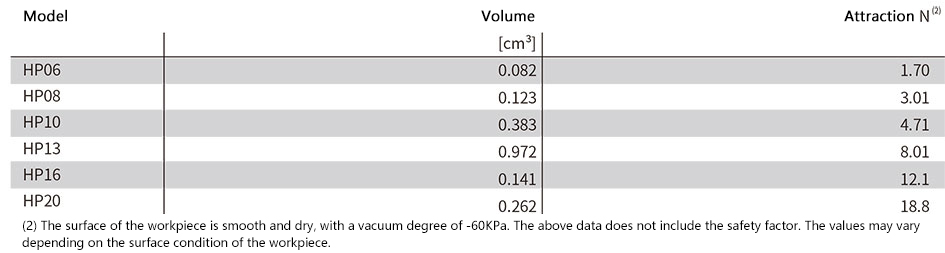

    Technical data

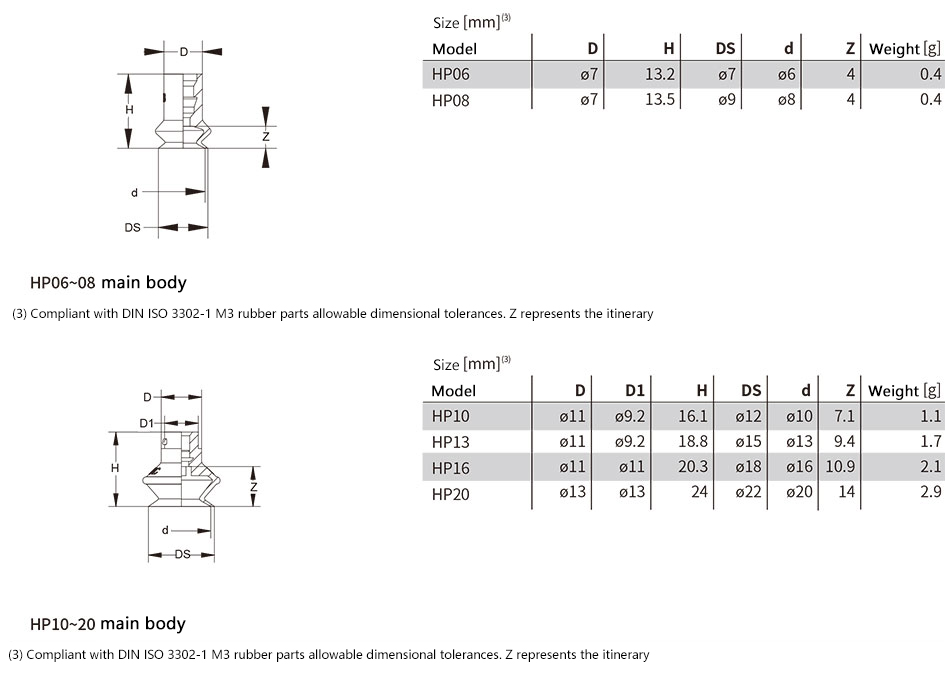

    Design data
