  • HVGB

  • * The bowl is made of high quality stainless steel.
    * The vacuum source can be equipped with an external fan or generator.
    * Large internal cavity structure.
    * The shell is made of stainless steel material, and a flange mounting hole is reserved at the top.
    * Adoption of a large-area elliptical inner hollow structure design.
    * The adsorption adopts foam sponge, which has good sealing performance and long service life.The sponge can be purchased separately and replaced by itself.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The bowl is made of high quality stainless steel.
    The vacuum source can be equipped with an external fan or generator.
    Large internal cavity structure.
    The shell is made of stainless steel material, and a flange mounting hole is reserved at the top.
    Adoption of a large-area elliptical inner hollow structure design.
    The adsorption adopts foam sponge, which has good sealing performance and long service life.The sponge can be purchased separately and replaced by itself.

    Product mix
    Main body: made of aluminum alloy, small in size and light in weight
    (1) Air inlet: connected to the fan
    (2) Connection: blowback interface
    (3) Install screws: tighten the screws and adjust them to remove the side wall

    Product advantages
    High strength, mainly used in high load conditions
    Realize stable and fast product grabbing
    Increase the adsorption surface and increase the adsorption force

    Example of sponge suction tool HVG suction plastic cover

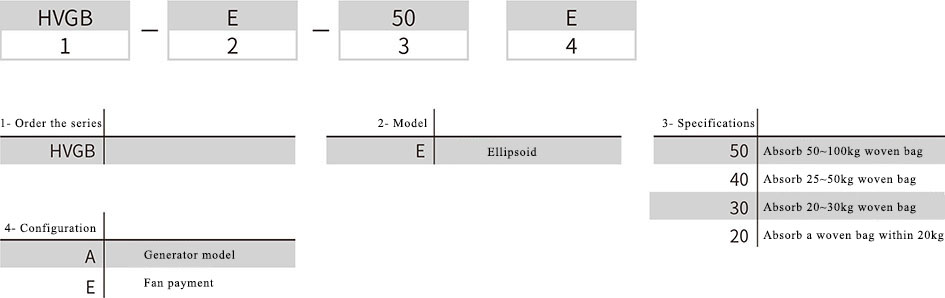

    Ordering no

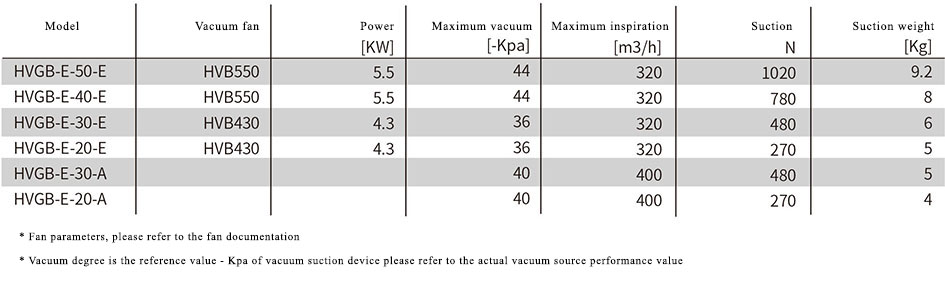

    Technical data

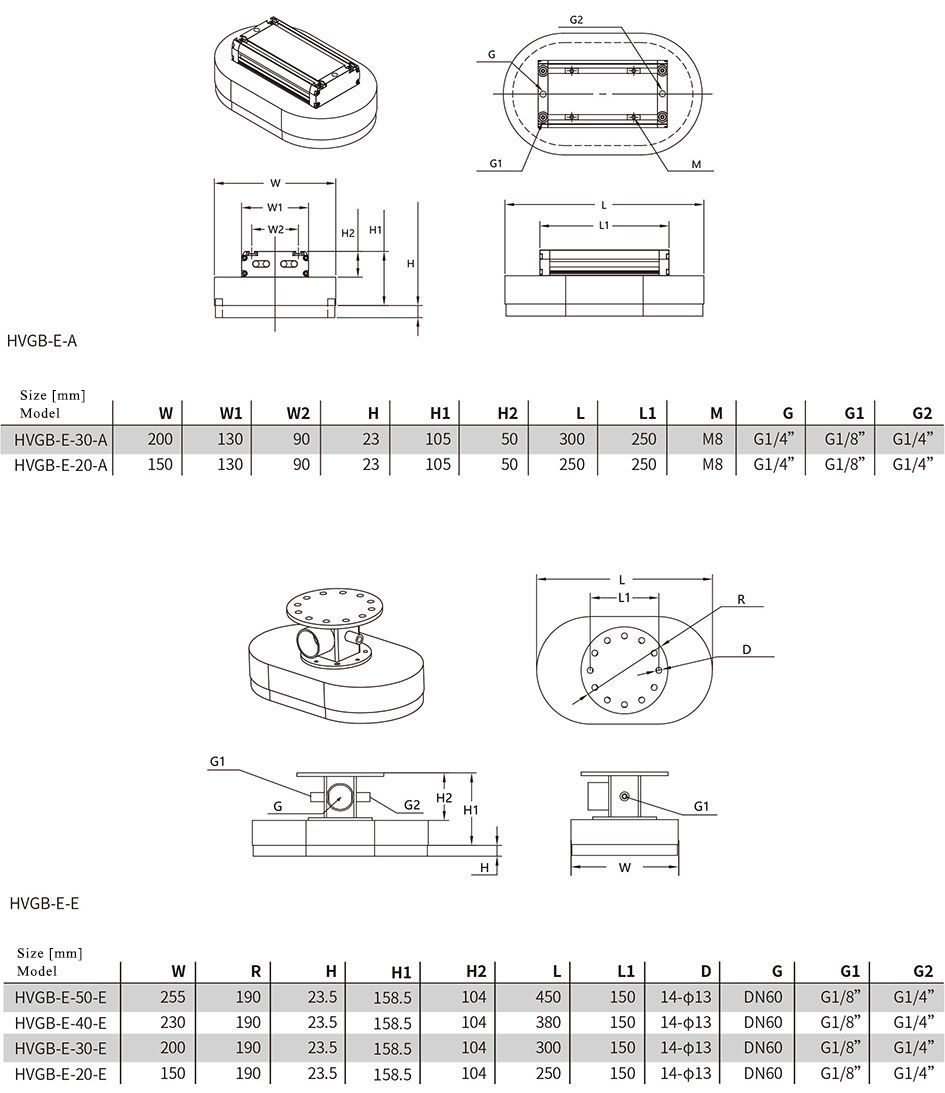

     Design data
