• HVG

  • * Suitable for packaging processes, handling packaging cartons and other types of packaging products.
    * Small and lightweight, suitable for integration into packaging machines such as packaging machines.
    * Can be used with endpicks to transport easily curved workpieces such as metal plates and plywood.
    * The suction device is equipped with a built-in vacuum generating unit.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Suitable for packaging processes, handling packaging cartons and other types of packaging products.
    Small and lightweight, suitable for integration into packaging machines such as packaging machines.
    Can be used with endpicks to transport easily curved workpieces such as metal plates and plywood.
    The suction device is equipped with a built-in vacuum generating unit.

    Product mix
    (1) Installation holes
    (2) P: Thread G1/8, air inlet
    (3) Vacuum valve
    (4) Imported sponge pad
    (5) The instrument contains a high quality generator inside

    Product advantages
    Suitable for various occasions that require air bubbles and have a short working cycle, such as plastic plates, automotive industry, packaging machines and industrial robots.

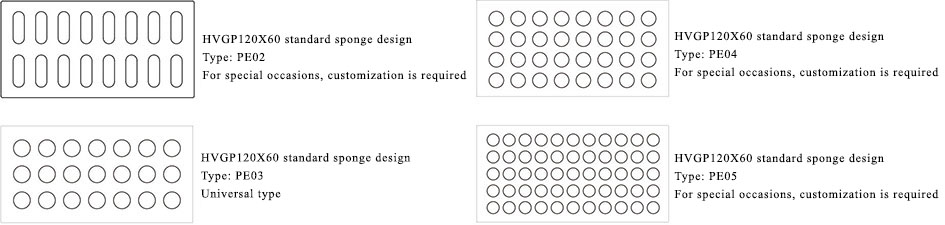

    Example of sponge suction tool HVG suction plastic bag

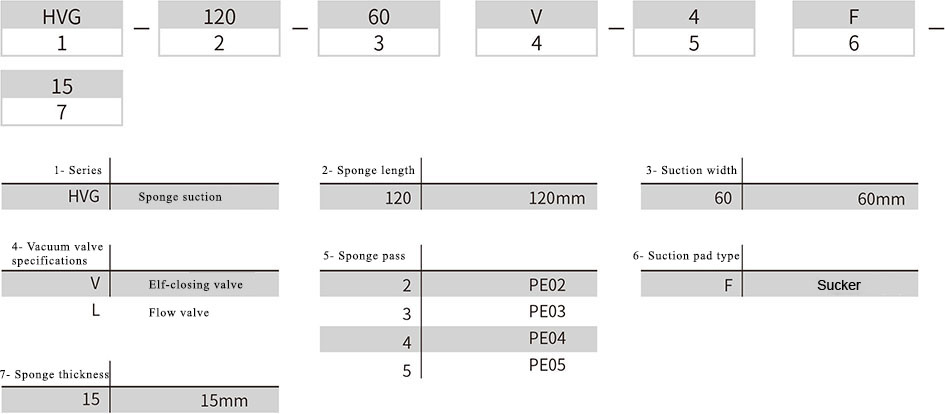

    Ordering no

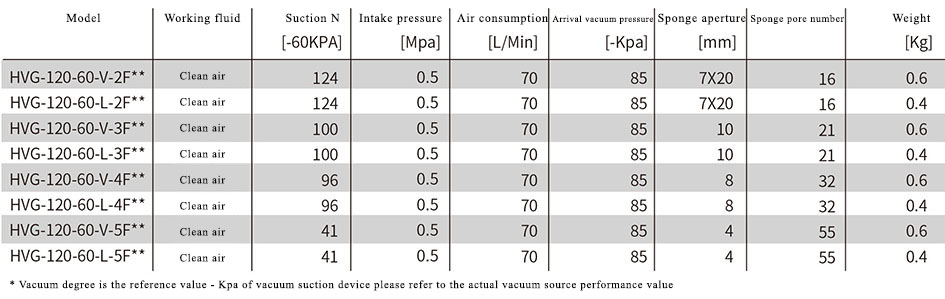

    Technical data

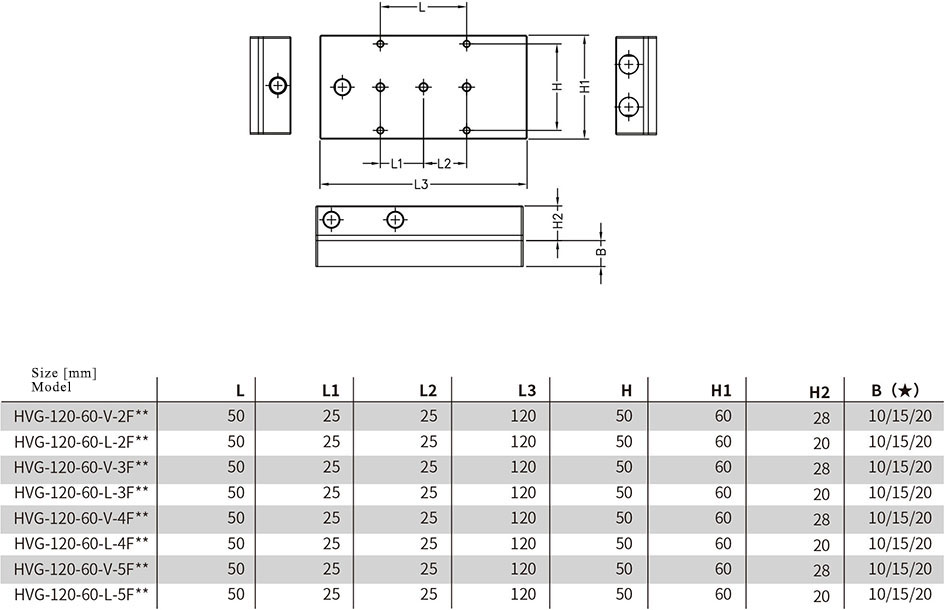

    Design data


    Ordering no



    Technische daten


    Design data
