  • Series 37 type a pressure sensor

  • * Electronic vacuum switch with LED display.
    * Output has npn or pnp.
    * The vacuum connection diameter is r1/8 or m5.
    * Small size, light weight and wide range of use.
    * Used for vacuum degree detection in vacuum systems, optimizes work cycles and improves economic benefits.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Electronic vacuum switch with LED display.
    Output has npn or pnp.
    The vacuum connection diameter is r1/8 or m5.
    Small size, light weight and wide range of use.
    Used for vacuum degree detection in vacuum systems, optimizes work cycles and improves economic benefits.

    (Note 1): When setting the unit to units other than "Mpa" or "Kpa", please attach the unit corresponding to the set unit.

    Product mix
    (1) Output 1/Working status light comparison, lights up when output 1 is ON
    (2) Analog conversion button MODE
    (3) Device display (Note 1)
    (4) Main display
    (5) Secondary display screen
    (6) Set value button down
    (7) Set value button UP
    (8) Pressure hole

    Product advantages
    Digital display of electronic pressure switch
    Switching points and hysteresis can be set via buttons
    Switching point and hysteresis independent programming, digital output
    Special functions programmable

    Installation example for pressure sensors of the 37 series

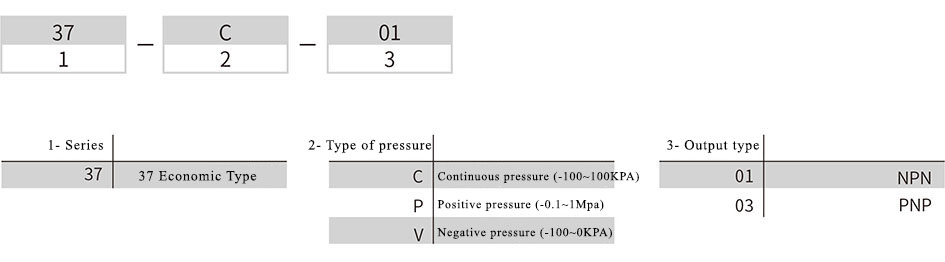

    Ordering no

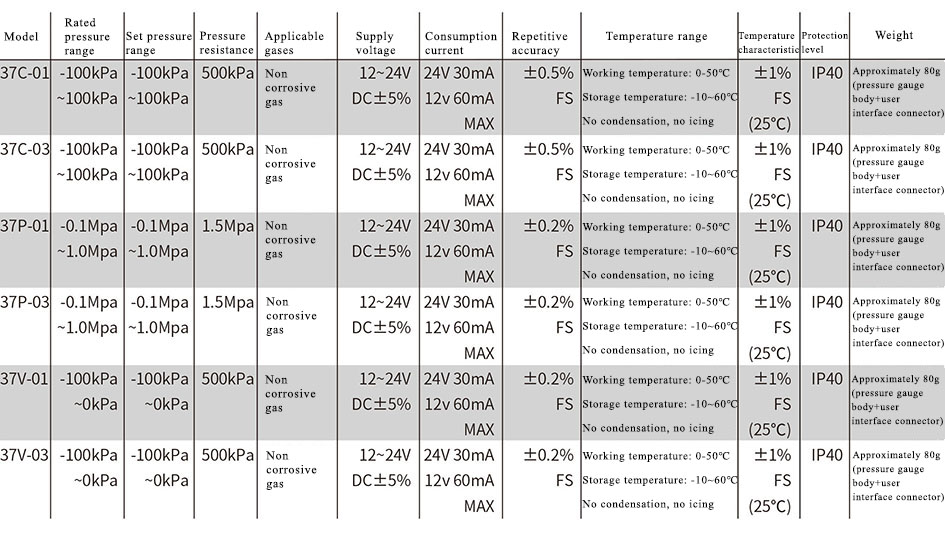

    Technical data

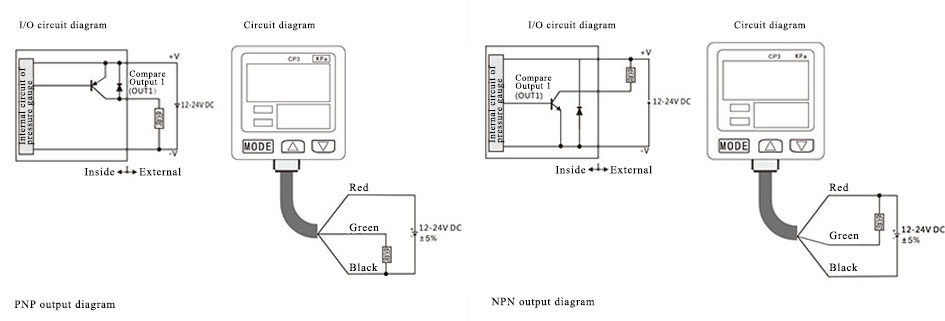

    Design data
