Auxiliary components
* Improving conventional processes through front bearing increases working stability.
* Using some imported accessories to extend the service life.
* The housing is made of high quality aluminum alloy by one-time die casting, and the processing of components is completed during cutting, ensuring accuracy and improving traditional processes.
* The design of the impeller has been accurately calculated and certified, resulting in a 20% improvement in performance compared to similar products at the same performance.

Contact: +491727628103

Introduce
Design
Parameter

Improving conventional processes through front bearing increases working stability.
Using some imported accessories to extend the service life.
The housing is made of high quality aluminum alloy by one-time die casting, and the processing of components is completed during cutting, ensuring accuracy and improving traditional processes.
The design of the impeller has been accurately calculated and certified, resulting in a 20% improvement in performance compared to similar products at the same performance.

Product mix

The impeller of the air ring pump is installed directly on the motor rotor, which is completely non-contact compressed. By installing the pump shaft outside the compression chamber, the maximum operational safety of the machine can be ensured even when working with maximum pressure difference.

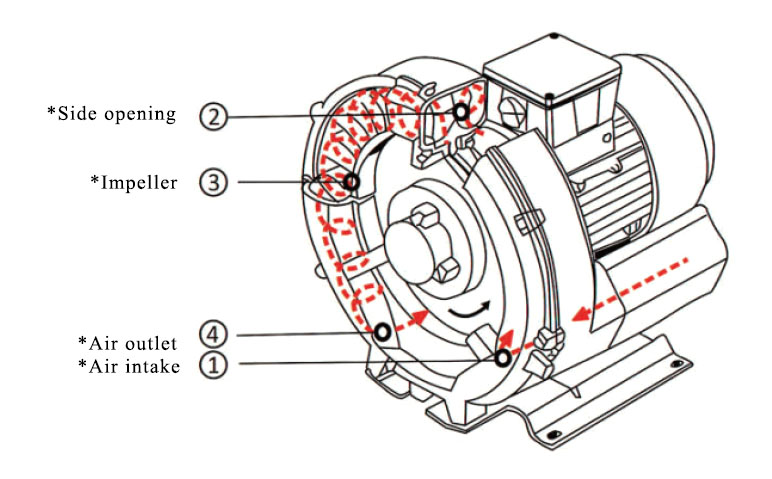

The gas is sucked in from the suction port 1, but after it enters the side channel 2, the rotating impeller 3 gives the gas a speed in the direction of rotation, while the centrifugal force on the blade accelerates the gas outwards and increases the pressure.
As rotation progresses, the kinetic energy of the gas increases and further increases the gas pressure along the side channel. As the side channel at the outlet narrows, the gas is pressed out of the blades and discharged from the pump body through the exhaust silencer 4.

Product advantages

Flexible connection of vacuum cleaners
Ball and bush with O-ring seals
The pivot point of the curved part is low

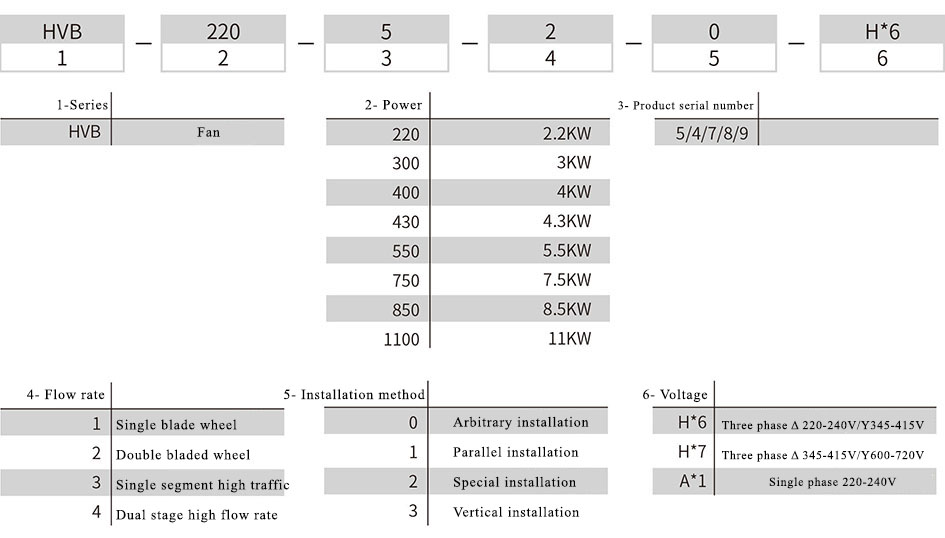

Ordering no

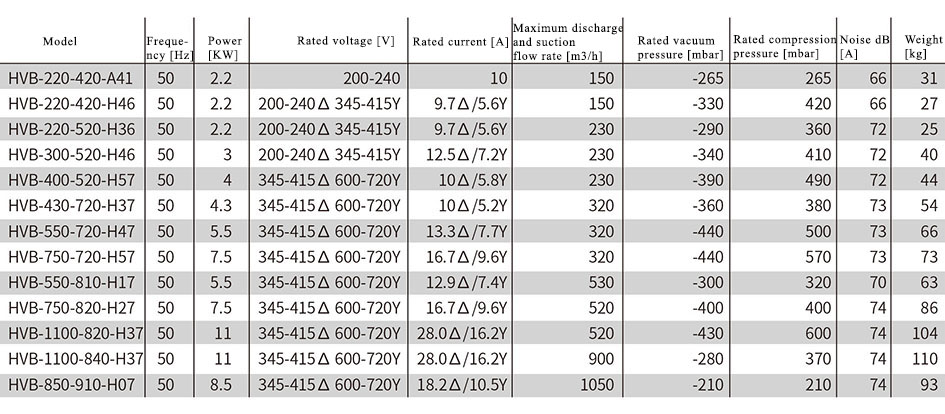

Technical data

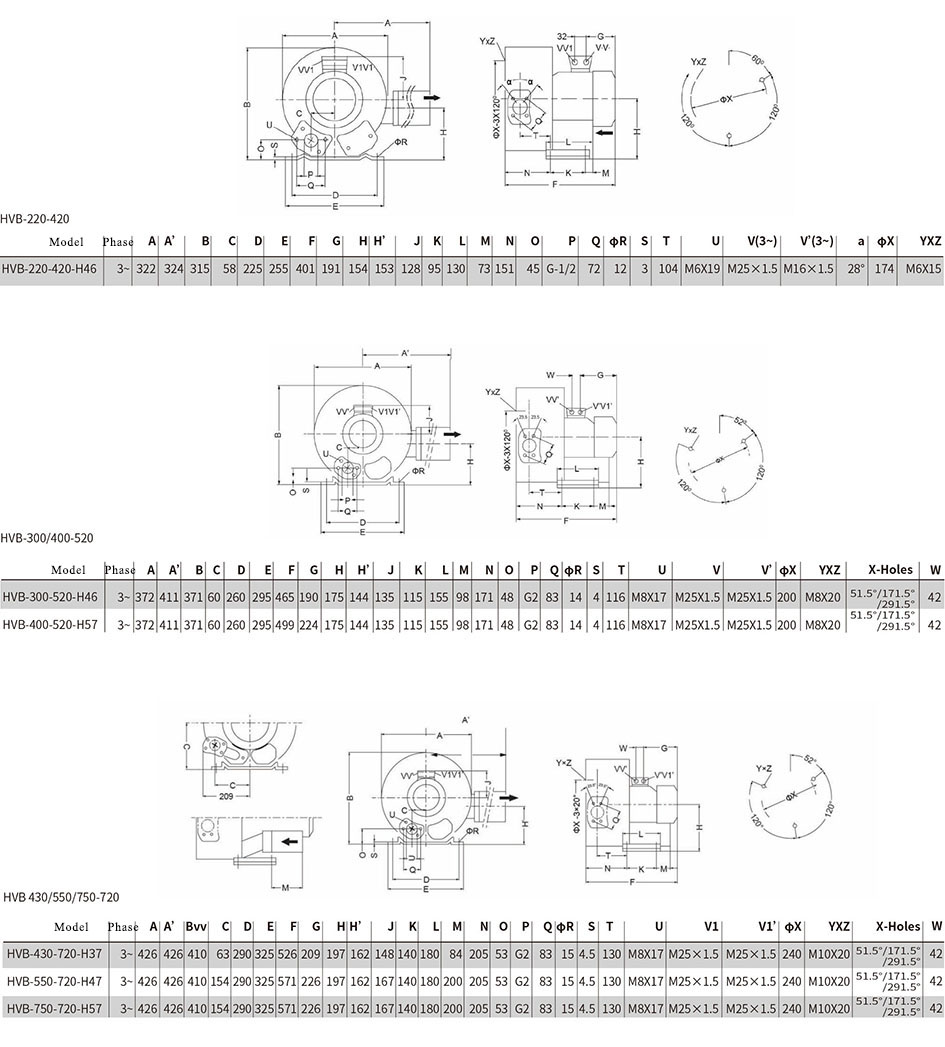

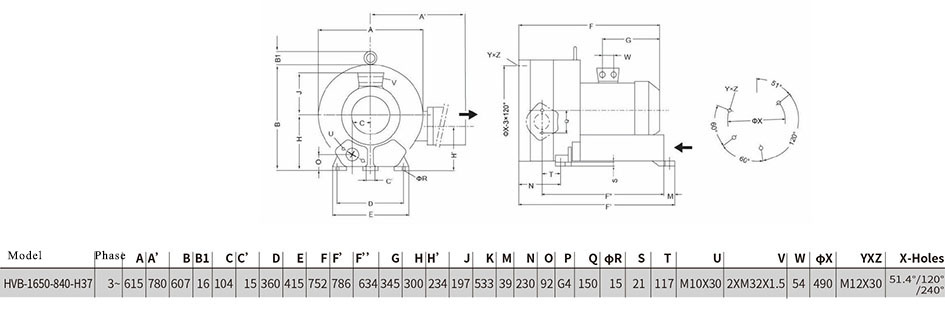

Design data

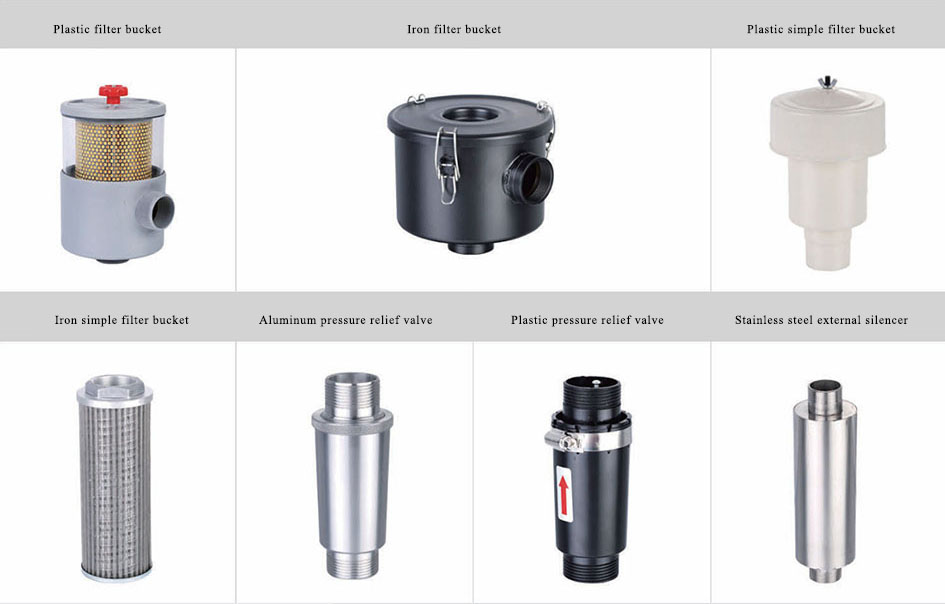

Optional accessories
