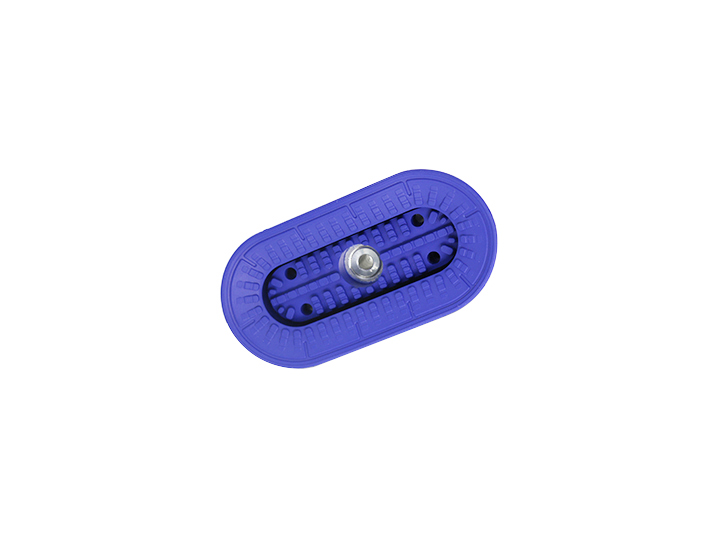

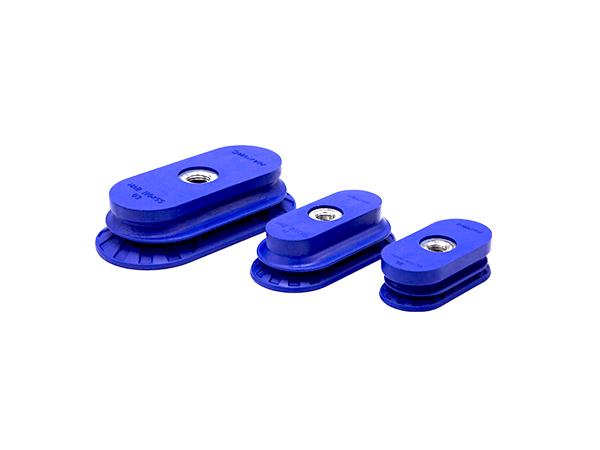

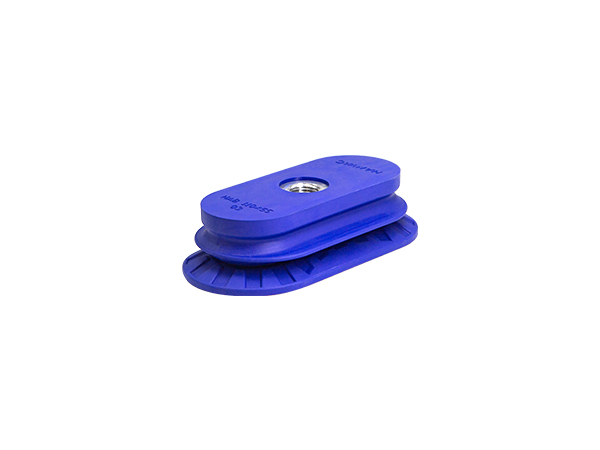

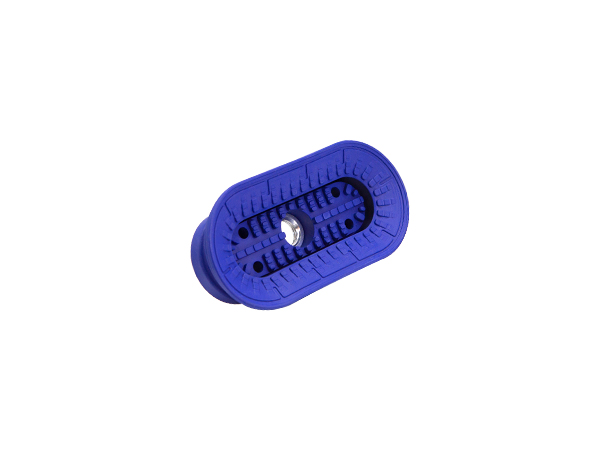

Elliptical suction cup
* Used for fast handling of metal sheets.
* There will be no dents or deformations when handling metal sheets.
* The ripple shape has good compatibility with the workpiece.
* A handling system for stamping production lines in the automotive industry.
* The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during transportation, ensuring precise positioning of the workpiece in the press.

Contact: +491727628103

Introduce
Design
Parameter

Used for fast handling of metal sheets.
There will be no dents or deformations when handling metal sheets.
The ripple shape has good compatibility with the workpiece.
A handling system for stamping production lines in the automotive industry.
The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during transportation, ensuring precise positioning of the workpiece in the press.

Product mix
Durable and wear-resistant 1.5-fold corrugated suction cup made of nbr material, with special grooves and internal support structure.
The suction cup and the joint are fixed by vulcanization.
The suction cup has several connection forms to choose from.

Product advantages
Suitable for workpieces of different shapes and sizes.
Perfect fit with uneven workpiece surface, with good sealing and damping performance.
Has extremely strong horizontal and lateral grip.
It does not cause deformation of the workpiece and can also provide strong non-slip lateral force when handling sheets with oily surfaces.

HAB suction cup handling of workpiece surface with long strips

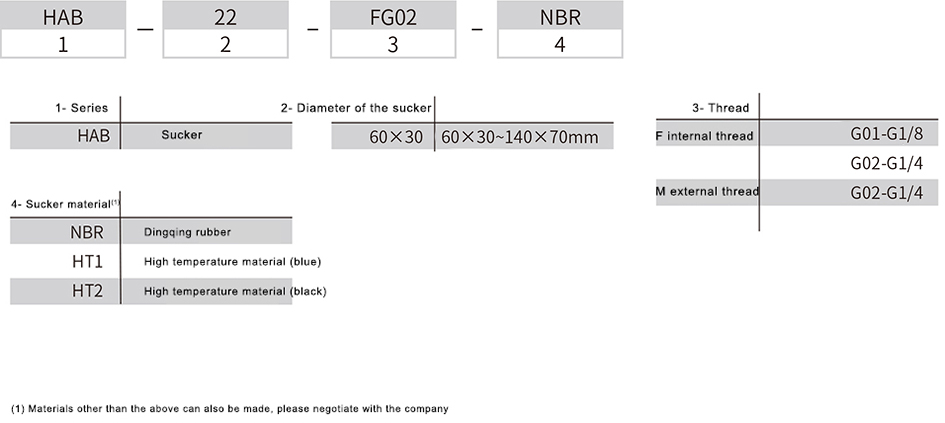

Ordering no

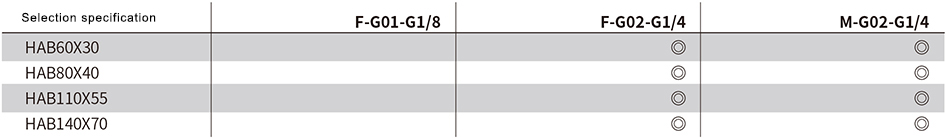

Selection specifications

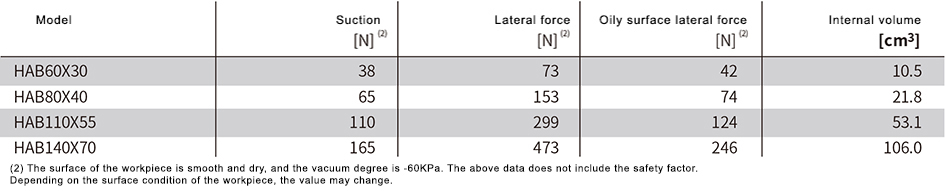

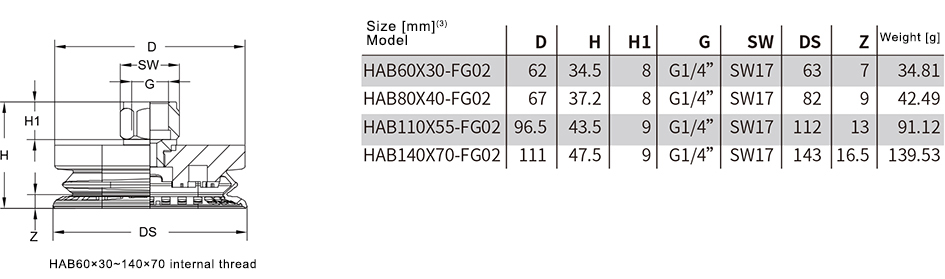

Technical data

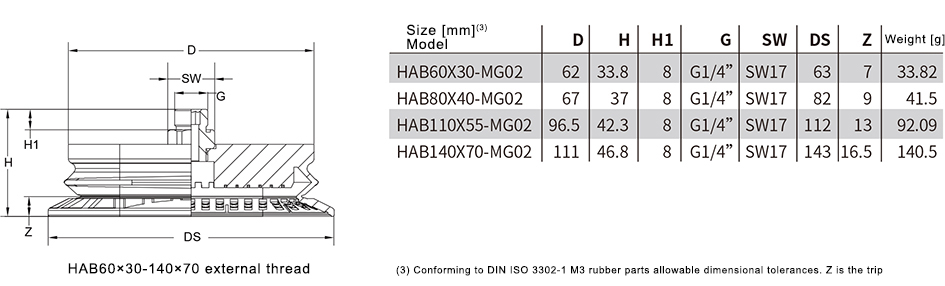

Design data
