Product

HVGP60-SE
* Suitable for corrugated cardboard, plywood, iron sheet, and other general workpieces.

Contact: +491727628103

Introduce
Design
Parameter

Medium sized standardized design.
Convenient and simple maintenance.
Made of lightweight and tough high-strength aluminum profiles.
Built in multi-stage vacuum generator module.
Adopting HANWHA's unique valve body technology.
Different suction cup specifications are suitable for a wider range of workpiece applications.
High performance imported materials with longer service life.

Product mix
(1) Fan pump.
(2) Exhaust hole with noise reduction function.
(3) Compressed air intake.
(4) Aluminum profiles, customizable.

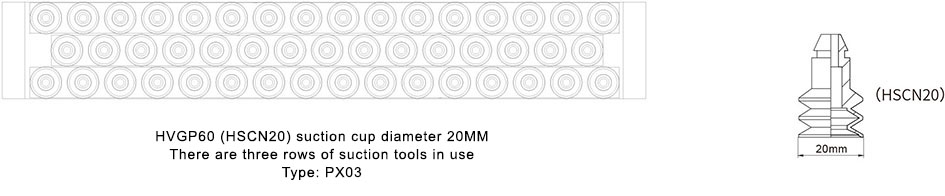

(5) The sturdy and wear-resistant 2.5 fold suction cup is made of flexible and flexible material, making it easy to fit the workpiece.

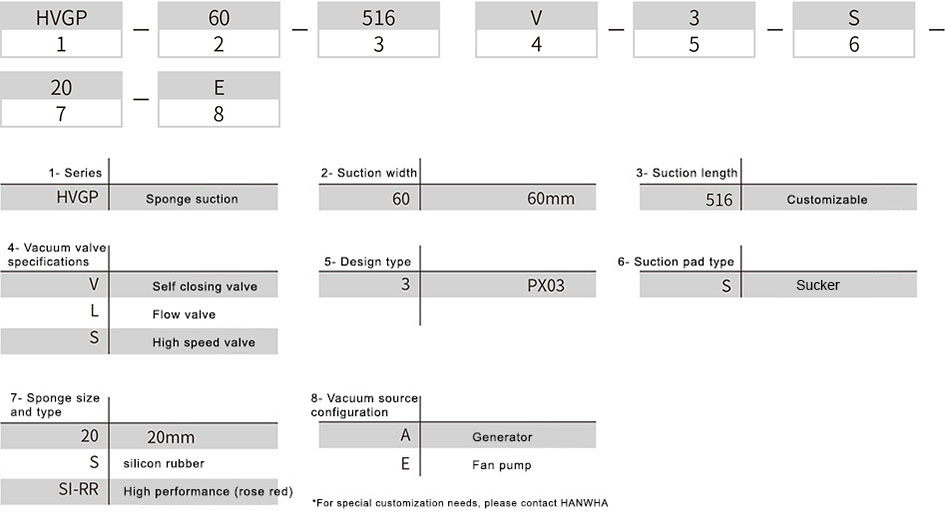

Ordering no

Selection specifications

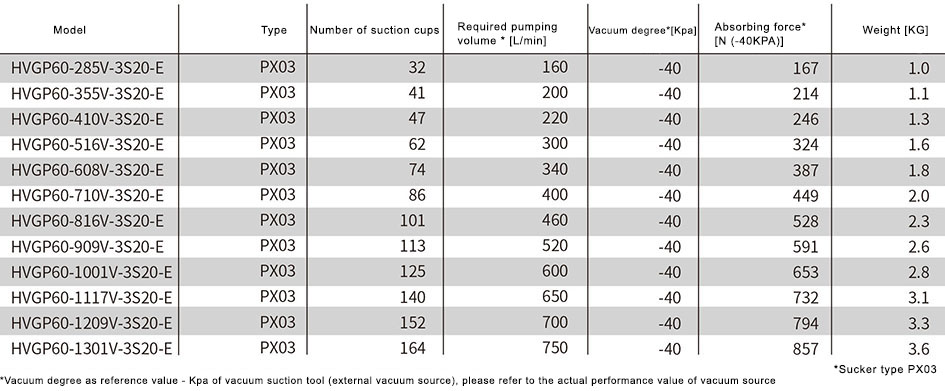

Technical data

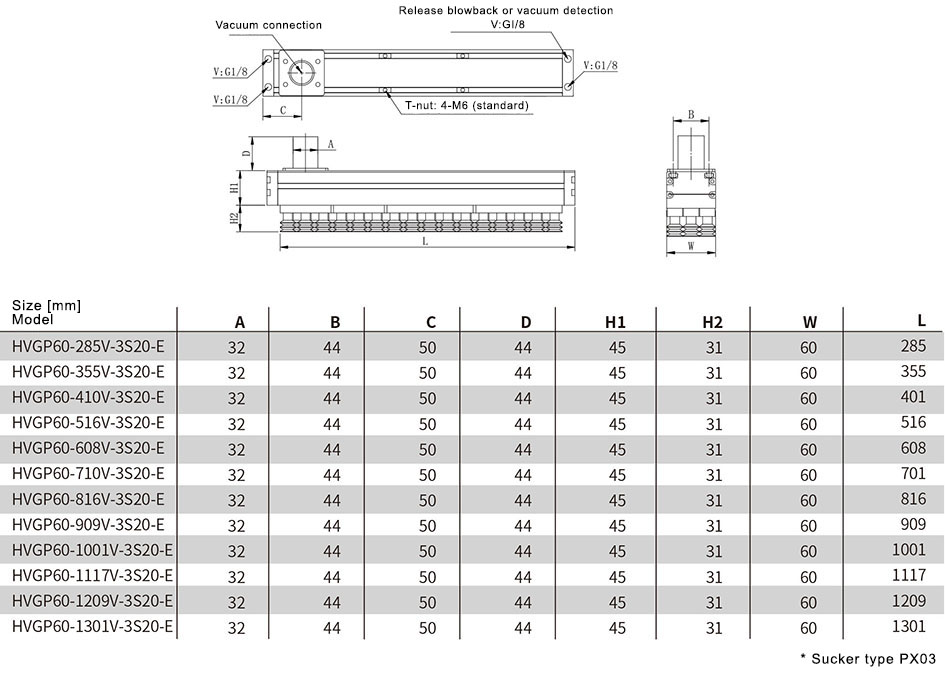

Design data

Prev：HVGP200-SA

Next：HVGP80-SE
