Product

  • HVGP80-SE

  • * Medium sized standardized design.
    * Convenient and simple maintenance.
    * Using lightweight and tough high-strength aluminum profiles.
    * External vacuum source design.
    * Adopting HANWHA's unique valve body technology.
    * Different suction cup specifications are suitable for a wider range of workpiece applications.
    * High performance imported materials have a longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Product mix
    (1) Fan pump
    (2) Exhaust hole with noise reduction function.
    (3) Compressed air intake.
    (4) Aluminum profiles, customizable.
    (5) A sturdy and wear-resistant 2.5-fold suction cup, with a flexible and flexible material that easily fits the workpiece.
    Product advantages
    Handling wooden boards, cardboard boxes, metal sheets, glass, plastics, etc.
    Handling uneven and perforated parts.
    Transport and pick workpieces without fixed positions.
    Handling sensitive parts such as display screen glass.

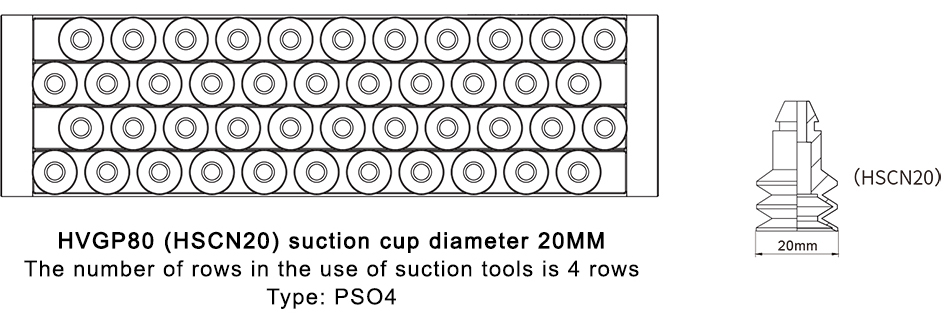

    Example of HVGP suction packaging for suction cups and tools

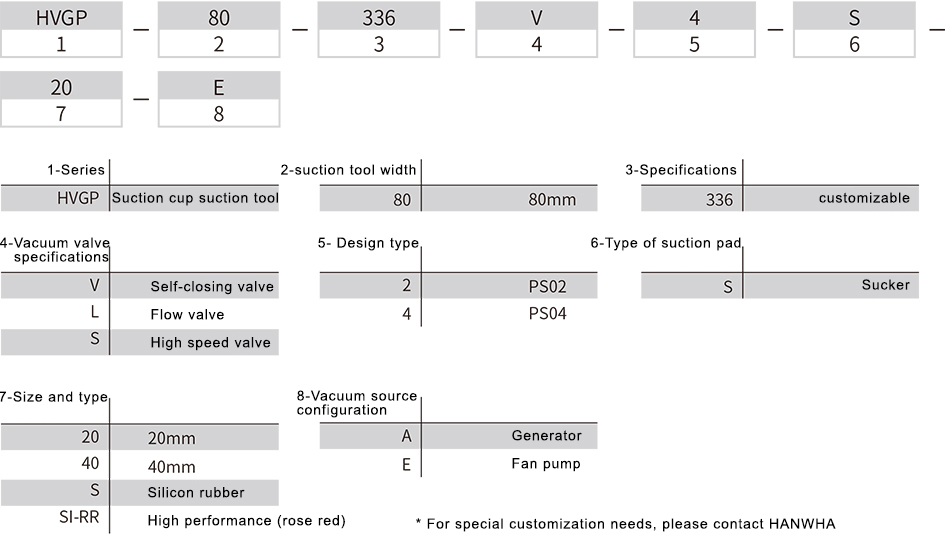

    Ordering no



    Selection specifications

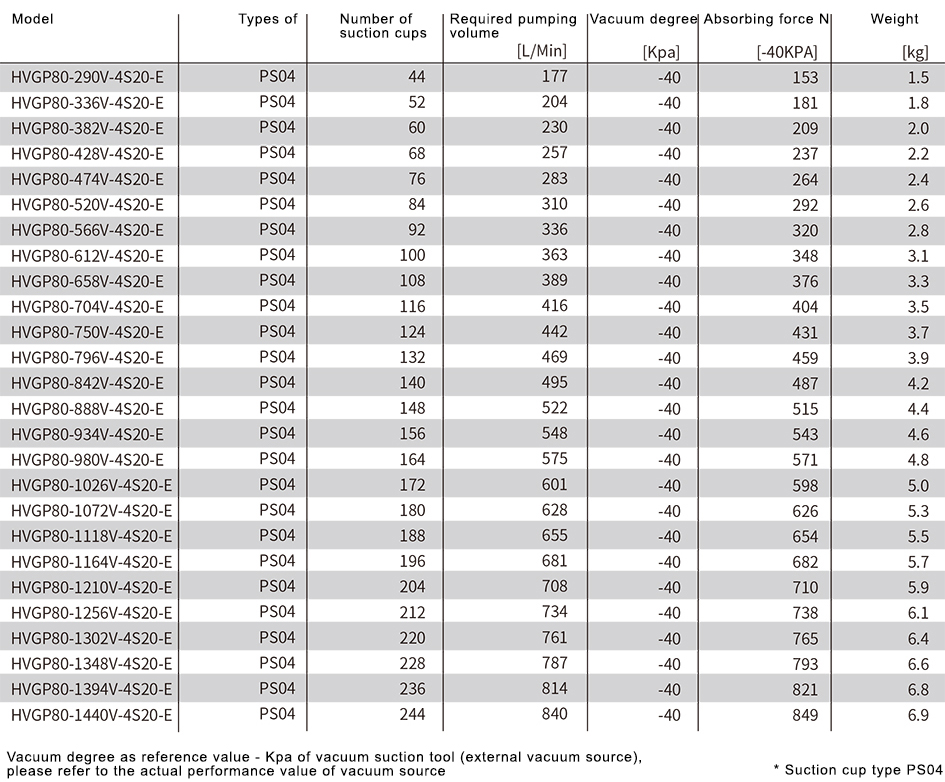

    Technical data

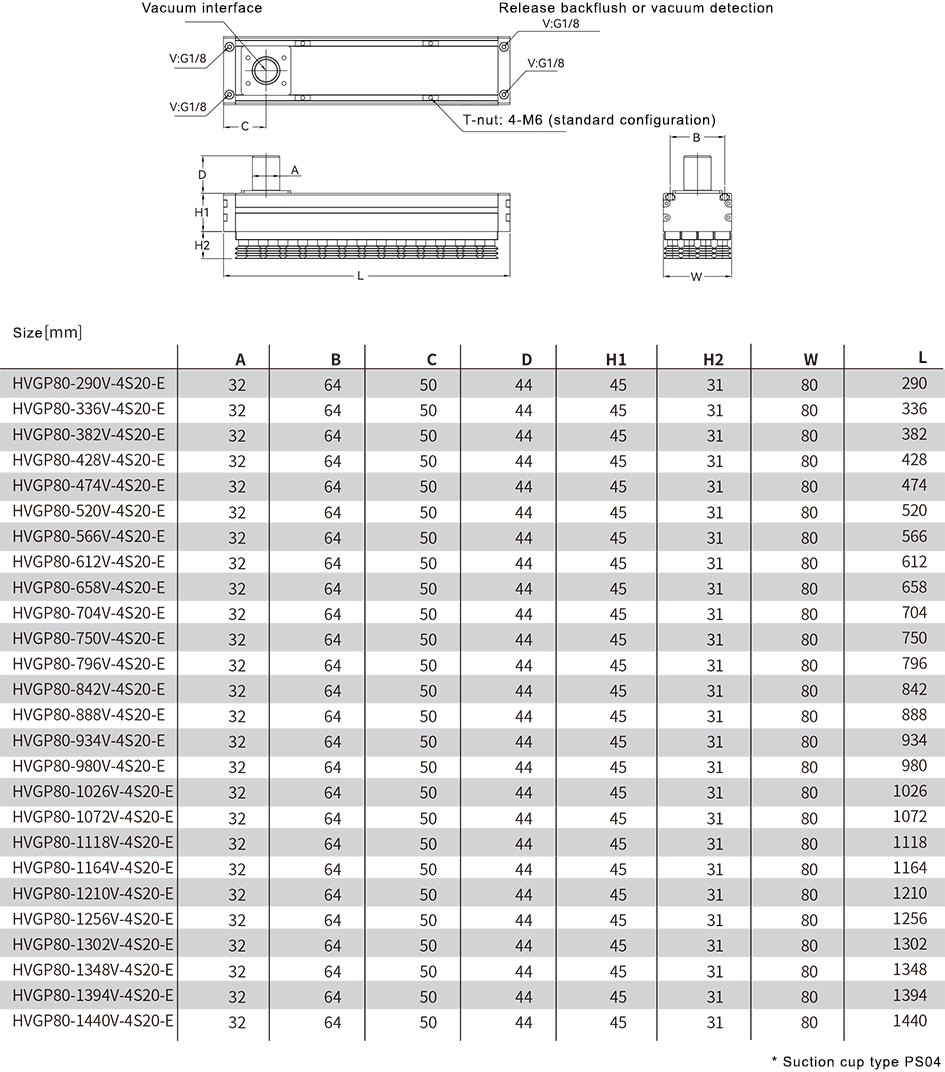

    Design data

Prev：HVGP60-SE
Next：HVGP130-SE
