  • EZK

  • *Integrated design, compact structure, lightweight.
    *A small, valve designed vacuum generator.
    *Suitable for industries such as electronics, precision instrument processing, automated assembly and handling.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Integrated design, compact structure, lightweight.
    A small, valve designed vacuum generator.
    Suitable for industries such as electronics, precision instrument processing, automated assembly and handling.

    Product mix
    (1) Establish a vacuum valve
    (2) Quick release valve
    (3) Inlet P: D6
    (4) LED display vacuum pressure switch
    (5) External muffler
    (6) Exhaust control valve
    (7) Vacuum port V: D8
    (8) Optional rail installation
    (9) Installation hole


    Product advantages
    Compact and durable unit; Can be directly installed on the handling system.
    Press in connector.
    Efficient and energy-saving nozzle technology.

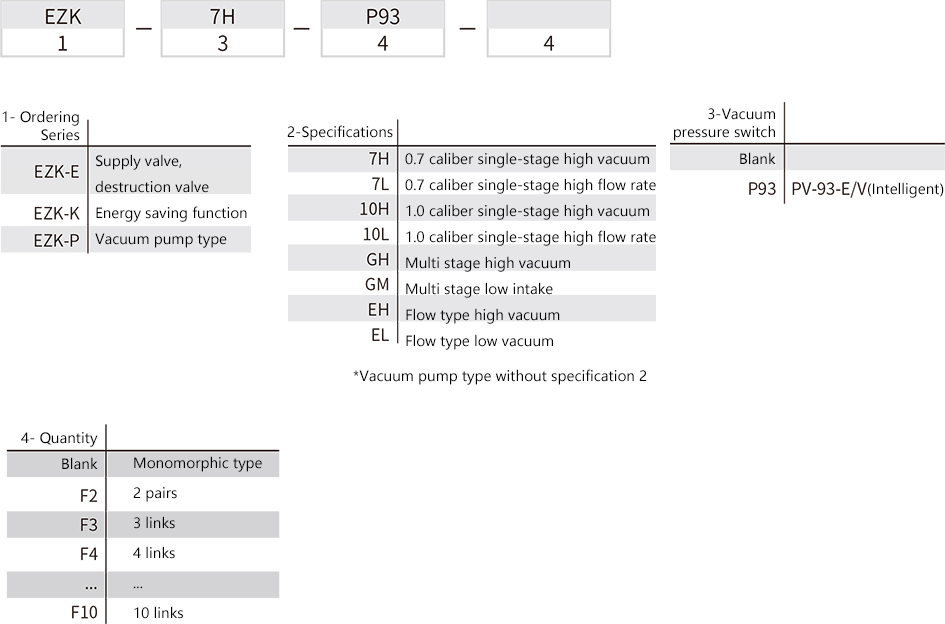

    Ordering no

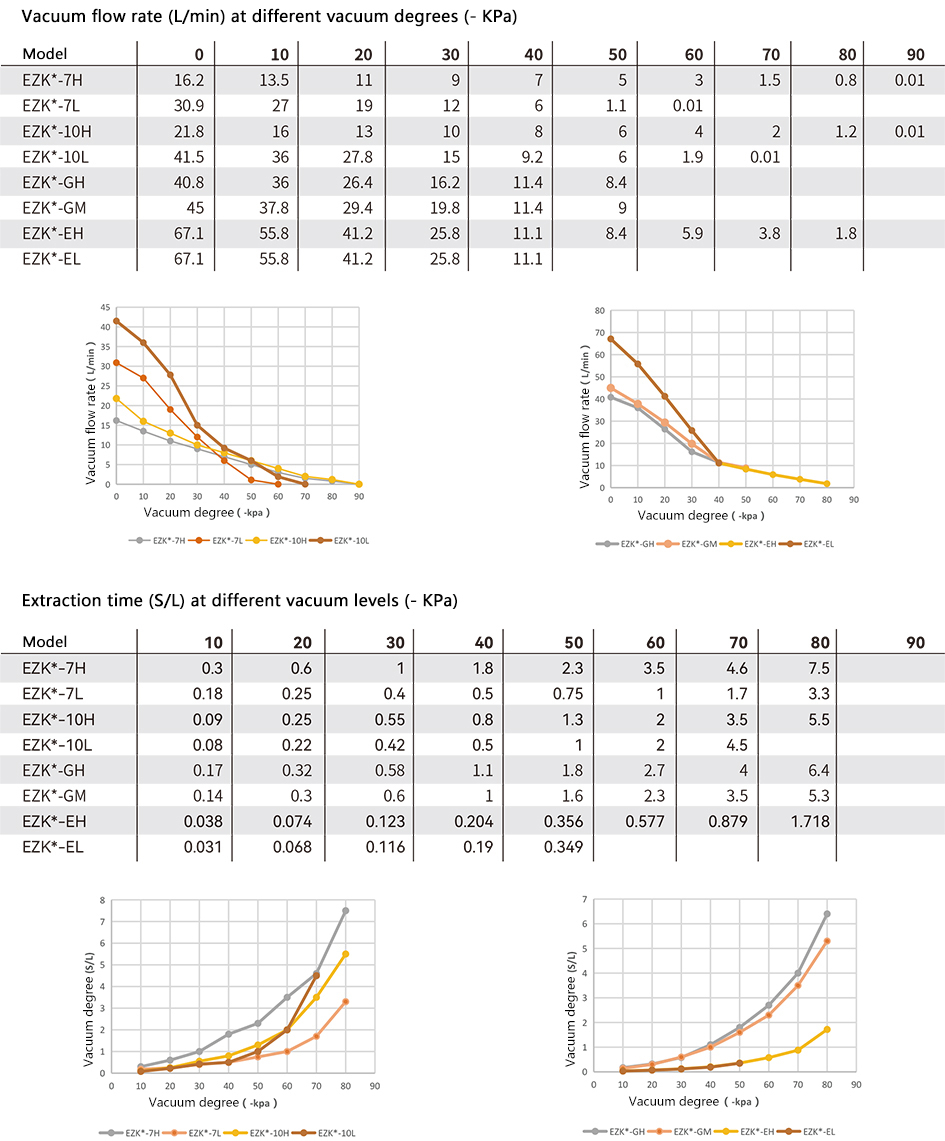

    Technical data

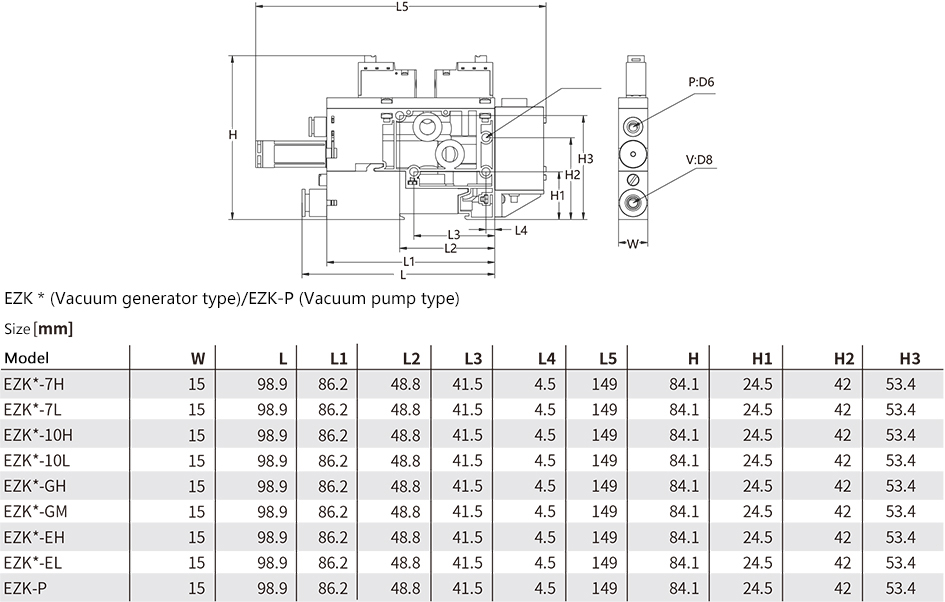

    Design data

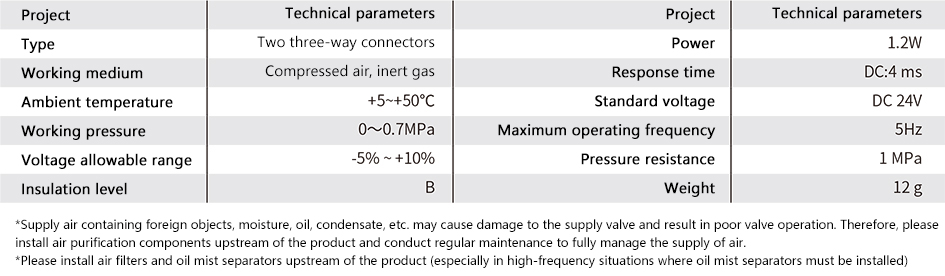

    Technical parameters of solenoid valve

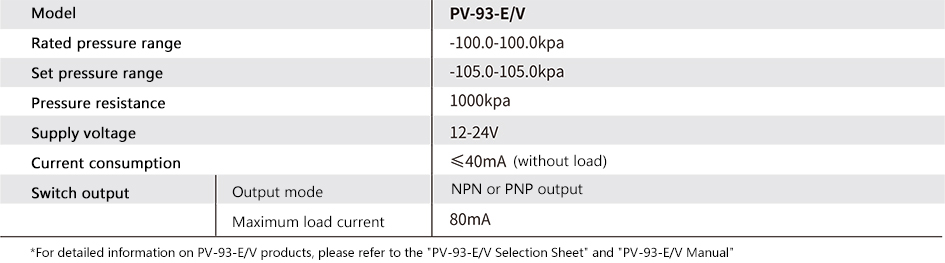

    Technical parameters of pressure switch

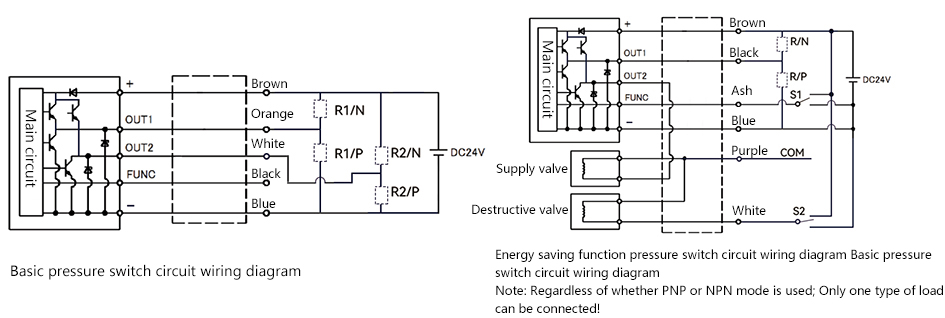

    Wiring diagram


    Pneumatic schematic diagram
