    Integrated design, compact structure, lightweight.
    A small, valve designed vacuum generator.
    Suitable for industries such as electronics, precision instrument processing, automated assembly and handling.

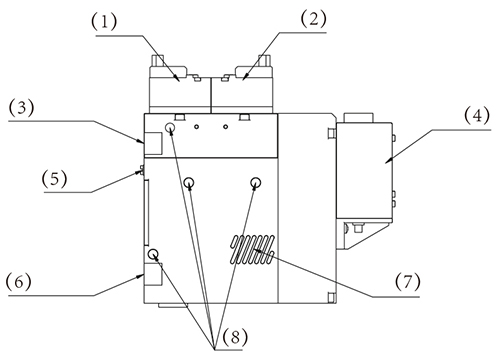

    Product mix
    (1) Quick release valve
    (2) Establish a vacuum valve
    (3) Inlet P: G1/8
    (4) LED display vacuum pressure switch
    (5) Exhaust control valve
    (6) Vacuum port V: G1/8
    (7) Silencing exhaust port
    (8) Installation hole

    Product advantages
    Compact and durable unit; Can be directly installed on the handling system.
    Press in connector.
    Efficient and energy-saving nozzle technology.

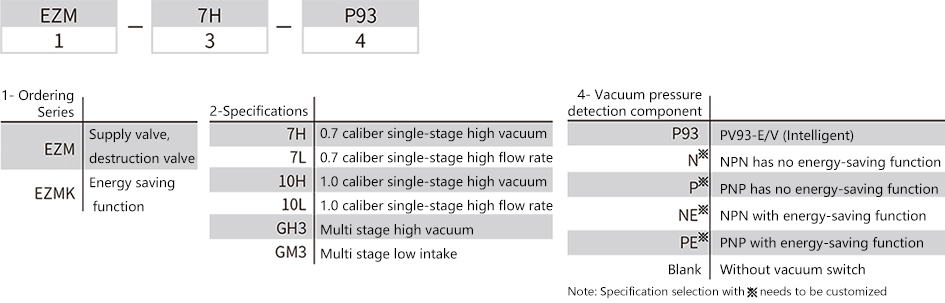

    Ordering no

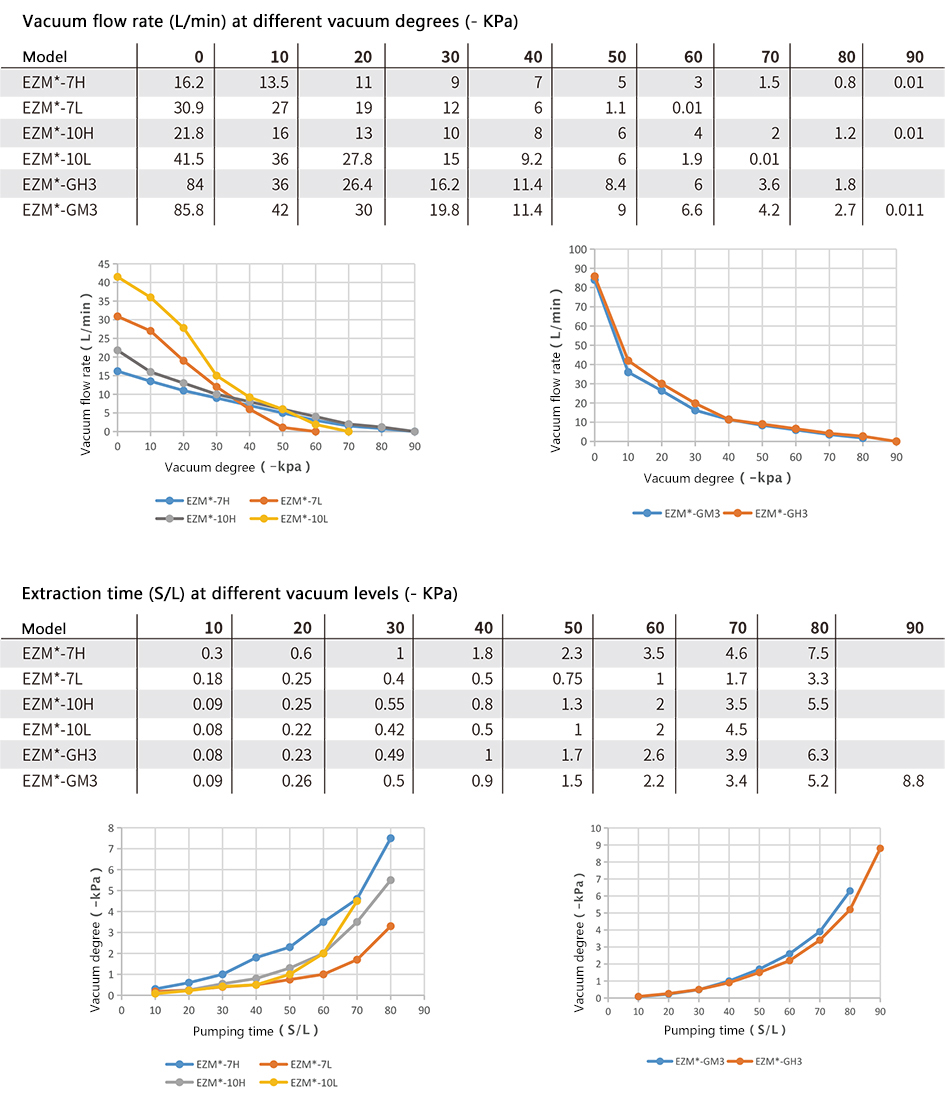

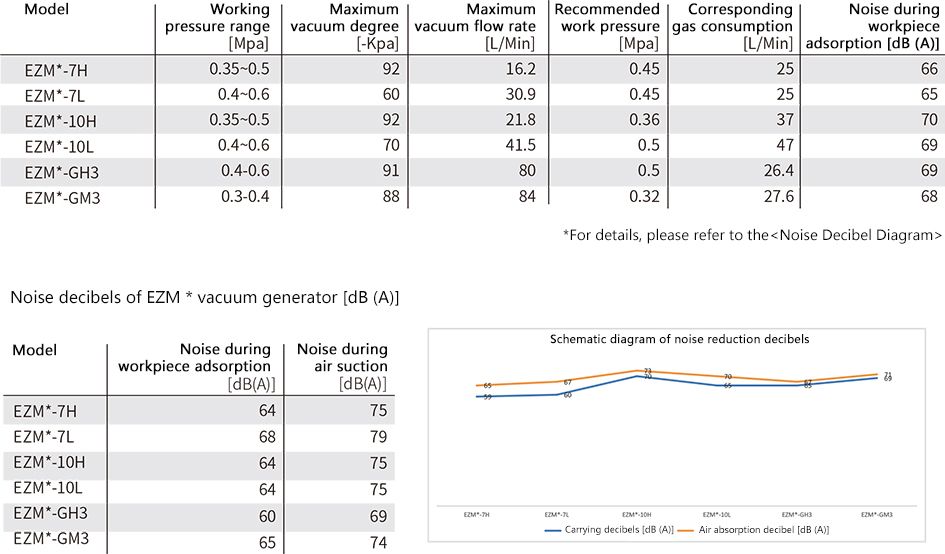

    Technical data

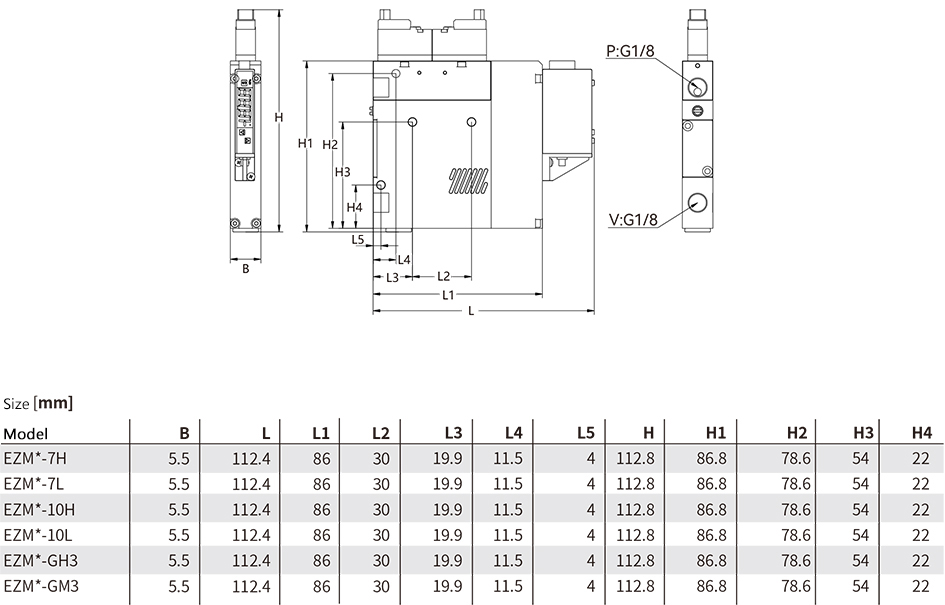

    Design data

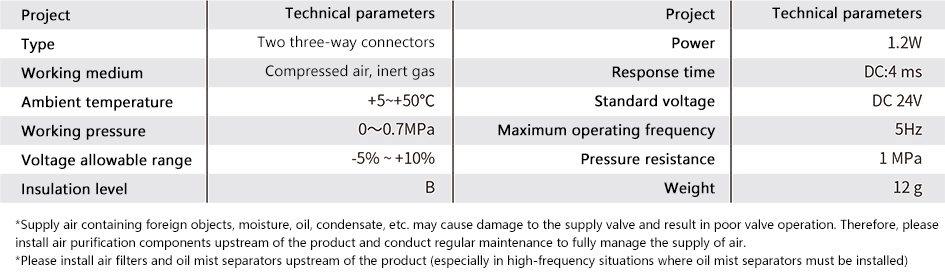

    Technical parameters of solenoid valve

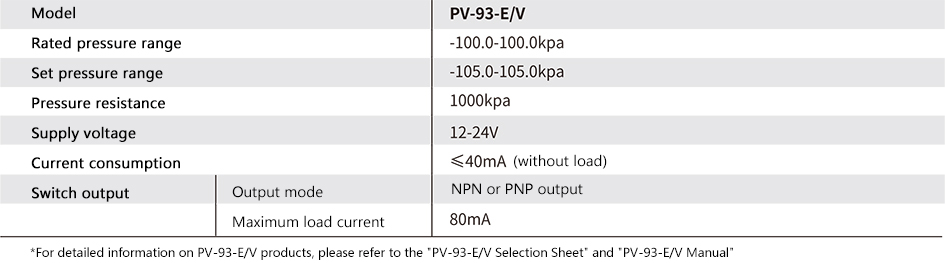

    Technical parameters of pressure switch

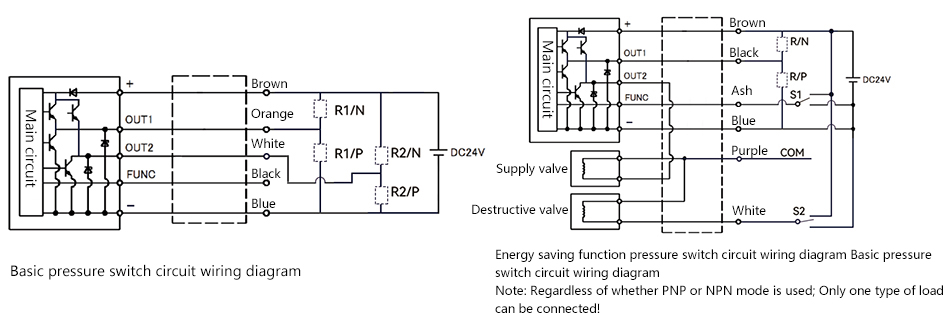

    Wiring diagram

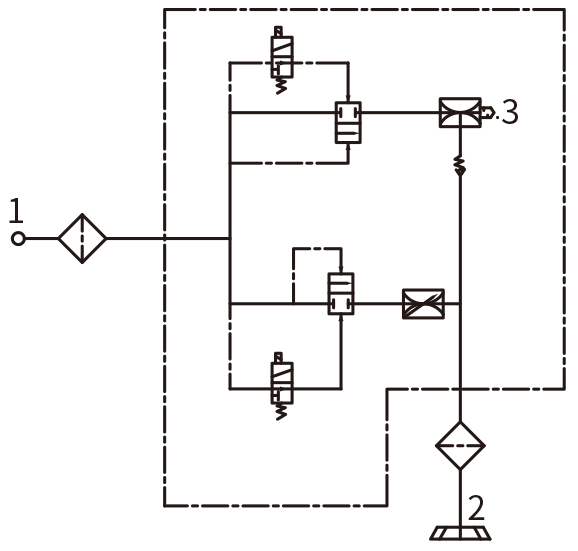

    Pneumatic schematic diagram
