  • Vacuum air valve body

  • * Used for adjustable vacuum line pressure.
    * Specification of one-sided pipelines.
    * Easy.
    * Built-in quick-change connector.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Used for adjustable vacuum line pressure.

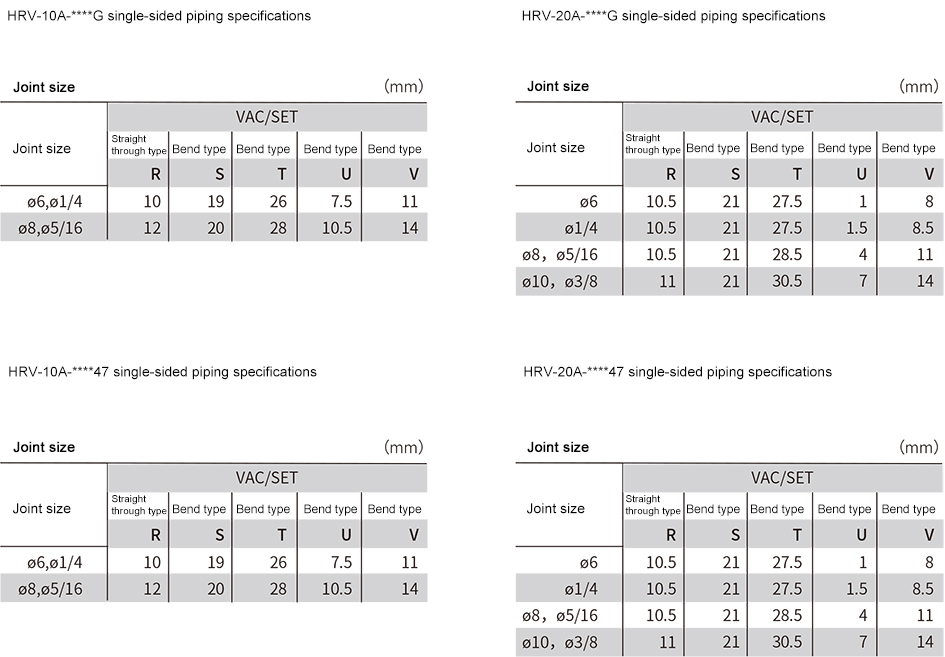

    Specification of one-sided pipelines.
    Easy.
    Built-in quick-change connector.
    Product mix
    (1) Hand wheel
    (2) Atmospheric suction valve cores
    (3) Adjusting springs
    (4) Vacuum chamber
    (5) Membrane components
    (6) Membrane
    (7) Valve shaft
    (8) Atmospheric chamber
    (9) Main valve core
    (10) Valve core assembly

    Product advantages
    The mounting clip facilitates the assembly/disassembly of pressure gauges or digital pressure switches.
    The installation direction of the manometer or digital pressure switch can be changed (limited to standard piping specifications).
    The mounting angle of manometers or digital pressure switches (with an installation position every 60) is easy to change.

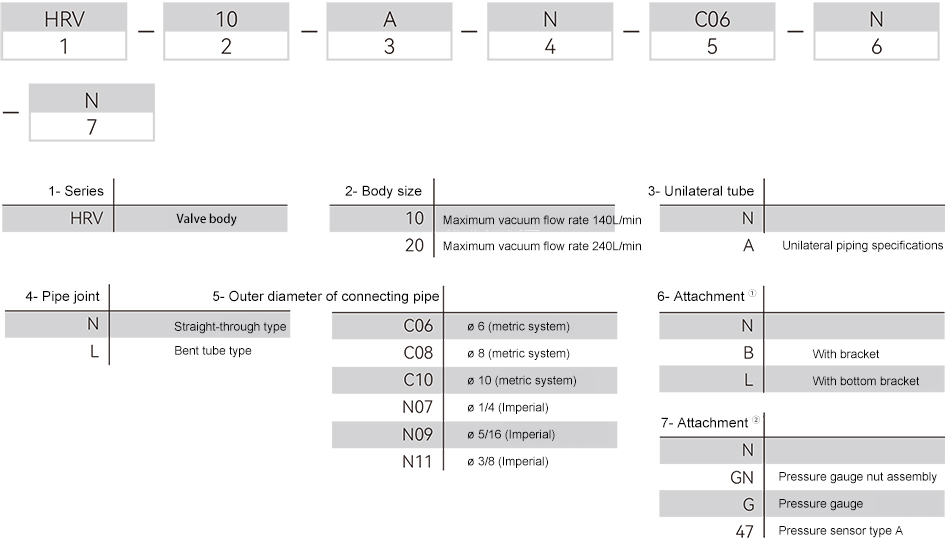

    Ordering no

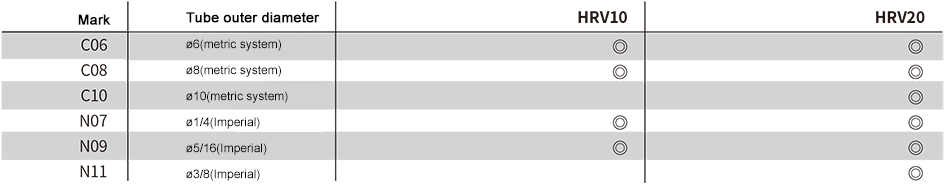

    Outer diameter of HRV connecting pipe for valve body

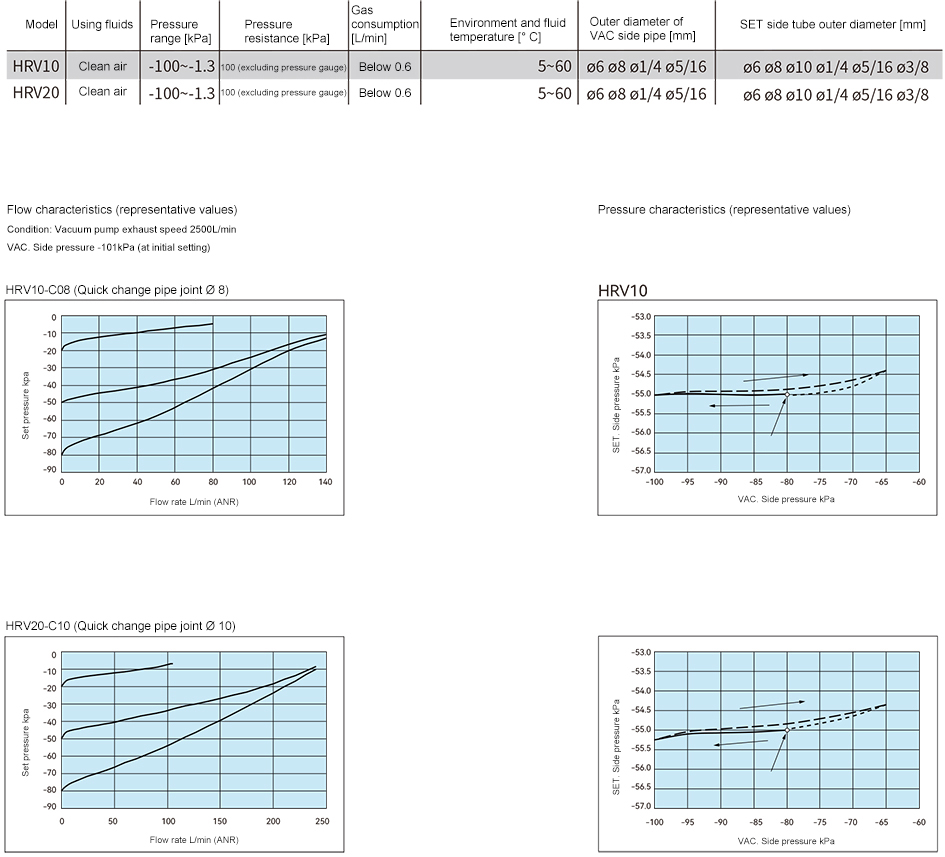

    Technical data

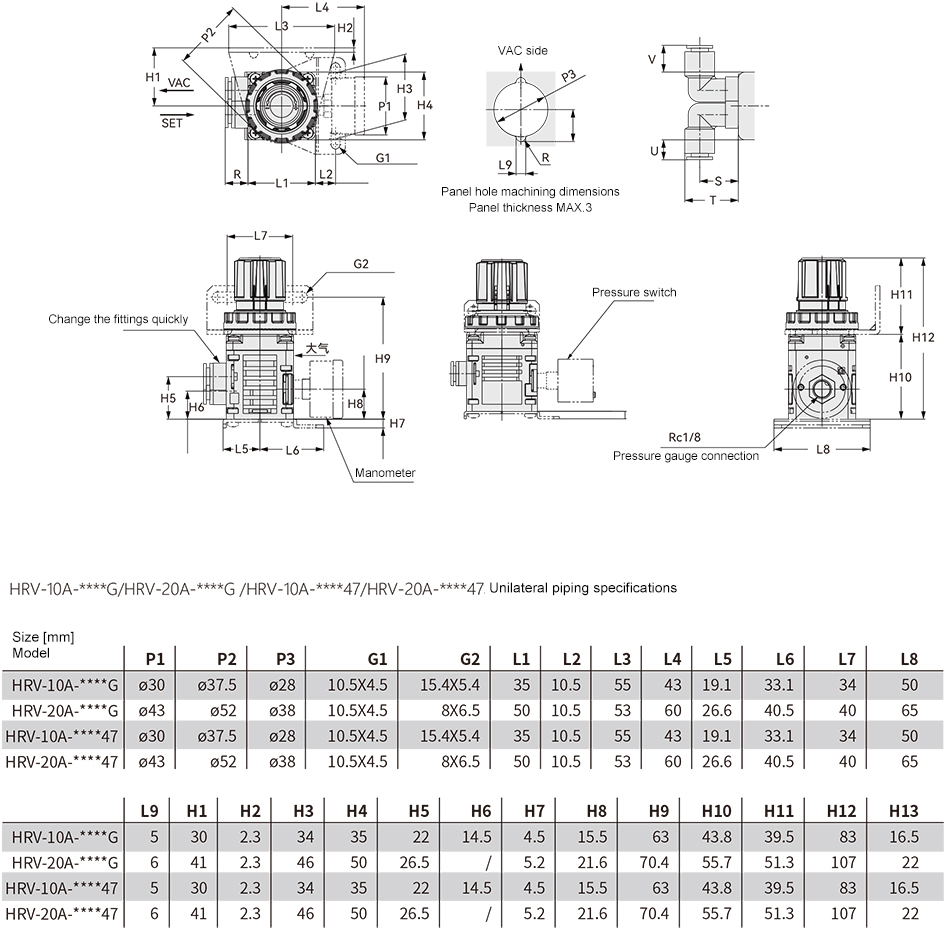

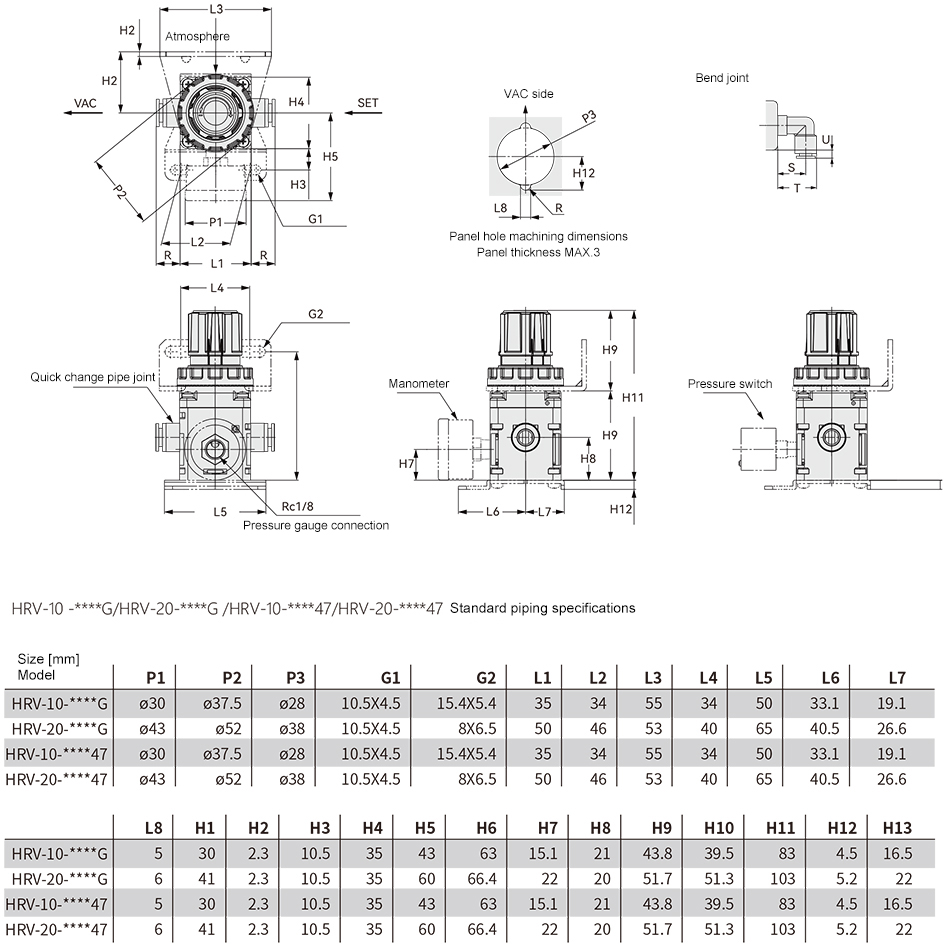

    Design data
