  • Filter pressure reducing valve

  • * The filter and pressure reducing valve form a separate device that can filter liquid oil, condensate and impurities in the air.
    * Even with system fluctuations in inlet pressure and compressed air consumption, the pressure reducing valve can ensure that the set operating pressure is very stable.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    The filter and pressure reducing valve form a separate device that can filter liquid oil, condensate and impurities in the air.
    Even with system fluctuations in inlet pressure and compressed air consumption, the pressure reducing valve can ensure that the set operating pressure is very stable.


    Manual dewatering
    Semi-automatic or fully automatic dewatering

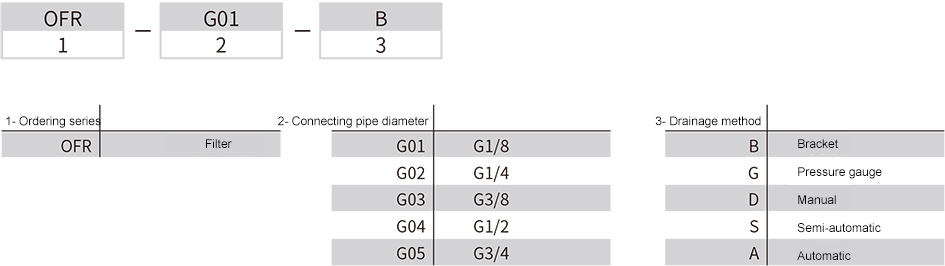

    Ordering no

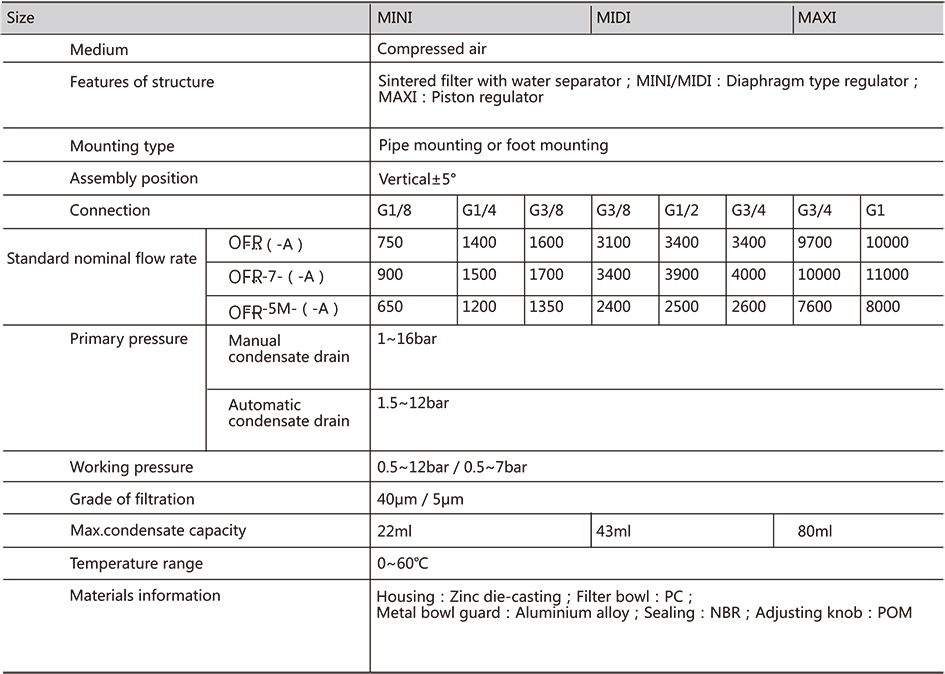

    Technical data

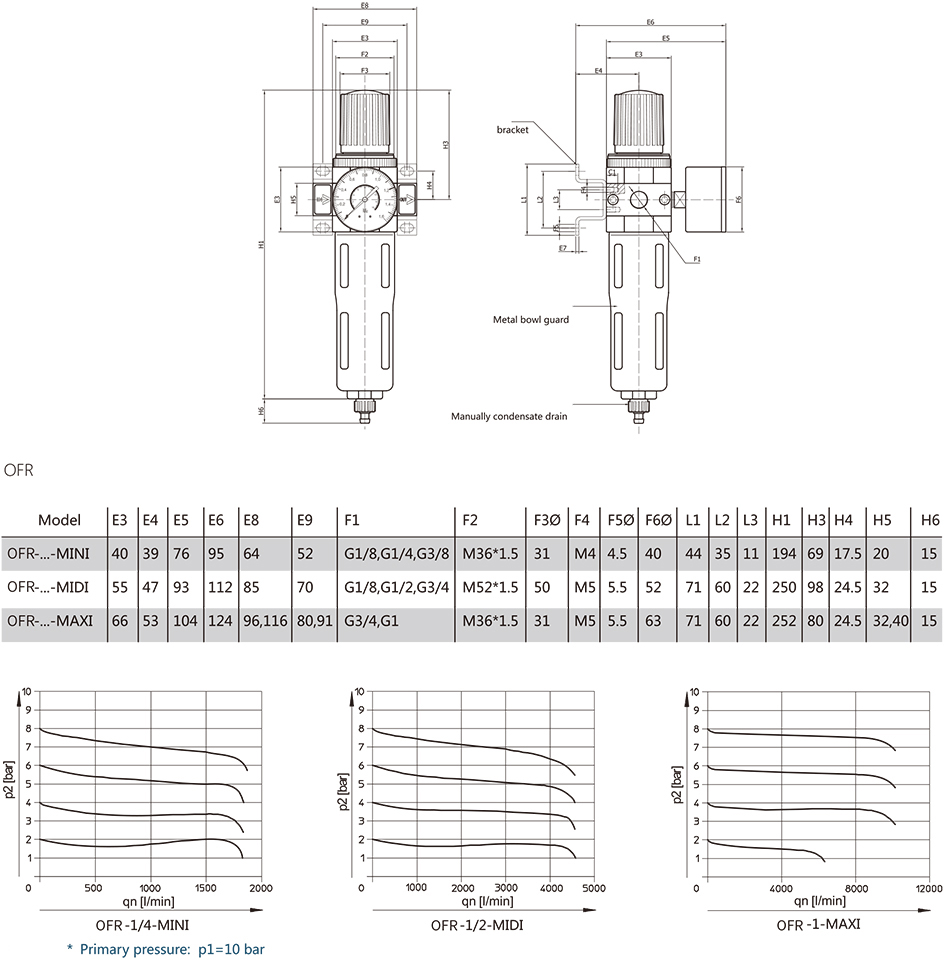

    Design data
