Product

  • HVG

  • * Compact and flexible design.
    * Use of high strength aluminium profiles.
    * By using hanwha's unique high efficiency valve body technology, it saves 50% of gas consumption.
    * Suitable for rough surfaces, leaks, deformations and irregular workpieces.
    * Rb is suitable for bag and foil packaging workers.
    * European original imported sealing sponge pads have a longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Compact and flexible design.
    Use of high strength aluminium profiles.
    By using hanwha's unique high efficiency valve body technology, it saves 50% of gas consumption.
    Suitable for rough surfaces, leaks, deformations and irregular workpieces.
    Rb is suitable for bag and foil packaging workers.
    European original imported sealing sponge pads have a longer service life.

    Product mix
    Main body: Made of aluminum alloy, small in size and light in weight.
    (1) Install screws: Tighten the screws and adjust them to remove the side wall.
    (2) Connection connection: compressed air inlet.
    (3) Connection connection: 2-way inlet (on both sides).
    (4) silencer: Made of anodized aluminium oxide.
    (5) Connection port: Vacuum detection port.
    (6) sponge pad: Imported sealed sponge pad.

    Product advantages
    Suitable for various occasions that require air bubbles and have a short working cycle, such as plastic plates, automotive industry, packaging machines and industrial robots.

    Sponge suction device HVGS suction compression film packaging

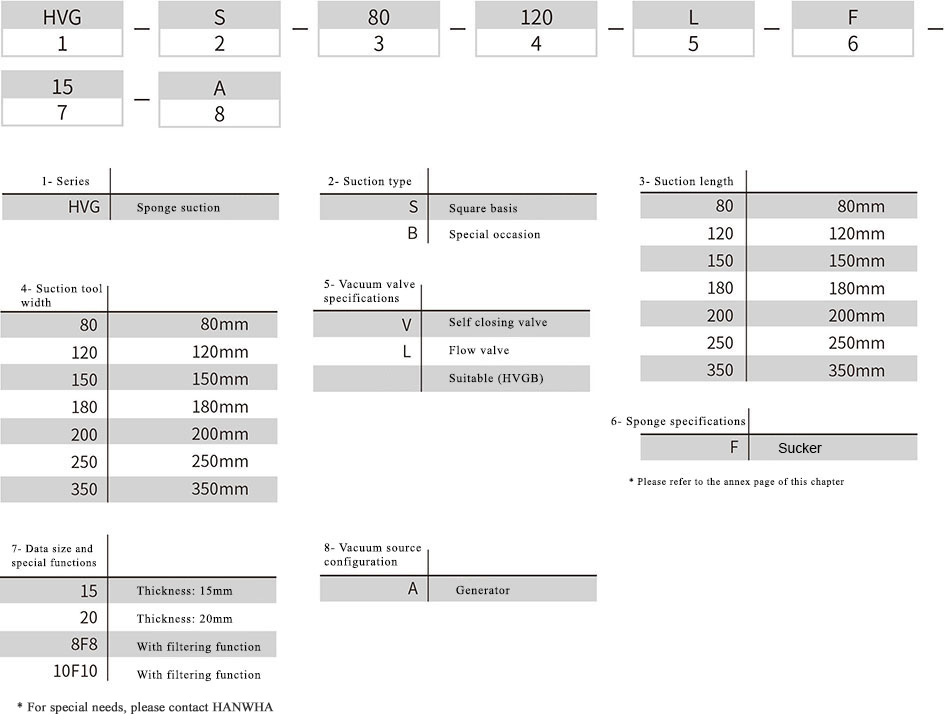

    Ordering no

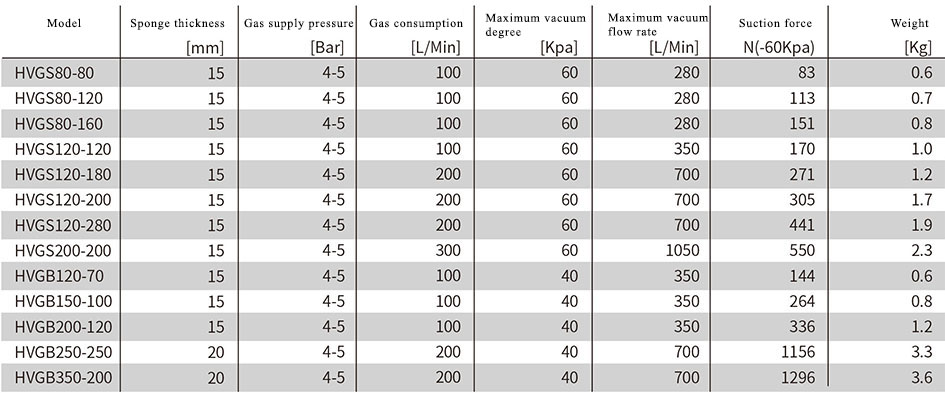

    Technical data

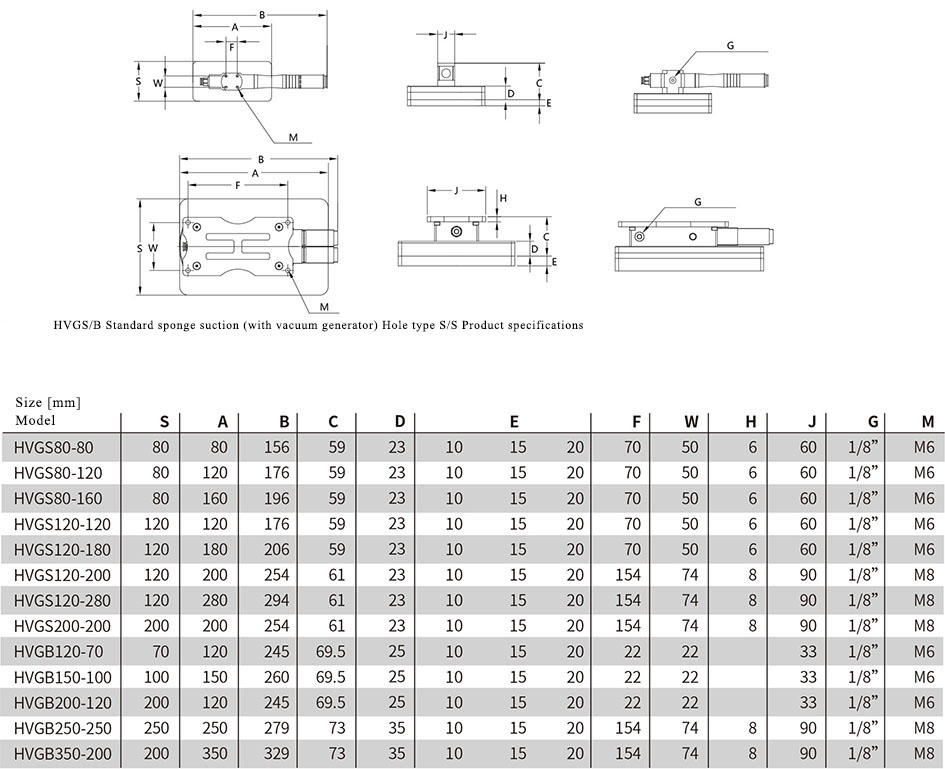

    Design data

Prev：HVGS
Next：HVG
