  • Vacuum pressure control valve

  • * Mechanically adjustable pressure relief valve.
    * A precise pressure control system supplies compressed air in a targeted manner.

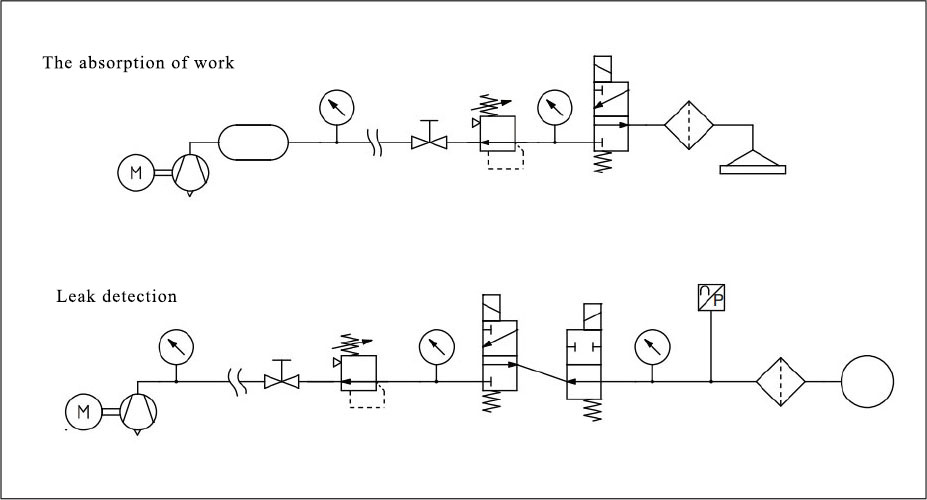

    * Used for detection and measurement, such as leak detection.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Mechanically adjustable pressure relief valve.
    A precise pressure control system supplies compressed air in a targeted manner.
    Used for detection and measurement, such as leak detection.

    Product mix
    Upper fastener (1)
    Fittings for valve bodies (2)
    Subject (3)
    Fixed mother (4)
    G3/8 quick change tube connection (5)

    Product advantages
    Mechanical adjustment has an extremely high repeatability
    The setpoint can maintain an extremely high accuracy
    Can be installed in any position

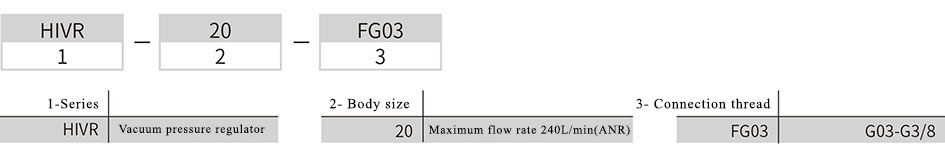

    Ordering no

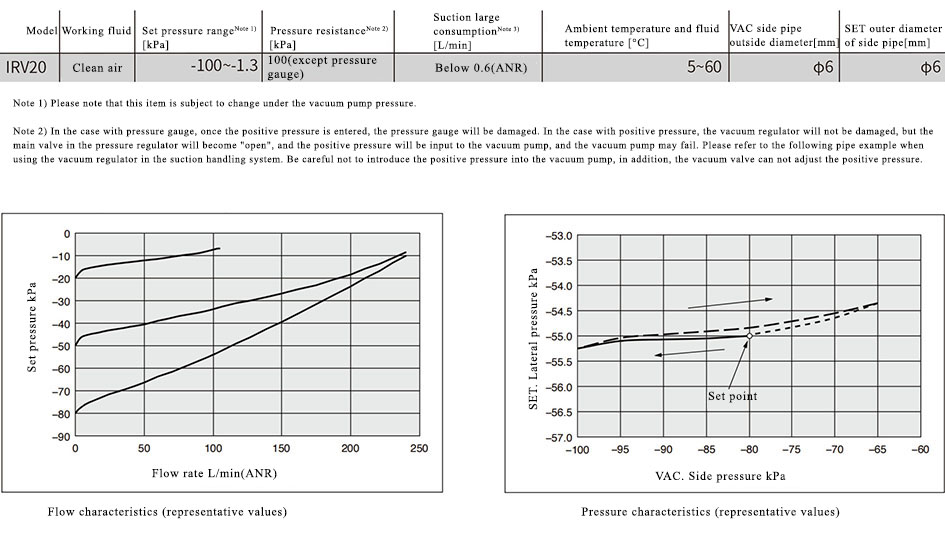

    Technical data

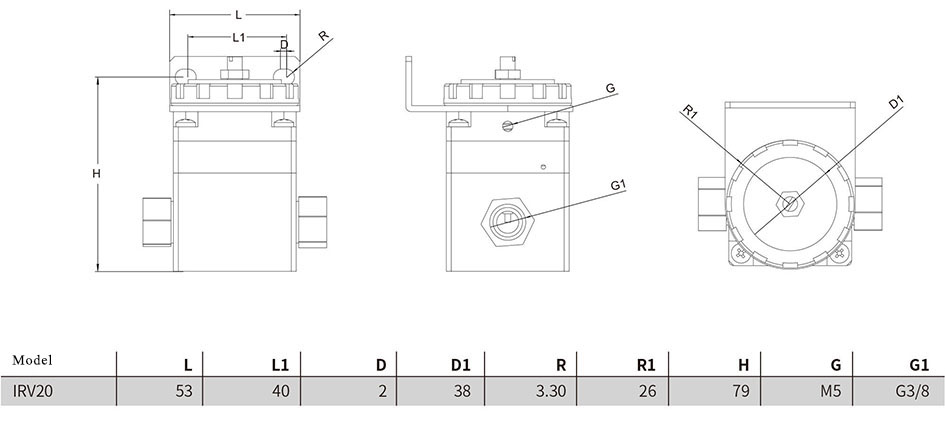

    Design data

Prev：Valve body (joint)
Next：Series 37 type a pressure sensor
