• Flat suction cup

  • * Lightweight high-speed suction cup with high clamping and shear forces, capable of quickly handling metal plates and body parts.
    * Handle workpieces with oily surfaces.
    * Loading and unloading CNC metal and laser cutting machines.
    * Used for empty material handling in the unpacking machine.
    * Handle workpieces with convex surfaces.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Product features
    The suction cup has a large stroke and good flexibility.
    Lightweight design of molds is an ideal choice for high-speed applications.
    The top of the suction cup has reinforcing ribs and a large area of internal support structure.
    Modular design, each component can be separated and quickly replaced.
    Complete size specifications.

    Product advantages
    Easy to fit workpieces with different surface shapes.
    Ultra long lifespan, as well as its wear resistance, ozone resistance, and oil resistance, effectively enhance the lateral friction force when gripping workpieces.
    Each component can be recycled.
    Suitable for workpieces of various sizes and shapes.

    Example of HXF suction cup handling oily workpiece surface


    Product mix

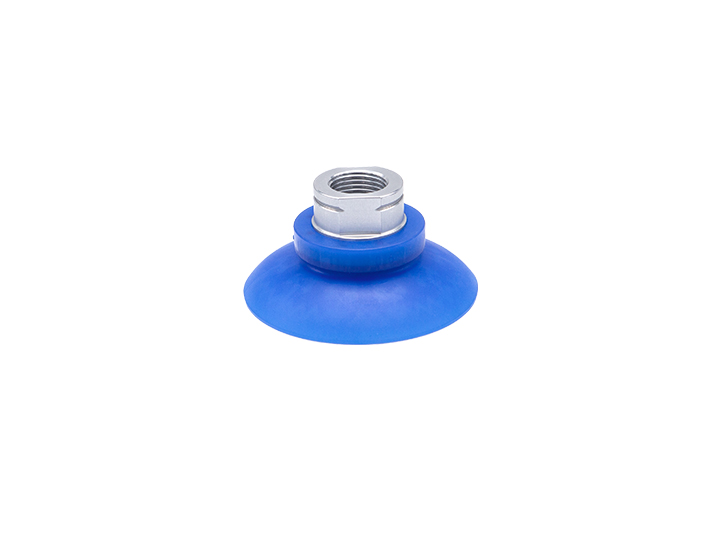

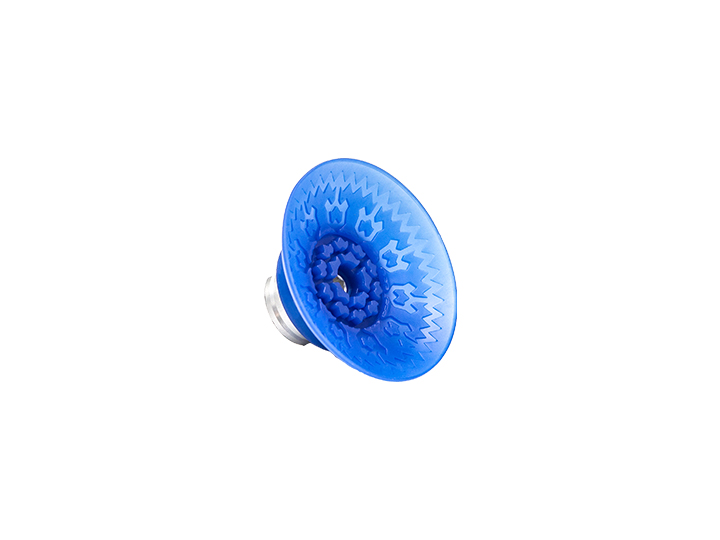

    Lightweight round bell shaped suction cup with flexible sealing lip and optimal internal structure (3)
    Elastic wear-resistant material for suction cups (HX)
    Vulcanized joint made of reinforced plastic (high-strength) (1)
    Key surface, easy and fast installation (2)
    Can be provided as an assembled suction cup with various connection types
    Ordering no

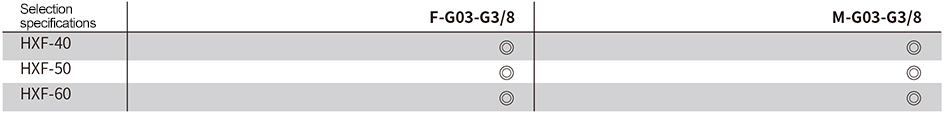

    Model selection

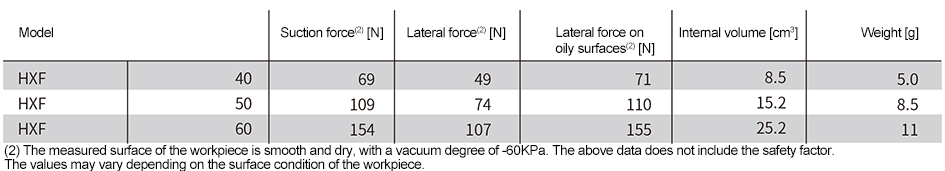

    Technical data

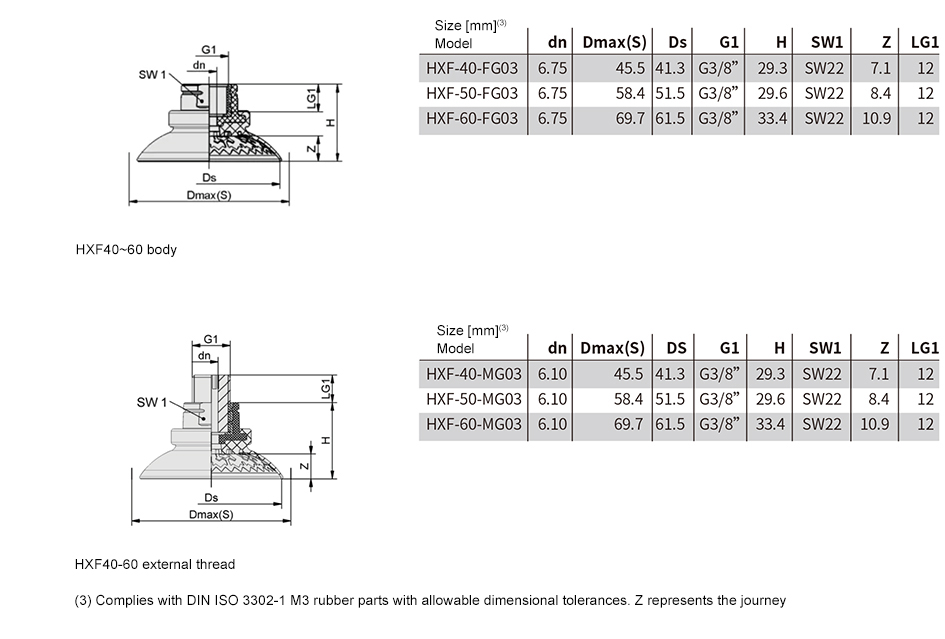

    Design data
