  • HVGP200-FA

  • * Medium sized standardized design.
    * Convenient and simple maintenance.
    * Adopting lightweight and tough high-strength aluminum profiles.
    * Design of external vacuum source.
    * Adopting HANWHA's unique valve body technology.
    * Different pass techniques are suitable for a wider range of workpiece applications.
    * Original imported sealed sponge pads from Europe, with longer service life.

    Contact: +491727628103

  • Introduce
  • Design
  • Parameter
    Handling rigid workpieces.

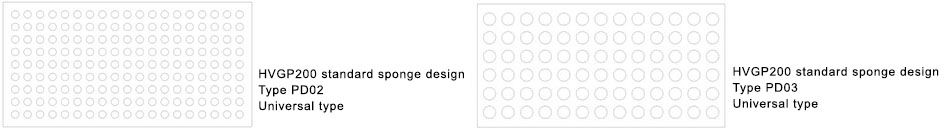

    Standard sponges are used for handling wooden boards, pallets, aluminum profiles, and patterned steel plates.
    Different sealing pads can absorb and transport different types of workpieces.

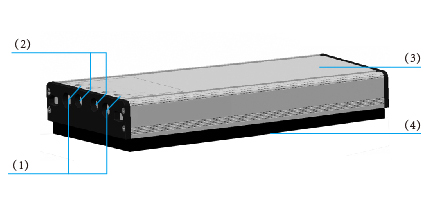

    Product mix
    (1) P: G1/4 screw thread, air inlet
    (2) V: G1/8 screw thread, back blowing/vacuum detection
    (3) Aluminum profiles, customizable
    (4) Various imported sponge types can be customized

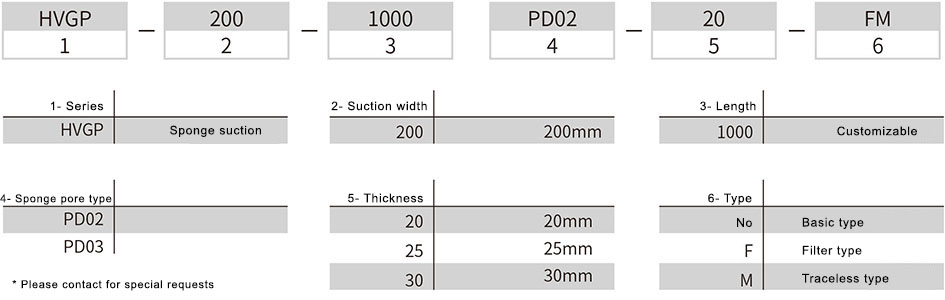

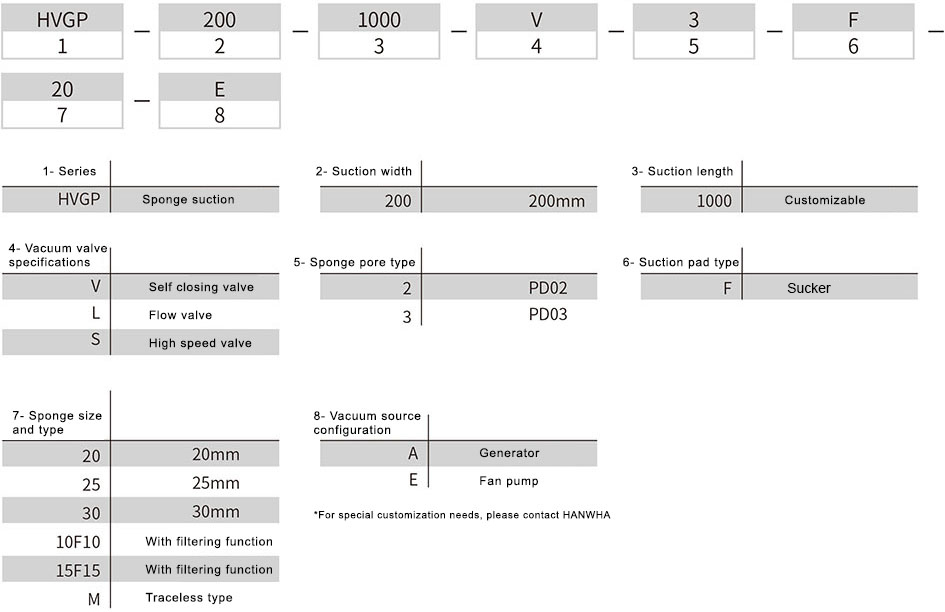

    Ordering no

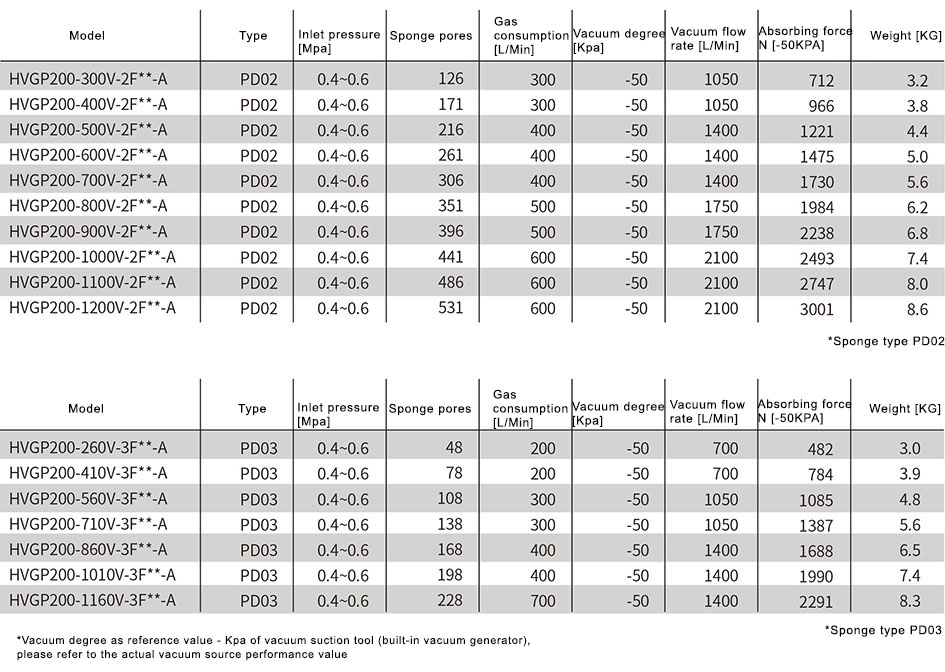

    Technical data

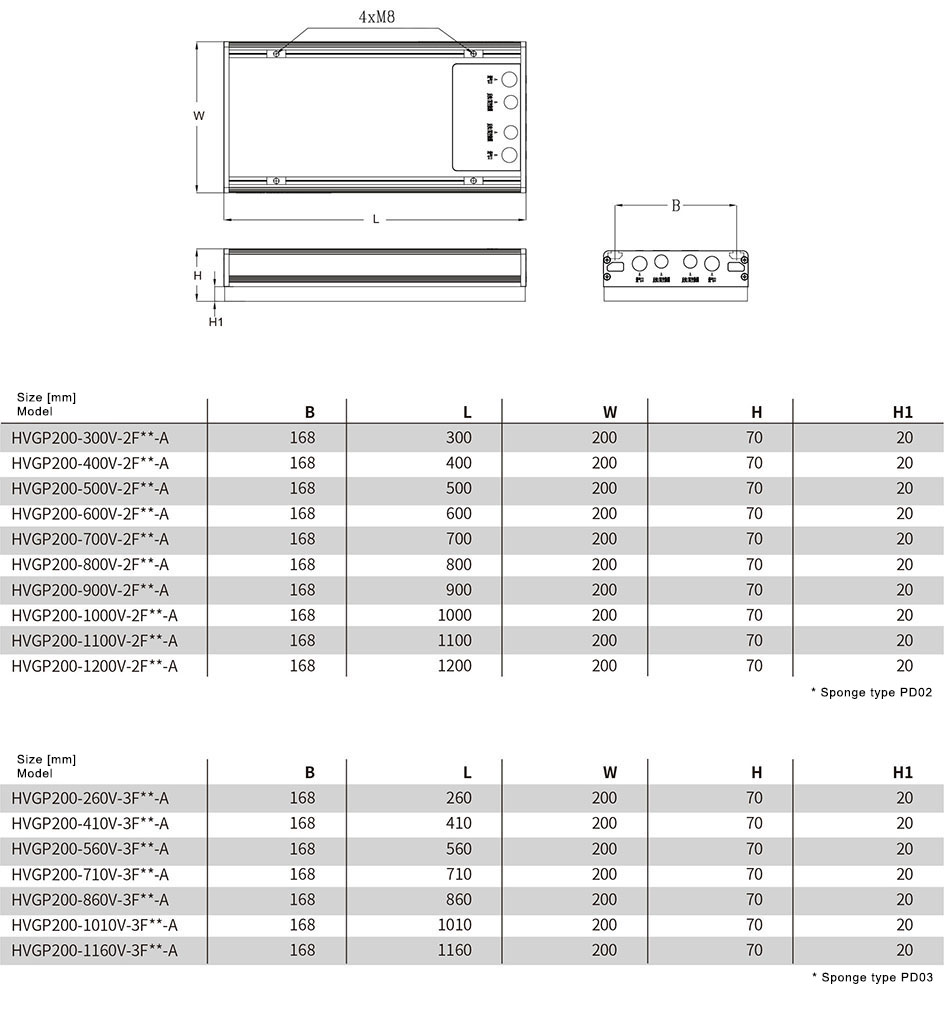

    Design data
