• HVGP200-SA

  • *Medium sized standardized design.
    *Convenient and simple maintenance.
    *Adopting lightweight and tough high-strength aluminum profiles.
    *Built-in multi-stage vacuum generator module.

    Kontakte: +491727628103

  • Einführung
  • Design
  • Parameter
    Adopting HANWHA's unique valve body technology.

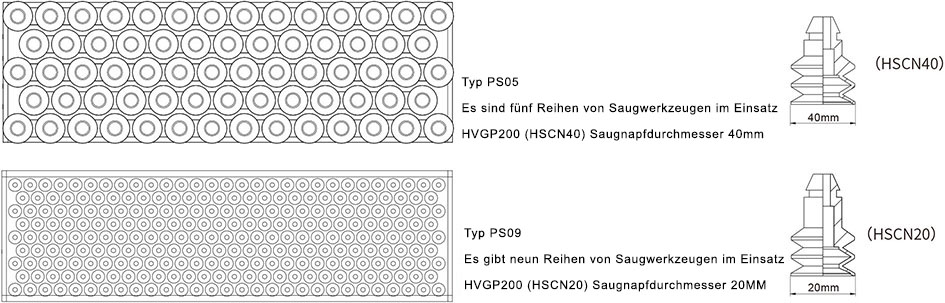

    Different suction cup specifications are suitable for a wider range of workpiece applications.
    High performance imported materials with longer service life.
    Suitable for corrugated cardboard, plywood, iron sheet, and other general workpieces.
    Produktmix

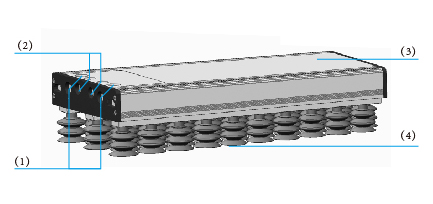

    (1) P: G1/4 screw thread, air inlet
    (2) V: G1/8 screw thread, back blowing/vacuum detection
    (3) Aluminum profiles, customizable
    (4) The sturdy and wear-resistant 25 fold suction cup is made of flexible and flexible material, making it easy to fit the workpiece
    Bestellnummer



    Auswahlspezifikationen

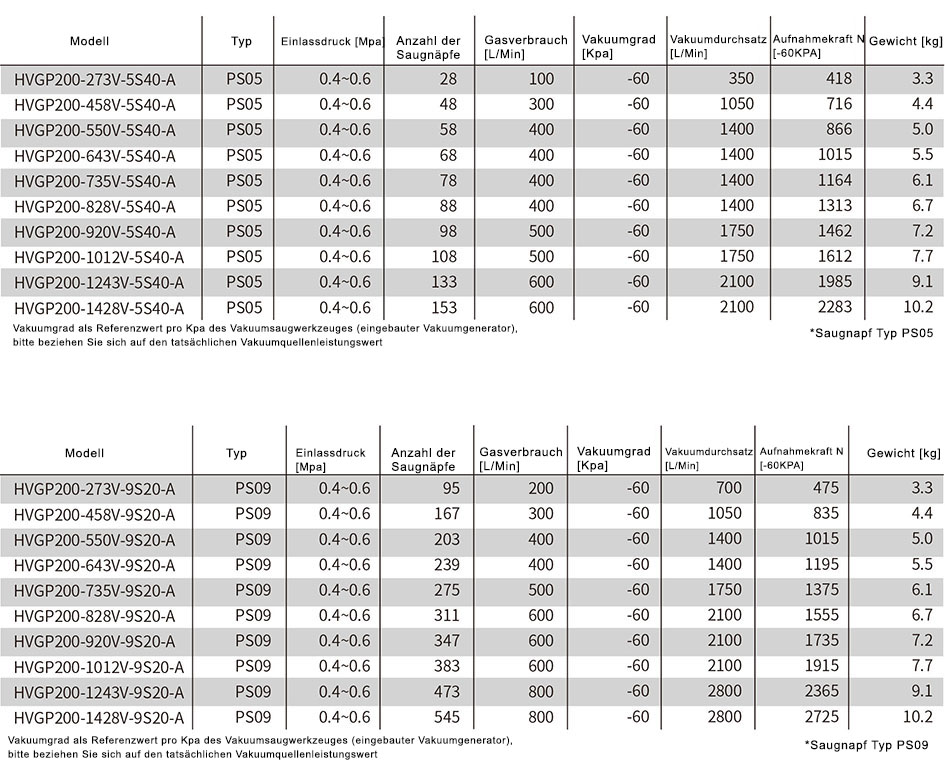

    Technische daten

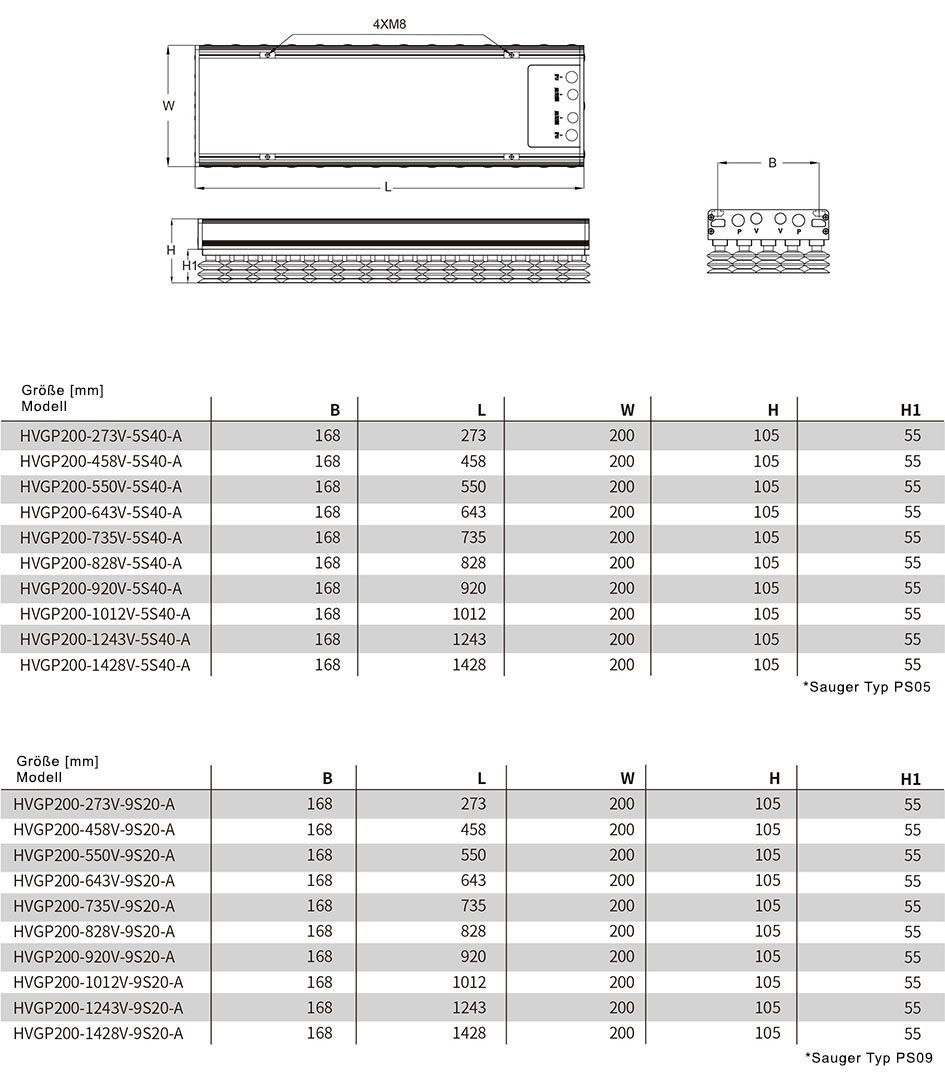

    Bemessungsparameter
